10-Port Layer 2+ Managed PoE Switch
DrayTek VigorSwitch P2100 is a compact Layer 2+ Managed Gigabit PoE switch well-suited for smart home and branch/remote sites. It has 2x GbE SFP ports, 8x Gigabit Ethernet PoE/PoE+ ports with power budget of 140 watts, and 1x console port. Featuring Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch P2100 improves local network sustainability and efficiency regardless of the gateway. Furthermore with IP Conflict Detection & Prevention, ONVIF Surveillance, ping watchdog and a lot more, this is the balanced switch that brings advanced features into small environments.
Overview
8x PoE GbE
PoE/PoE+ Gigabit Ethernet Ports
2x SFP
Gigabit SFP slot
140 watts
PoE Power Budget
20 Gbps
Switching Capacity
1Power Socket
2LED Indicator
38x PoE/PoE+ Gigabit Ethernet
4Console Port
52x SFP Port
6Reset Button
ONVIF-Friendly
Recognizes ONVIF devices across different VLANs, displays the surveillance topology, and provides an interface for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices and displays the topology of connected IP cameras and NVRs.
Images Viewing
You can view IP camera video directly on the VigorSwitch.
Device Management
Perform basic configuration and maintenance of ONVIF devices remotely through VigorSwitch, such as remote reboot, factory reset and network settings.
ONVIF Snapshot Alert
Monitor. Detect. Recover.
VigorSwitch automatically monitors ONVIF cameras and alerts you when a camera becomes unavailable.
The latest snapshot helps you quickly identify the affected location, and PoE auto recovery can restore camera operation automatically.
Key Benefits
- Snapshot Alerts
- Camera Monitoring
- Auto Recovery
- Faster Response
- Reduced Downtime

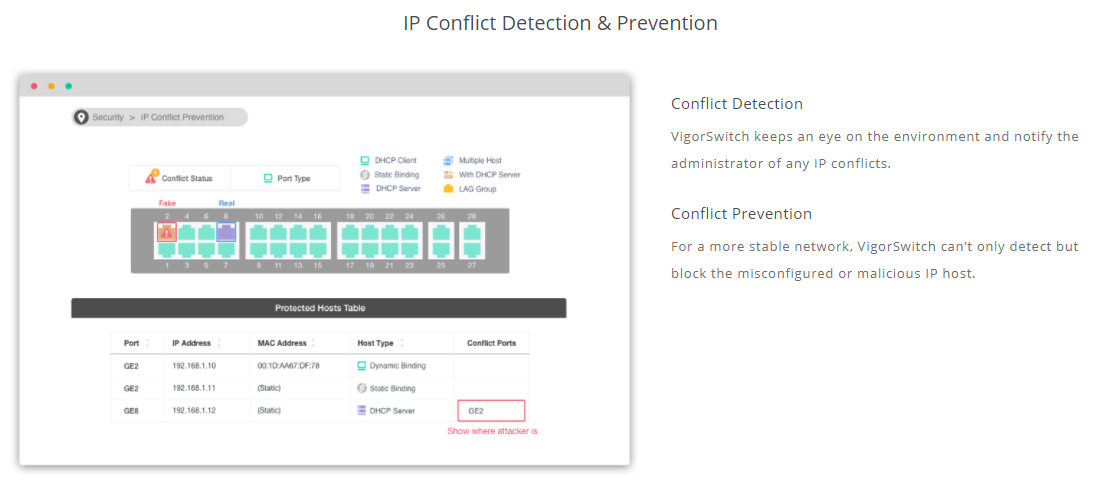

IP Conflict Detection & Prevention
Conflict Detection
VigorSwitch monitors the network and notifies the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can not only detect but also block misconfigured or malicious IP hosts.
LAN Management
An all-in-one platform for managing Vigor devices on the LAN.
Automatic Device Discovery
Simply connect the Vigor Switch/AP to the LAN side of the router, and the Vigor Router will discover the devices to be managed.
Provisioning
Switch profiles, including VLAN, port enable/disable and rate limit settings, can be configured on the Vigor Router and provisioned to the VigorSwitch.
Monitoring
Vigor Router provides a centralized, hierarchical view of managed devices. When an alert occurs, you receive a notification and can check the log.
System Maintenance
You can perform a factory reset, save or restore a configuration backup, or trigger a remote reboot directly from the Vigor Router, with no need to log in to each device’s management page.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Remote PoE Device Reboot, Quick VLAN Configuration
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report
VigorConnect
- AP/Switch Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch Maintenance
- Scheduled Maintenance
In the Box
VigorSwitch P2100
Rack Mount Kit
(brackets)
Console Cable
Power Cord
Quick Start Guide
Related Products
Note: Stated throughput figures are maximums from DrayTek internal testing under optimal conditions, with Hardware Acceleration enabled where available. Actual performance may vary depending on network conditions and the applications in use.
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
IPv6 Ready
VigorSwitch P2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2100 to route the inter-VLAN traffic directly and offload the router.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Access Control
VigorSwitch P2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
LLDP-MED
Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic for smoother VoIP deployment.
Specs
Performance | |
| Buffer Size (Mbit) | 4.1 |
| Switching Capacity (Gbps) | 20 |
| Forwarding Rate (64 bytes)(Mpps) | 14.88 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
| L3 Routing Table | ✓ |
Ports | |
| 1 GbE | 8 |
| SFP (1G) | 2 |
| Console (RJ-45) | 1 |
PoE | |
| PoE+(802.3af/at) Ports | 8 |
| PoE Power Budget (watts) | 140 |
| Scheduled On/Off | ✓ |
Standard Compliance | |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
Spanning Tree | |
| STP | ✓ |
| RSTP | ✓ |
| MSTP | ✓ |
Link Aggregation | |
| Max. Number of Group | 4 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | ✓ |
VLAN | |
| Max. Number of VLAN | 512 |
| VLAN Type | 802.1q Tag-based VLAN MAC-based VLAN Protocol-based VLAN Management VLAN Voice VLAN Surveillance VLAN |
| GVRP | ✓ |
| QinQ (Basic) | ✓ |
Layer3 Features | |
| Static Route | ✓ |
| VLAN Route | ✓ |
| DHCP Server | ✓ |
Multicast | |
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | ✓ |
| MVR (Multicast VLAN Registration) | ✓ |
ONVIF Surveillance | |
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance | Device Info Network Settings Time Settings Reboot Reset to Factory Default |
QoS | |
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) | CoS DSCP CoS-DSCP IP Precedence |
| Rate Limiting | ✓ |
Security | |
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | ✓ |
| IP Source Guard | ✓ |
| Traffic Control | Storm Control, DoS Defense |
| Dynamic ARP Inspection (DAI) | ✓ |
| DHCP Snooping | ✓ |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
Management | |
| Local Service | HTTP HTTPS Telnet SSH v2 |
| Config Backup/Restore | ✓ |
| Dual Image | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| LLDP-MED | ✓ |
| Mail Alert | Port Status Port Speed System Restart IP Conflict Hardware Monitor Device Check ONVIF IP Cam Snapshot |
| VigorRouter Management (SWM) | ✓ |
| VigorConnect Management (Since f/w) | V2.6.5 |
| VigorACS Management (Since f/w) | V2.6.5 |
Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 2.6A |
| Max. Power Consumption (watts) | 164.3 |
| Dimension (mm) | 319 x 208 x 45 |
| Weight (g) | 2610 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
Note:
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
