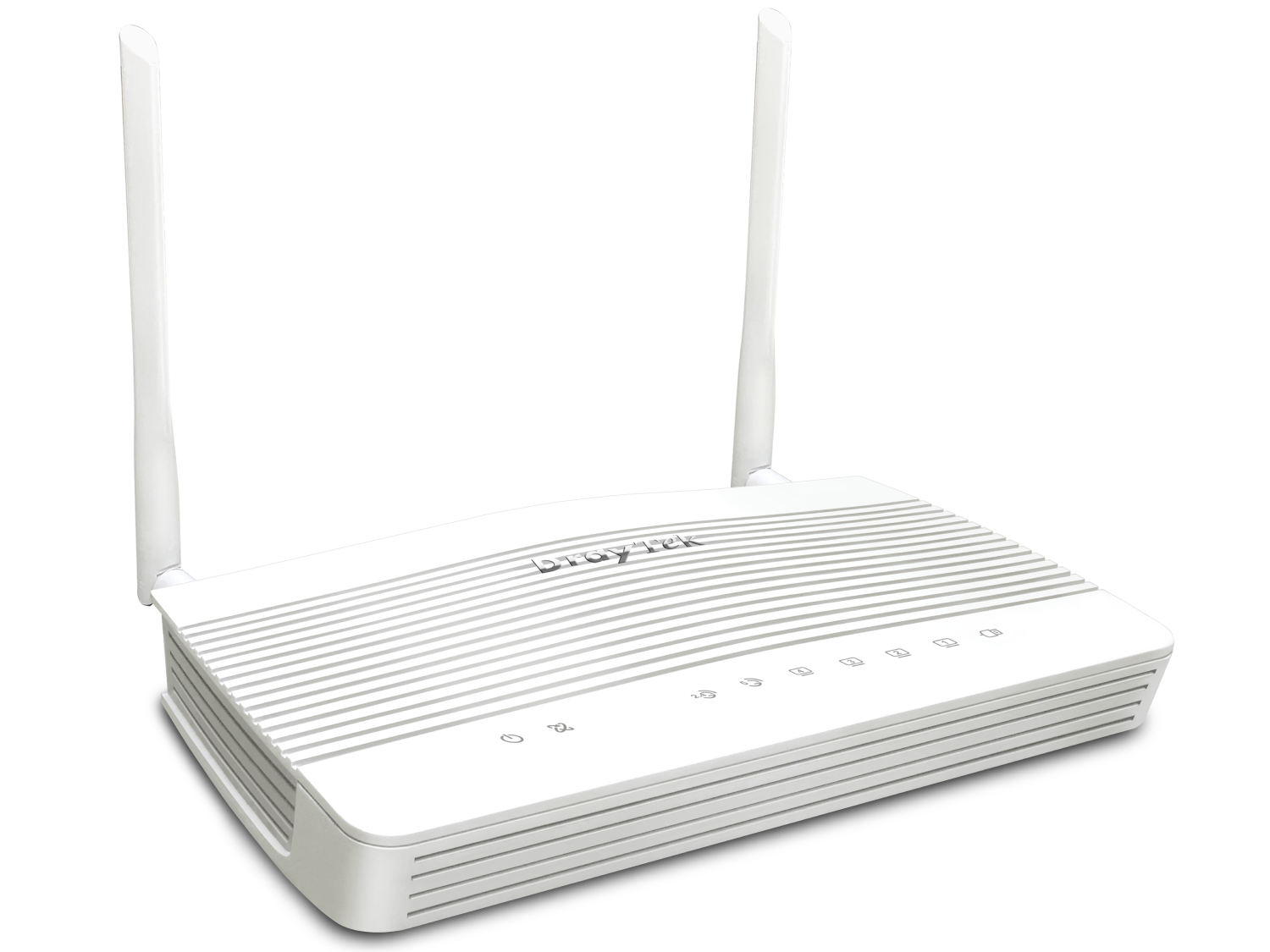

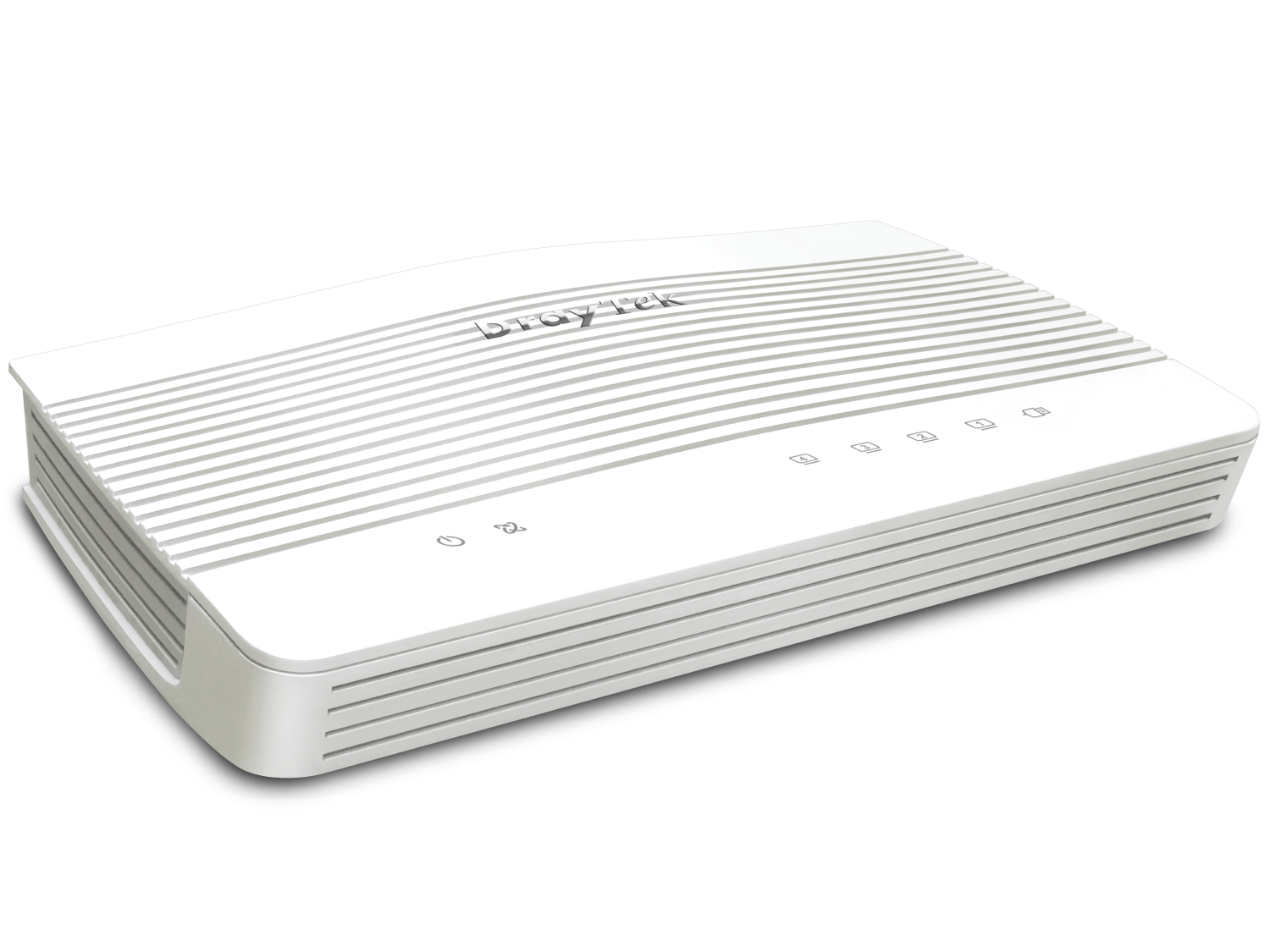

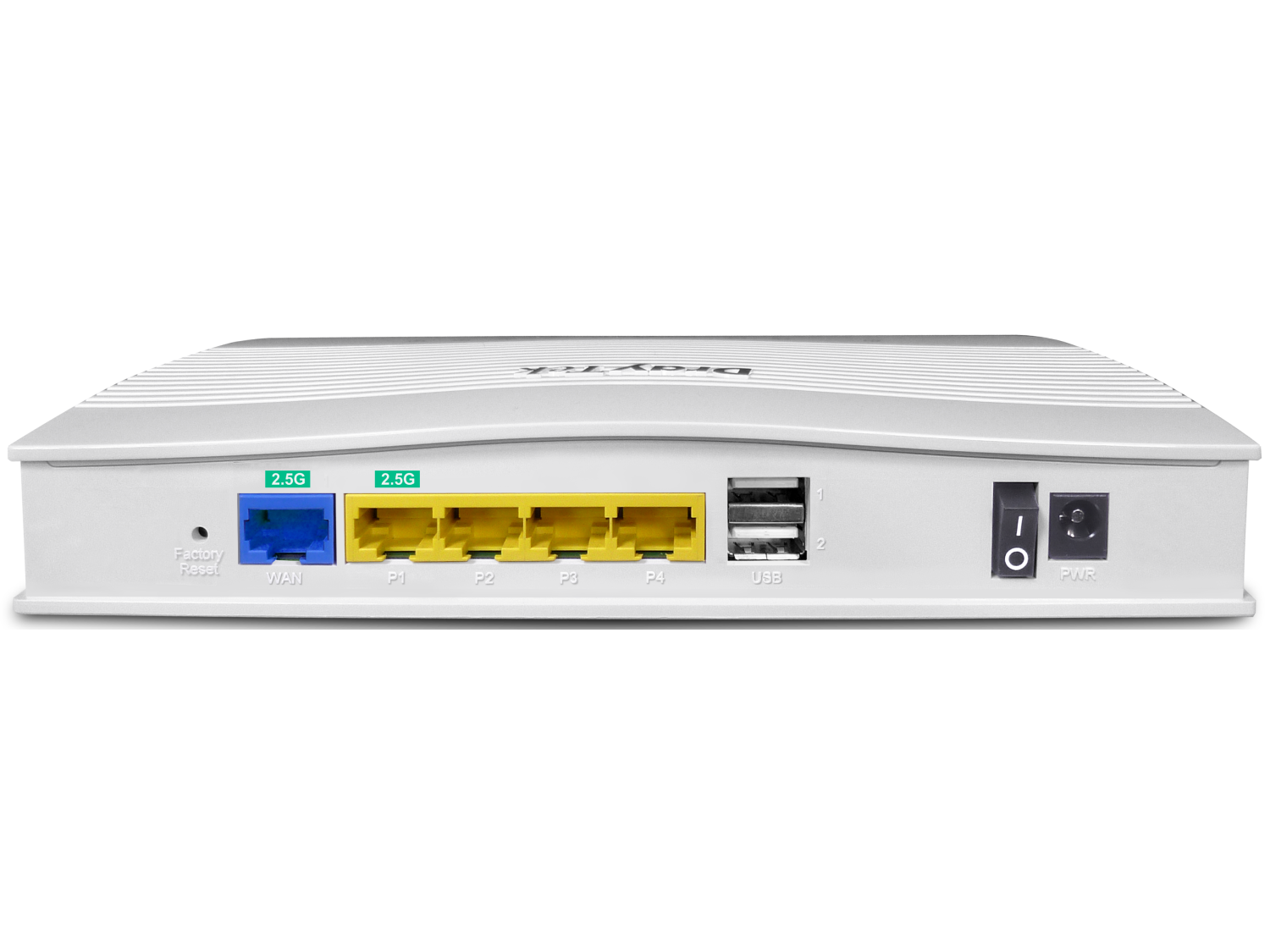

Vigor 2136 Series

*ax model only

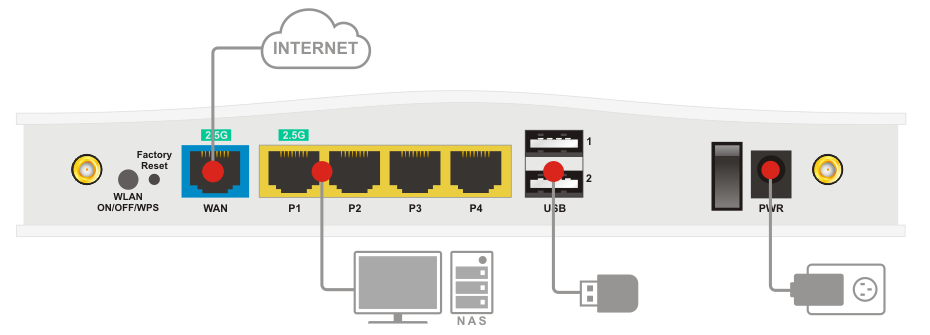

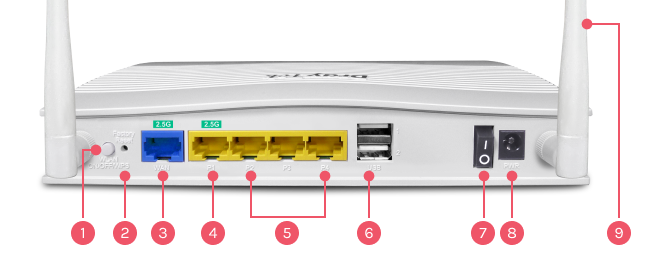

Interface

(ax model)

Multi-Gig Routers

Faster Wired Connections

• 4K video streaming
• online gaming
• large file transfers
• network-attached storage (NAS) devices etc

Beyond Gigabit

Internet speeds of up to 2.5Gbps let users make full use of the available bandwidth.

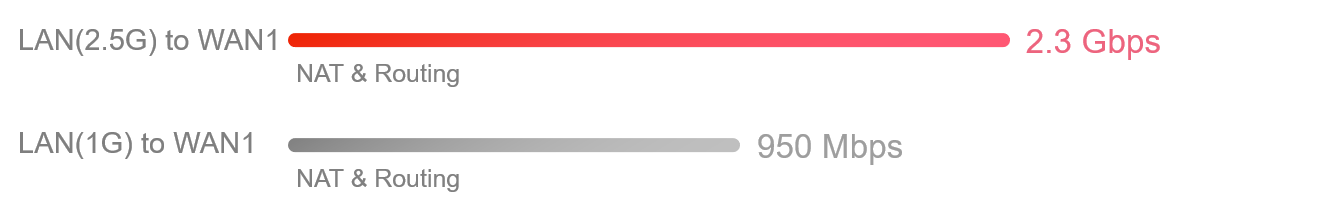

NAT & Routing Performance

The Vigor2136 Series delivers NAT throughput of up to 2.3Gbps while meeting high QoS expectations. You can easily prioritize business-critical applications and always keep VoIP traffic at top priority.

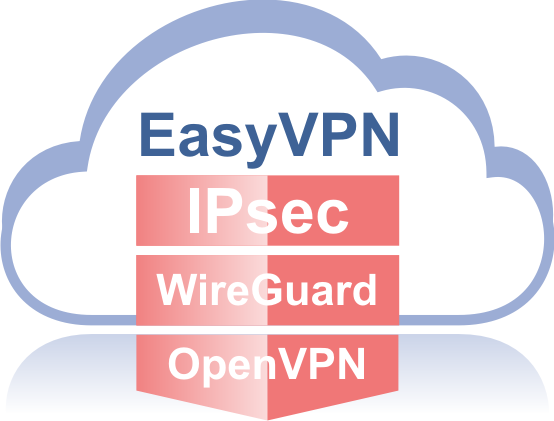

Effortless Secure Access with EasyVPN

Setting up a traditional VPN can be complicated, with protocols to choose and settings to configure by hand. The Vigor2136 Series supports IPsec, WireGuard, and OpenVPN, and EasyVPN simplifies Teleworker VPN: remote users get secure access just by importing a profile.

EasyVPN lets users set up secure connections without the hassle of:

• Generating WireGuard keys
• Importing OpenVPN configuration files
• Uploading certificates

Because EasyVPN automates these steps, every user gets a fast, secure, and easy VPN experience.

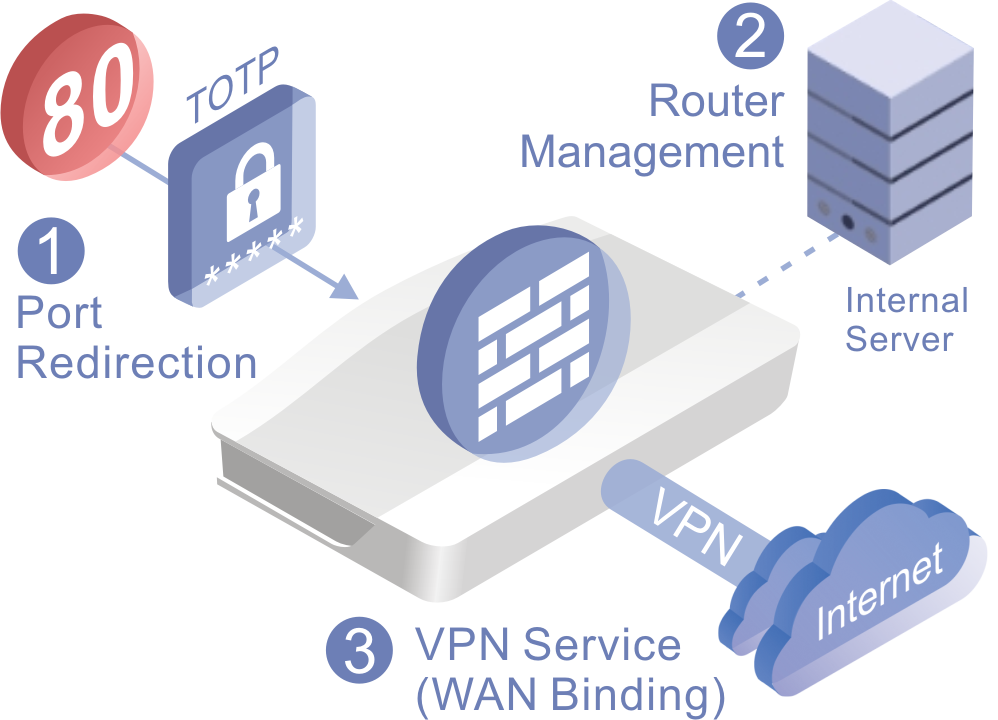

Stealth Security Protection with Port Knocking

DrayTek’s Port Knocking technology adds an advanced stealth layer of security by hiding critical network services from unauthorized users. Instead of exposing management ports or VPN services to the public internet, Port Knocking requires a predefined “knock” sequence before it grants access, so only trusted users can find and use these services.

Port Knocking combines three key functions to deliver strong protection against port scanning, brute-force attacks, and unauthorized access.

Port Redirection

• Hide your real service ports from the public internet.
• Redirect unauthorized requests to non-existent services, preventing detection.

Router Management Access

• Allow router management only through a secure internal server or after successful knocking.
• Eliminate exposure of the management interface to the open internet.

VPN Service Control (WAN Binding)

• Keep VPN services invisible and inaccessible until the correct knock sequence is received.
• Bind VPN availability to specific WAN interfaces and authorized IP addresses.

How It Works

• In normal state, all targeted ports remain closed and undetectable.
• After the correct knock sequence, selected ports open temporarily for authorized access.
• Once the time window expires, services return to hidden mode automatically.

With DrayTek Port Knocking, your network runs in stealth mode: invisible to attackers, yet instantly available to authorized administrators and remote users. That makes it an ideal solution for organizations that need high security without giving up accessibility.

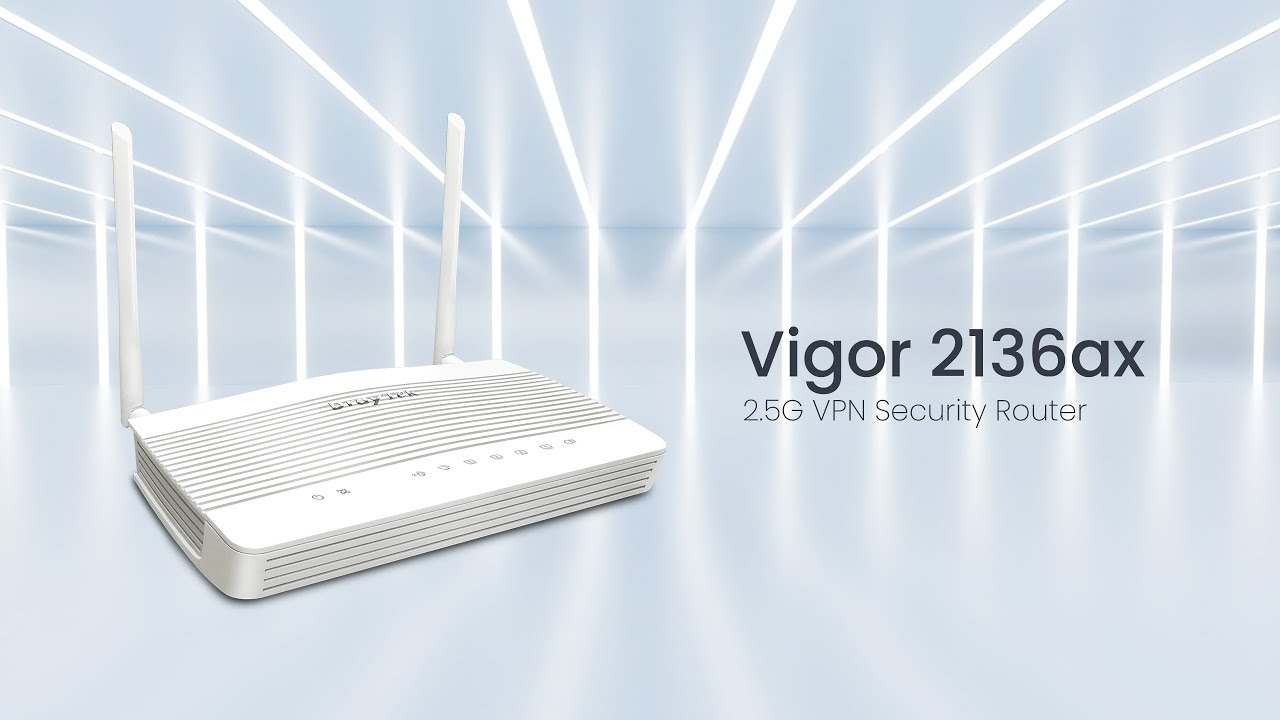

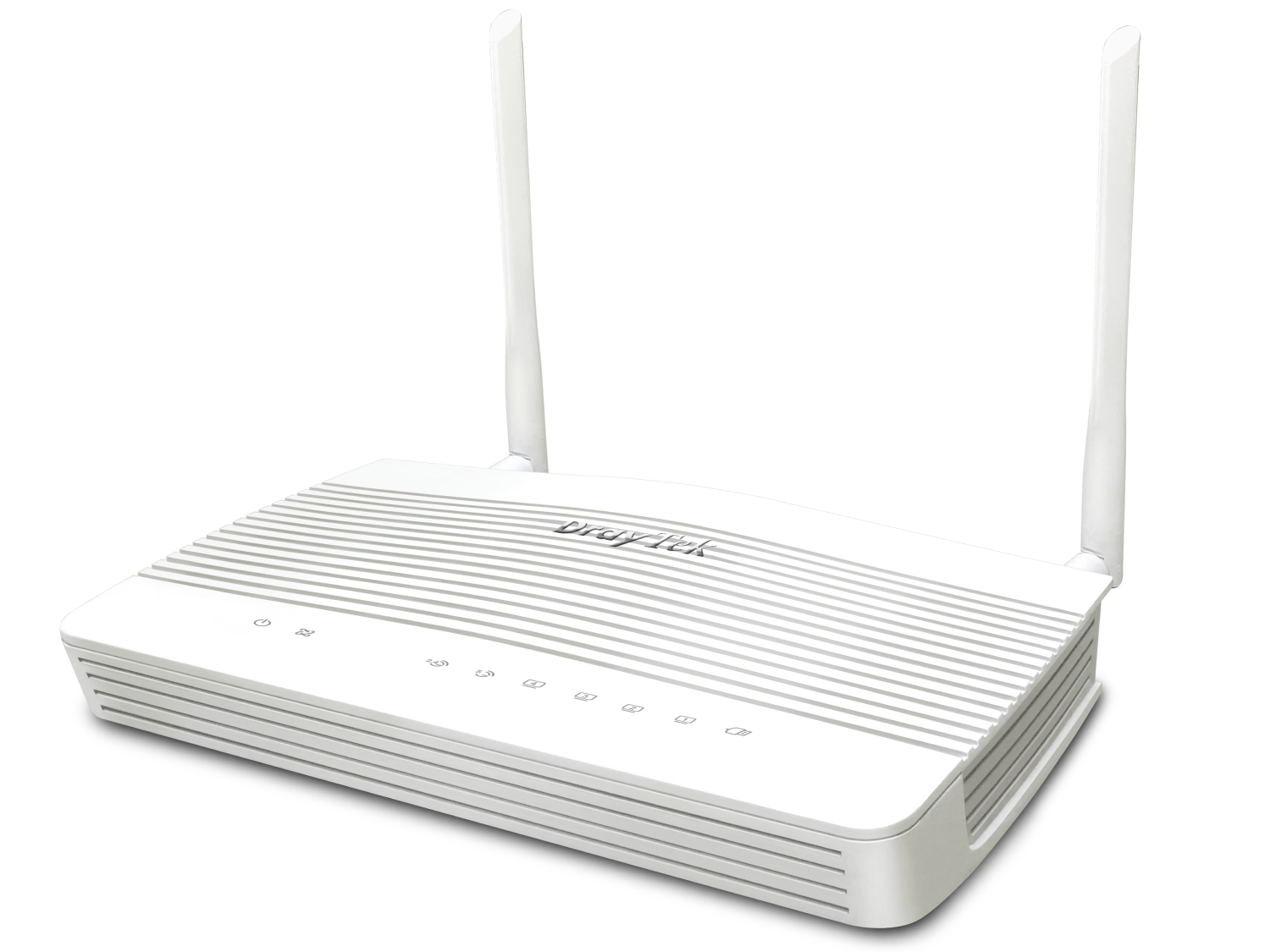

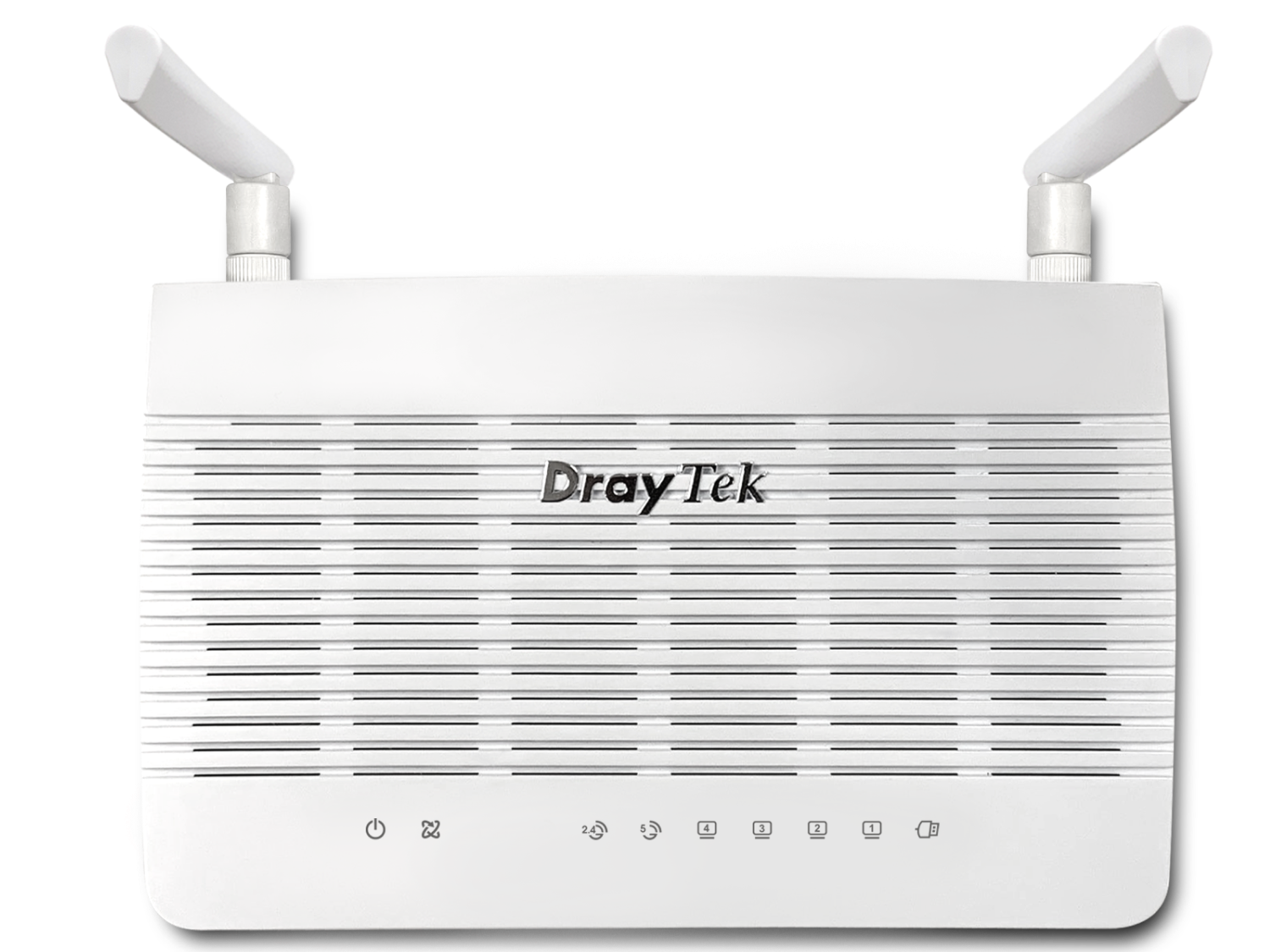

Vigor2136 2.5G Router with Wi-Fi 6 capacity (ax model)

The Vigor2136 Series is a dual-band Wi-Fi router that uses 160MHz bandwidth and 1024-QAM to greatly increase wireless speed. Its theoretical speed reaches up to 3000Mbps—574Mbps in the 2.4GHz band and 2402Mbps in the 5GHz band—which is 2.5 times faster than an 802.11ac 2×2 dual-band router in the home. It also includes business-grade features such as URL Reputation, Route Policy, App-based QoS, and much more, making it ideal for professional smart-home and SOHO users who want full control of their own network.

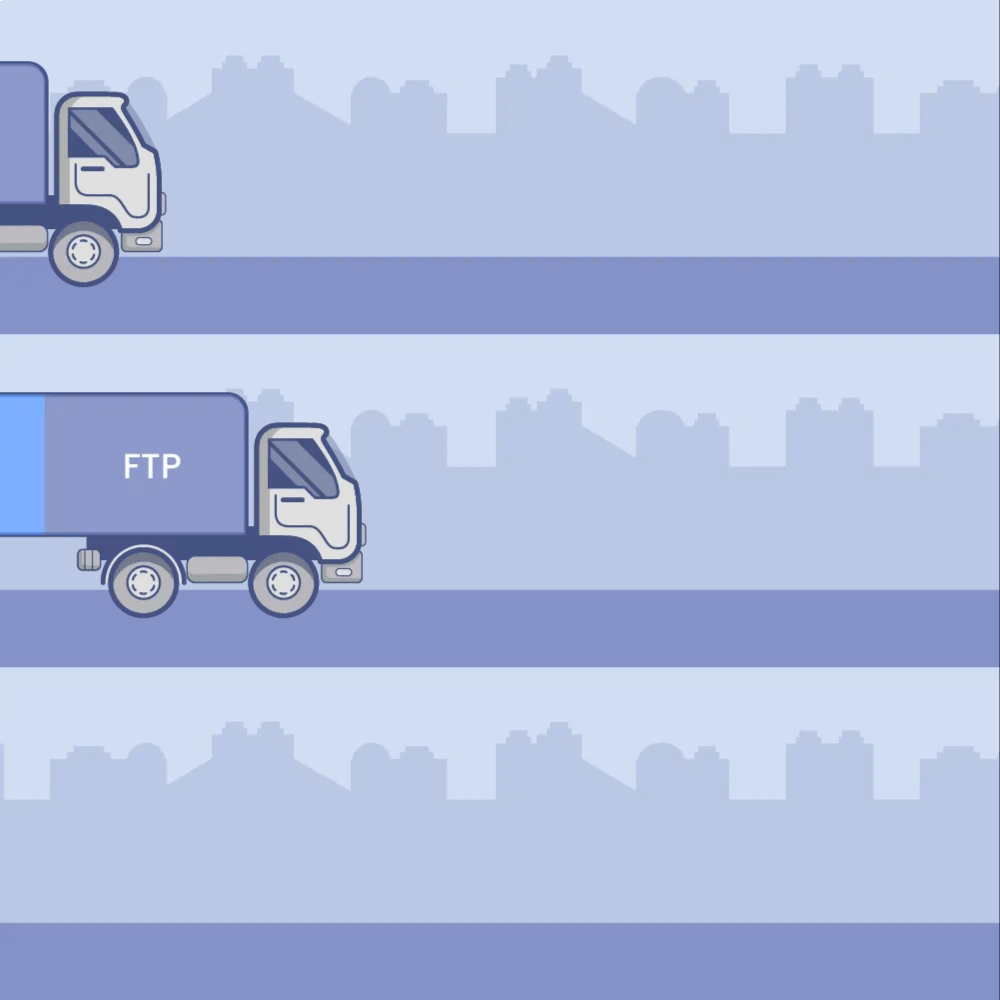

OFDMA (Orthogonal Frequency Division Multiple Access) is a key feature of the Wi-Fi 6 certification program. Part of the Wi-Fi 6 standard, OFDMA relies on efficient scheduling to perform well in congested, complex network environments. As Wi-Fi 6 gains traction among manufacturers and across the industry, it is increasingly important to analyze and document the benefits of a successful OFDMA implementation and to be able to measure its impact.

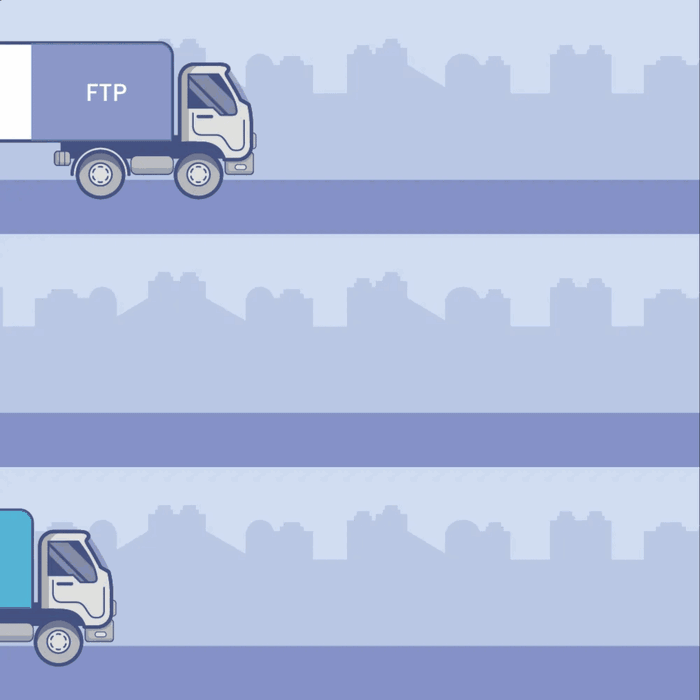

OFDM

OFDMA

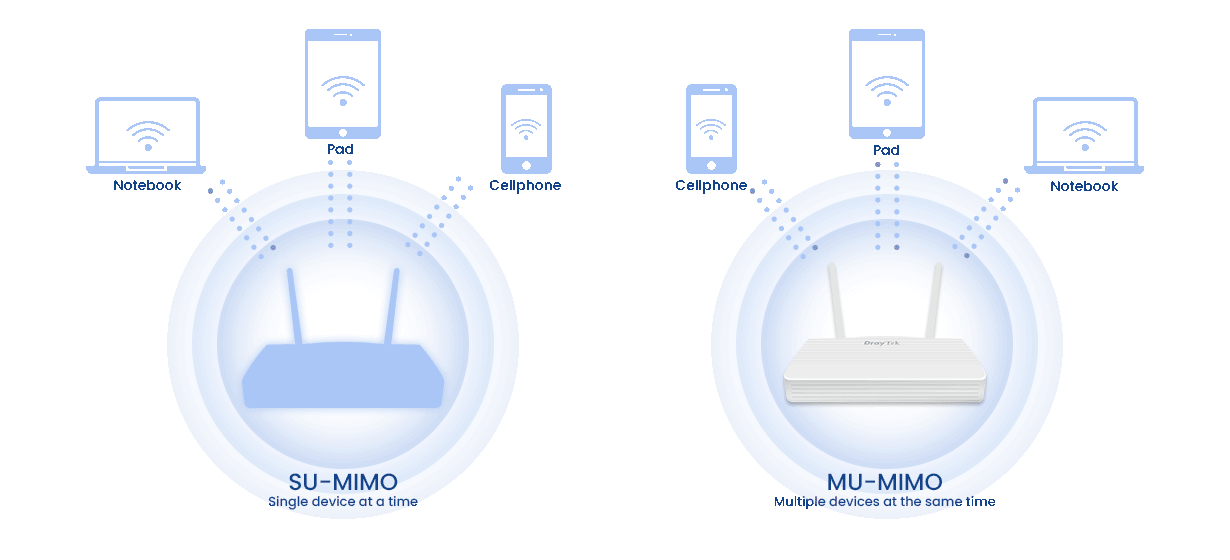

MU-MIMO works like multiple trucks serving users at the same time. It increases capacity and delivers higher speed per user.

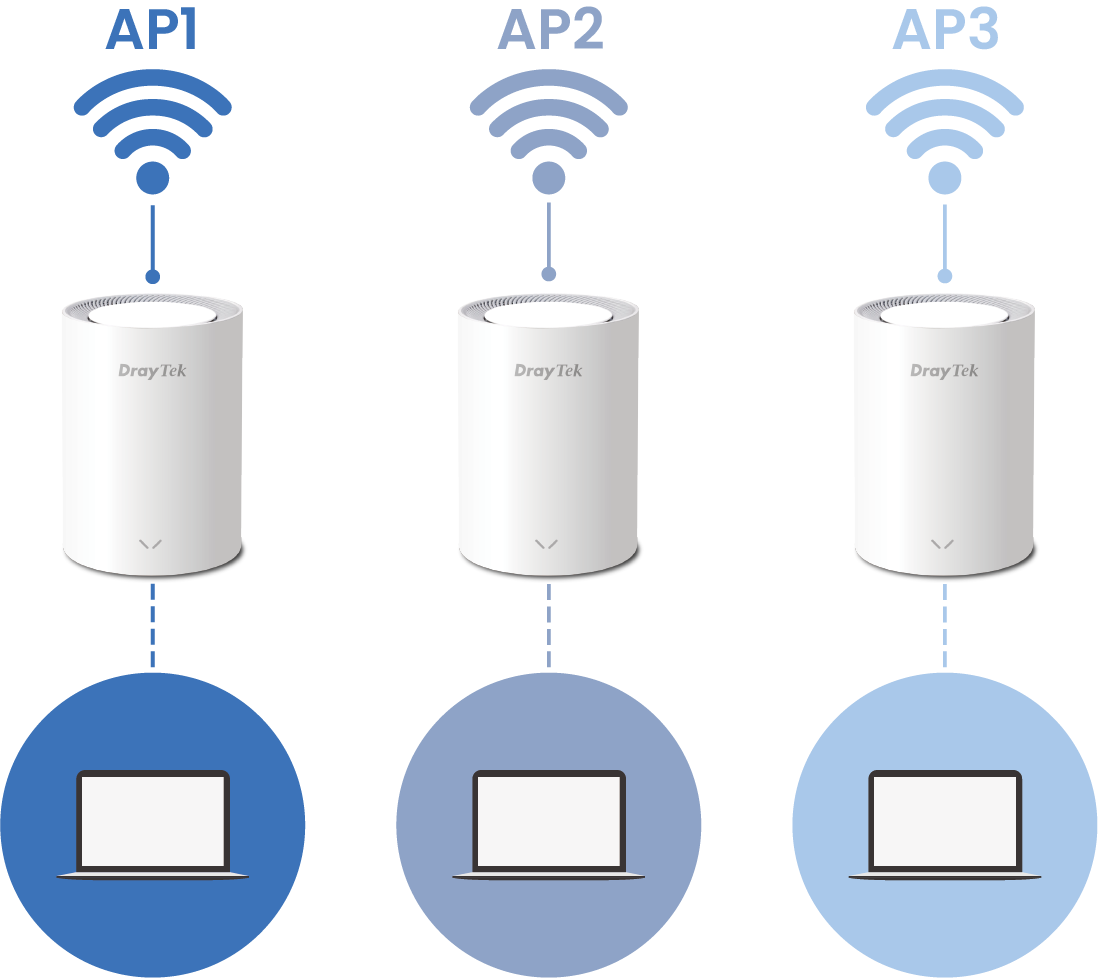

BSS Coloring is a technique that improves the coexistence of overlapping BSSs and allows spatial reuse within a single channel. Simply put, BSS Coloring helps reduce the co-channel interference found in legacy Wi-Fi networks.

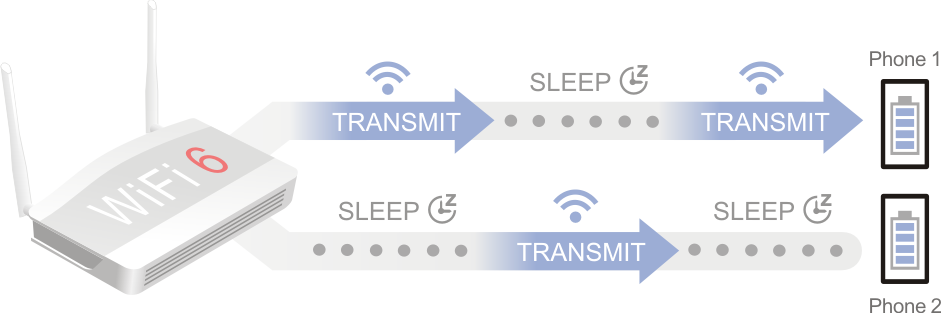

TWT (Target Wake Time) lets end devices spend more time in standby and send and receive data more economically. This reduces energy consumption and improves overall efficiency on the home network. TWT also lets an AP manage activity on the Wi-Fi network to minimize medium contention between stations (STAs) and reduce how long a station in power-save mode needs to stay awake.

WPA3 (Wi-Fi Protected Access 3) strengthens Wi-Fi network security by addressing vulnerabilities in earlier standards such as WPA2 and adding new features to better protect modern wireless communications. Introduced in 2018, WPA3 provides stronger authentication, better encryption, and improved defenses against attacks such as brute-force password guessing and man-in-the-middle exploits.

DrayTek’s Wi-Fi 6 encryption:

• WEP (64 / 128-bit)
• WPA / WPA2 / WPA3 / OWE

The comparison table below shows how clearly WPA3 advances WLAN security design.

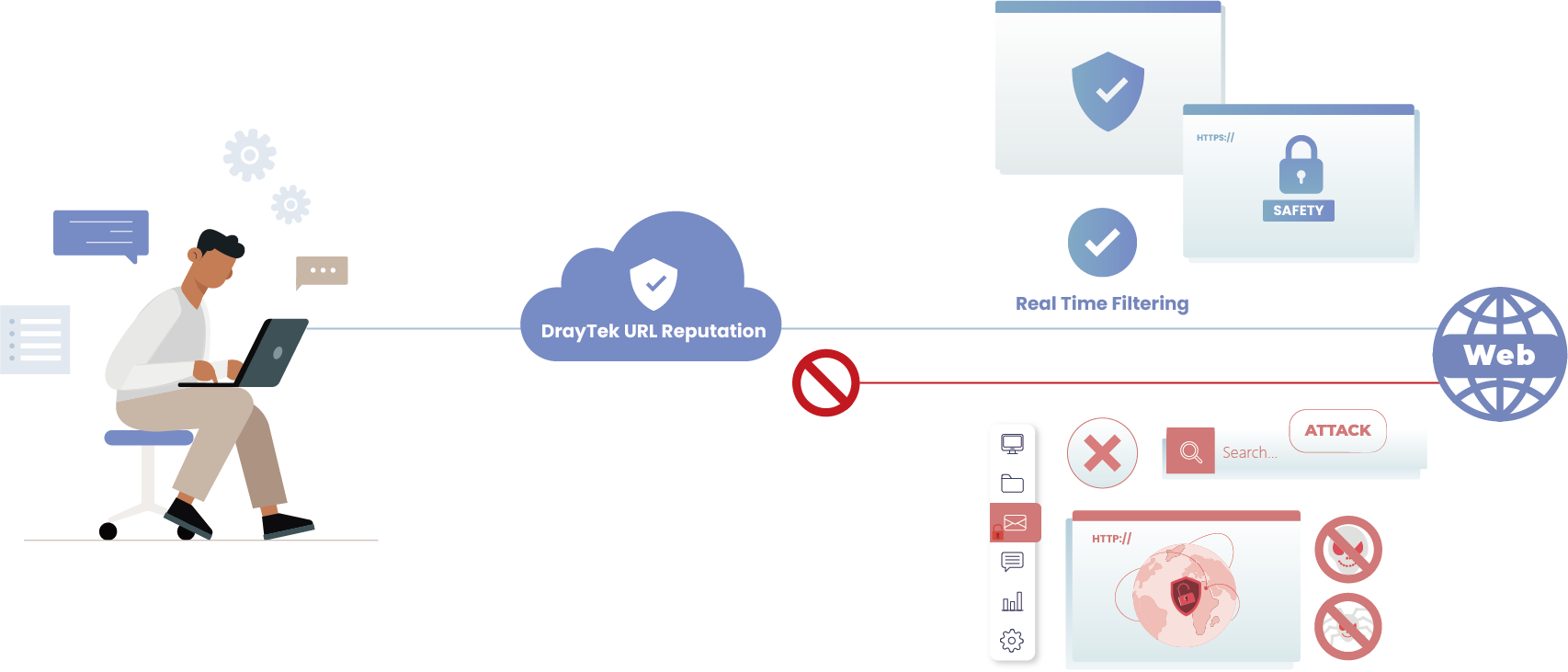

URL Reputation

URL Reputation is a cloud-based Threat Intelligence Service that adds an extra layer of security for LAN clients during their online activities.

It offers 82 categories in total, 10 of them security-focused, to provide comprehensive, up-to-date protection for your home or office network.

The categories span network security (including malware, spyware, and adware), parental controls for child protection, business, social networking, and more. Together they help keep the online environment safe, boost employee productivity, and support efficient bandwidth management.

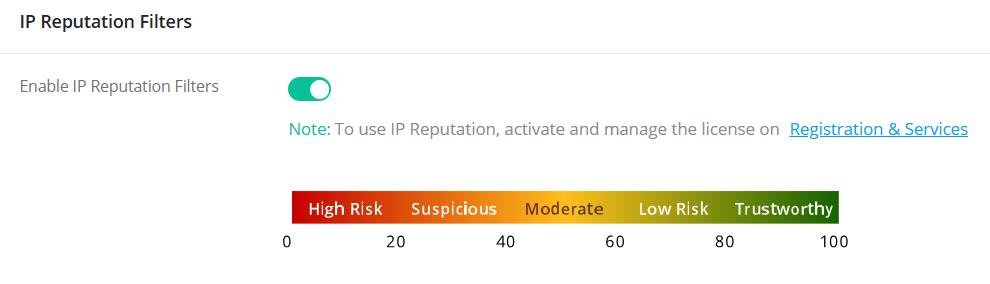

IP Reputation

Every internet communication involves two IP addresses: a source and a destination. Cybercriminals often use known malicious IP addresses to launch attacks with techniques such as:

• Botnets
• TOR nodes and anonymous proxies
• Command-and-control (C2) servers
• Phishing servers
• DDoS attacks

Blocking communication with these harmful IPs is essential, but it takes dynamic, predictive intelligence—something static blocklists can’t provide. The IP Reputation Service solves this by scoring and classifying IP addresses in real time, so it can automatically block:

• High-risk traffic
• Suspicious proxies
• Malware distributors
• IPs linked to recent malicious behavior

The system evaluates each IP against multiple criteria, including infection history, protocol usage, and attack frequency. Each IP receives a reputation score that determines whether it is trusted, monitored, or blocked outright.

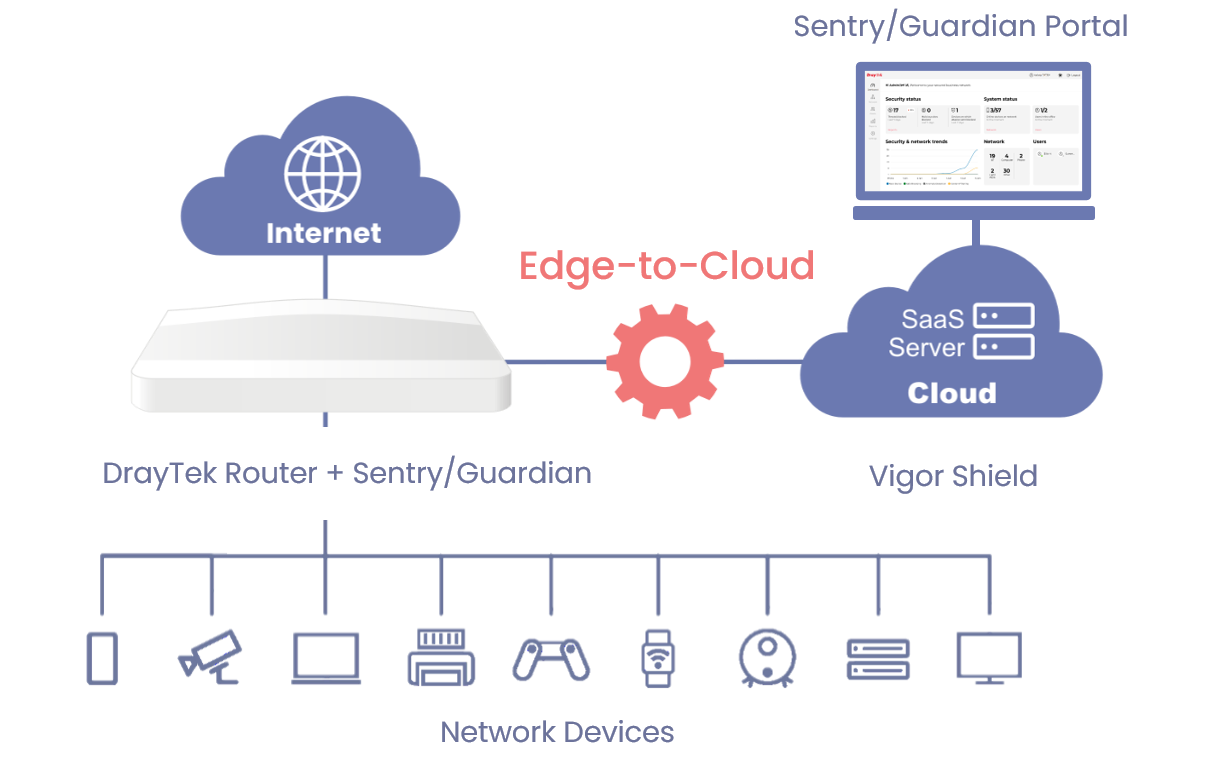

Threat Protection Sentry AI-assisted Firewall

Up to 100 LAN Devices • Multi-Layer Defense • Cloud-Enhanced Security

Unified Protection

Router Protection

• Anti-DoS/DDoS, Port Scan Blocker, Brute Force Defense, IP/URL Reputation

Network Protection

• Device fingerprinting, anomaly detection, auto-quarantine of risky devices

IoT / Unmanaged Device Security

• DPI virtual hot patching, exploit prevention, command injection blocking

Web Protection

• Safe Browsing, Category Filtering, Service Filtering, user-assigned policy

Cloud-Driven Intelligence

• Real-time threat analytics
• Updated malicious IP/URL lists
• Centralized reports & event visibility

*Note: URL/IP Reputation and Threat Protection cannot be enabled at the same time; each router can run only one of these services.

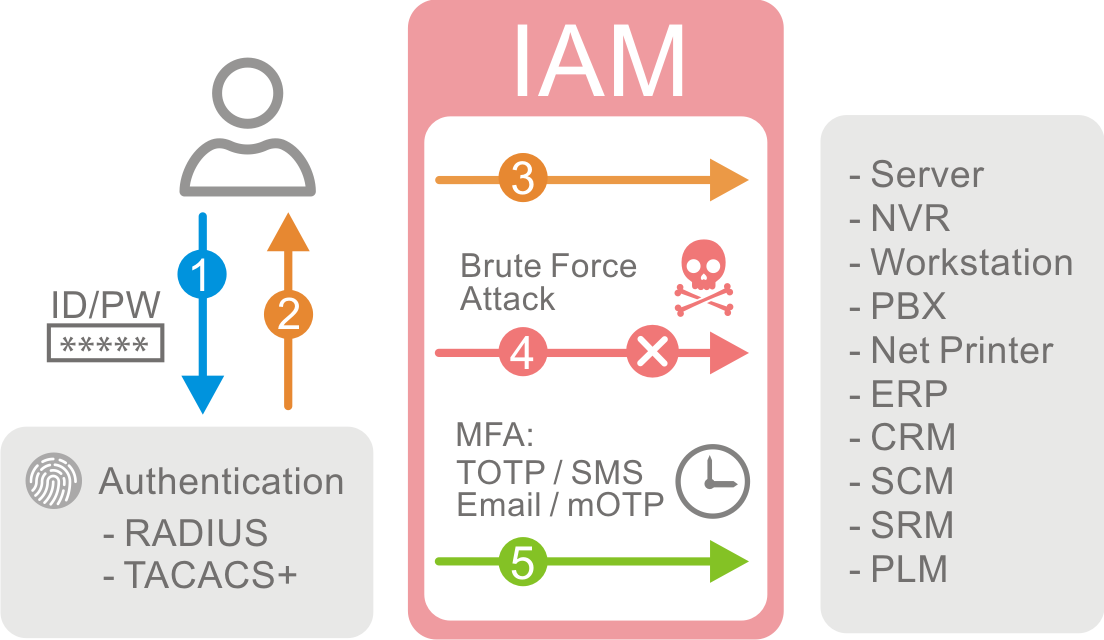

IAM Identity and Access Management

Vigor2136 Series with the new DrayOS 5 is Zero Trust ready!

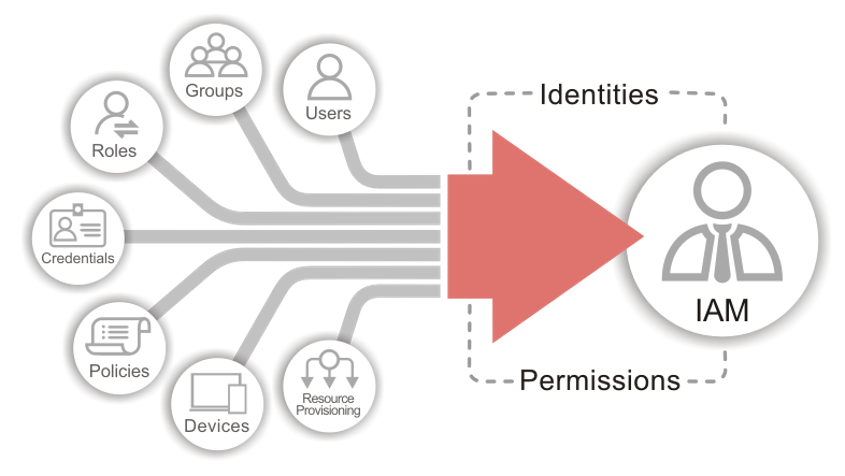

IAM (Identity and Access Management) is a framework of policies and processes that makes sure the right users or groups have appropriate access to critical resources by managing digital identities, authentication, and access control.

It covers the processes for identifying, authenticating, and authorizing users or groups to access systems, applications, and data. By assigning specific roles to users and making sure they have the right level of access to corporate resources and networks, IAM improves both security management and the user experience.

IAM provides a Zero Trust Ready set of security management tools for Vigor routers. It lets you grant and categorize user privileges, create and manage access policies, and define large-scale group policies that combine multiple filtering rules and traffic shaping settings. DrayTek’s IAM plays an important role in your cloud security strategy.

Users & Groups

• User account > user groups makes it easy to control and manage accounts in a group level
• Configure external authentication server
• Enable user and MFA protection

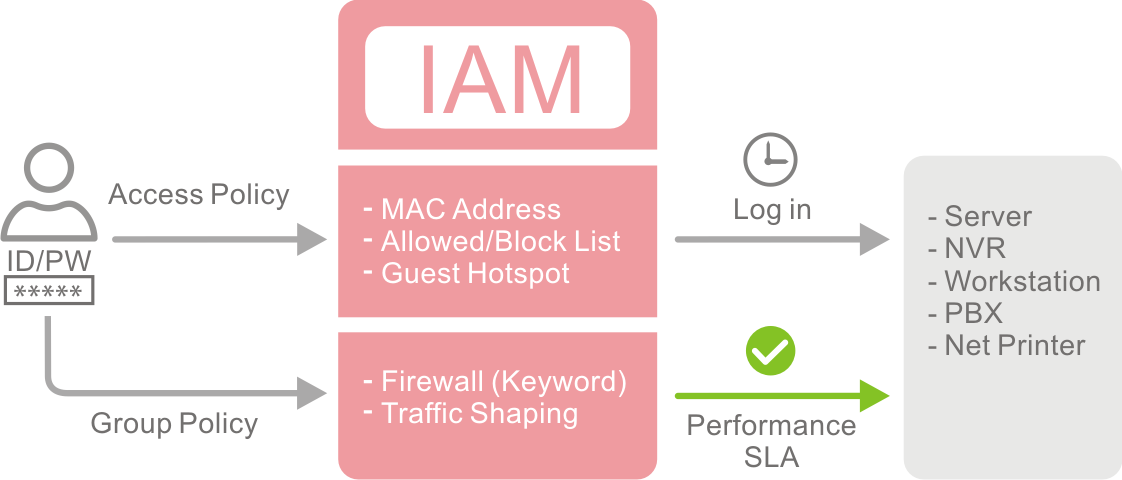

Access Policies

In this tab, system administrators can create access policies for local users. Access policies can be created based on:

• MAC address filter list
• The allowed /blocked user list
• The login sessions lifetime

Combining these access policies creates a robust security framework for your system.

Group Policies

Set up group policies with predefined local resources such as employees, workstations, network printers, and local servers. Customize firewall and traffic shaping policies to strengthen network security and optimize traffic flow.

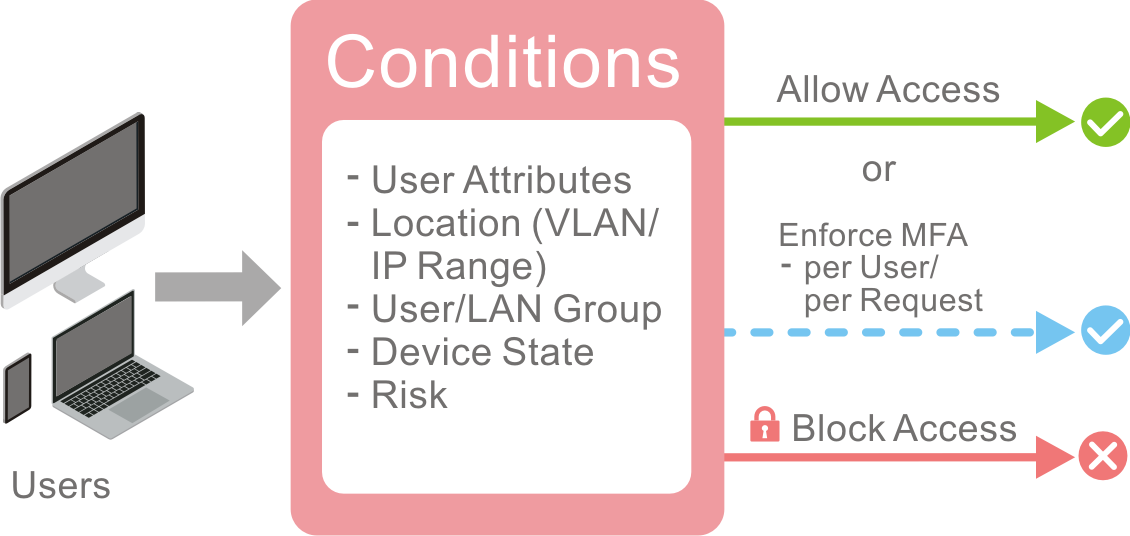

Conditional Access Policy

Conditional access policies can require users to provide multiple forms of authentication before they are granted access to a resource.

• Specify a time period for user to re-authenticate
• Restrict access to specific source IP address or ranges of IP addresses
• Specify VLAN-based access controls in your conditional policies
• Set up time schedules when user are allowed to log-in

Resources

Record the IP and MAC addresses of local resources, such as workstations, network printers, PBX systems, NVR systems, and servers, under the Resources tab.

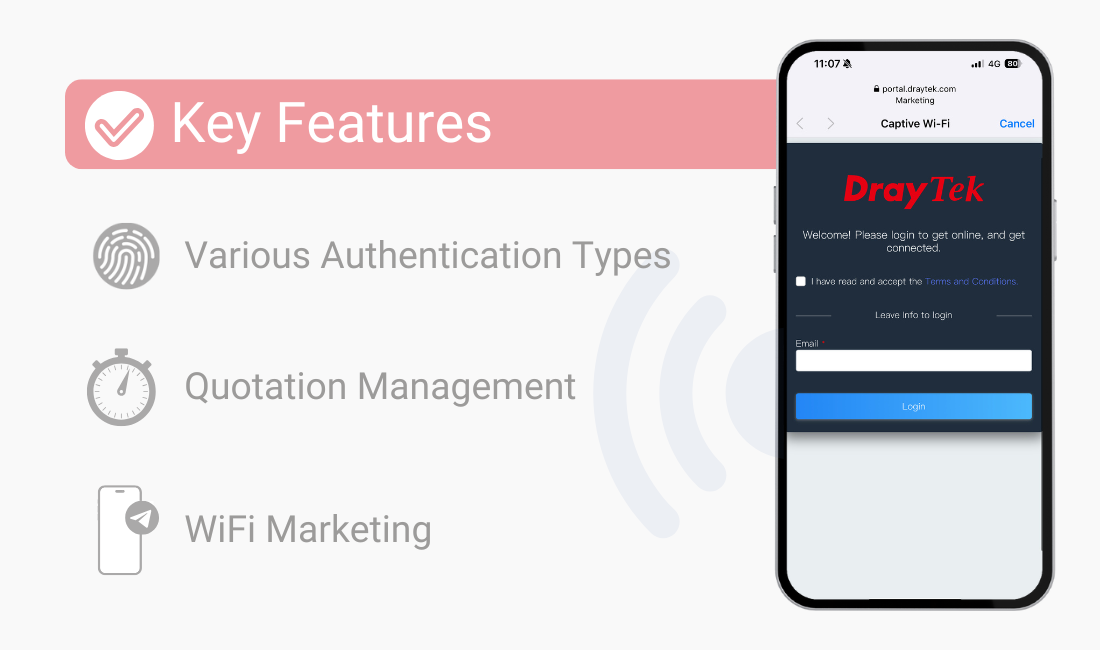

Hotspot Web Portal

DrayTek’s Hotspot Web Portal is a customizable Wi-Fi login page with multiple login options, including username/password, social media, and vouchers. It offers quota management, Wi-Fi marketing for promotions, and branding options. Administrators can control access, set bandwidth limits, and monitor usage.

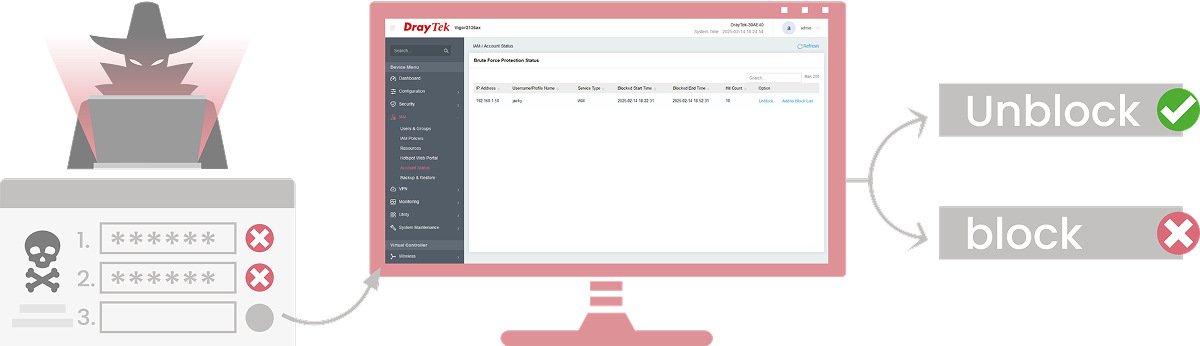

Account Status

The account status feature includes brute-force protection, which logs the attacking IP address, the targeted username or profile, and the type of service under attack.

It also tracks the protection period, recording when blocking starts and ends, along with the total number of hits. You can also unblock access manually if a restriction was applied by mistake.

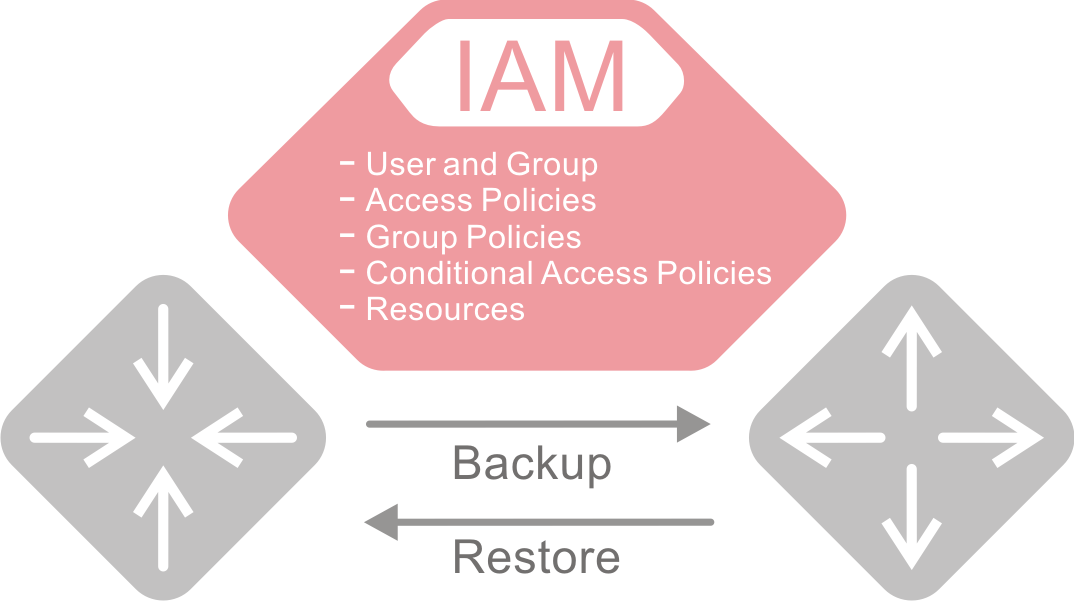

Backup and Restore

You can back up or restore any of your settings, such as Users and Groups, Access and Group Policies, and more. You can also add password protection to keep the backup files safe before you take action.

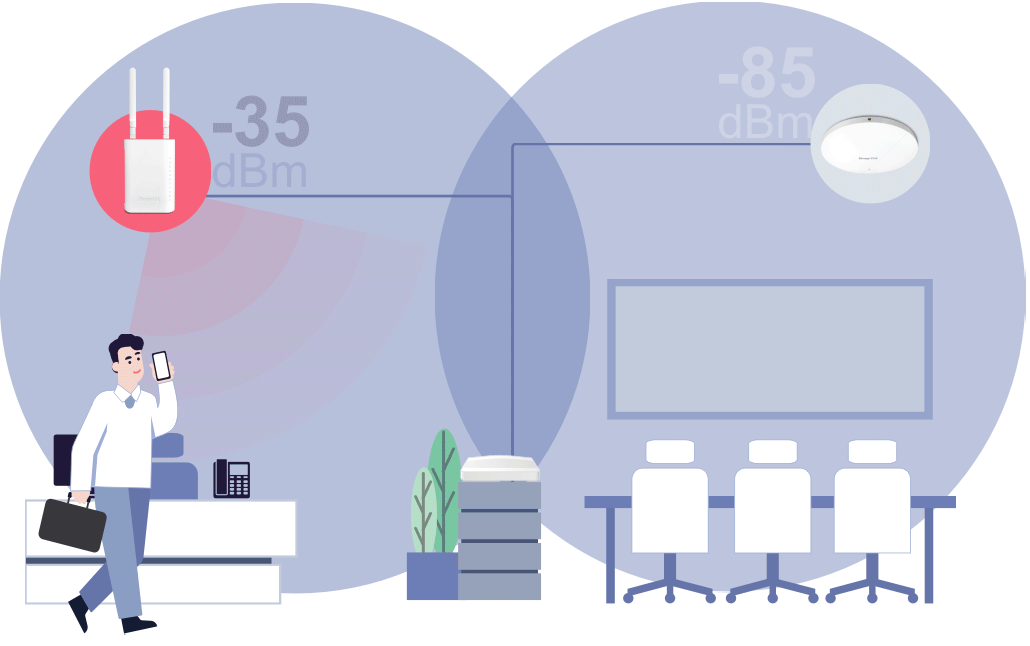

Seamless Wi-Fi Roaming

Fast & Smooth Handover

• Switch between access points seamlessly with intelligent roaming support.
• Supports Over-the-DS (via wired backbone) and Over-the-Air handoffs for reliable connectivity during video calls, voice chats, and real-time applications.

Smarter Assisted Roaming

• Signal thresholds and AP steering help devices move to stronger APs and balance network loads.
• Enjoy stable performance across all devices, everywhere.

Always Optimized for Business

• From offices to campuses, seamless roaming ensures uninterrupted mobility.
• Reliable coverage built for the demands of modern workplaces.

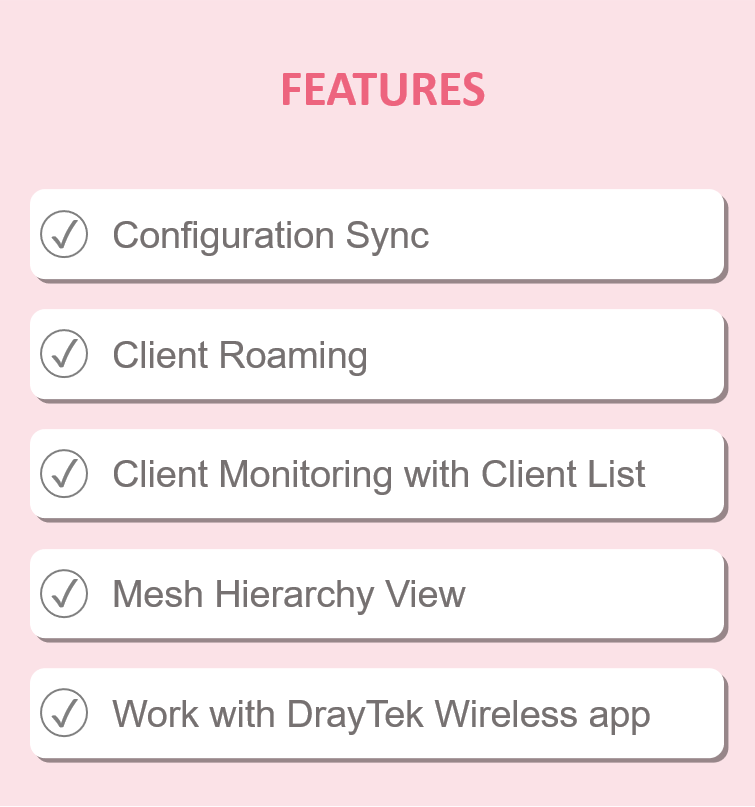

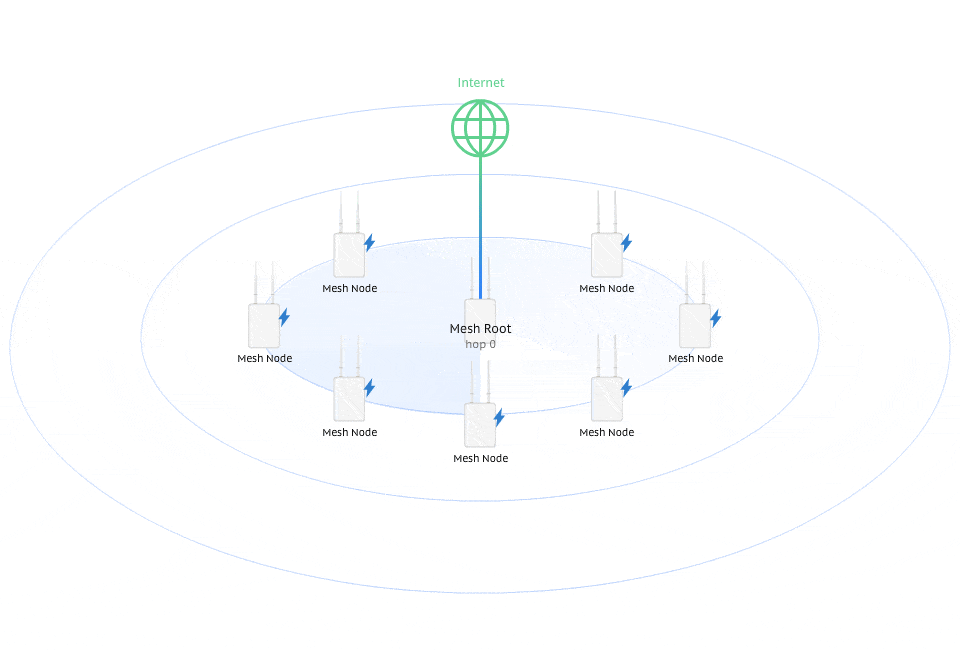

Mesh

You can connect 7 APs to form a wireless group within the same network, which automatically creates mesh links between the root and node APs based on an optimized algorithm.

Management Solution

Virtual Controller

On-Device Network Management with DrayTek Virtual Controller

DrayTek’s Virtual Controller is a management platform built into supported routers and firewalls. It provides centralized control without depending on the cloud, which reduces data exposure risk and improves network privacy.

Wireless Management

• Mesh Controller: Easily build and manage wireless mesh networks, with auto-routing and self-healing capabilities.
• AP Management (APM): Automatically discover, configure, and monitor connected VigorAPs – ideal for deploying multiple APs with unified settings.

Switch Management

• Central Switch Manager (SWM): Detect and manage supported VigorSwitches, push configurations, monitor status, and apply VLAN or QoS settings – all from one local interface.

Wireless

Switch

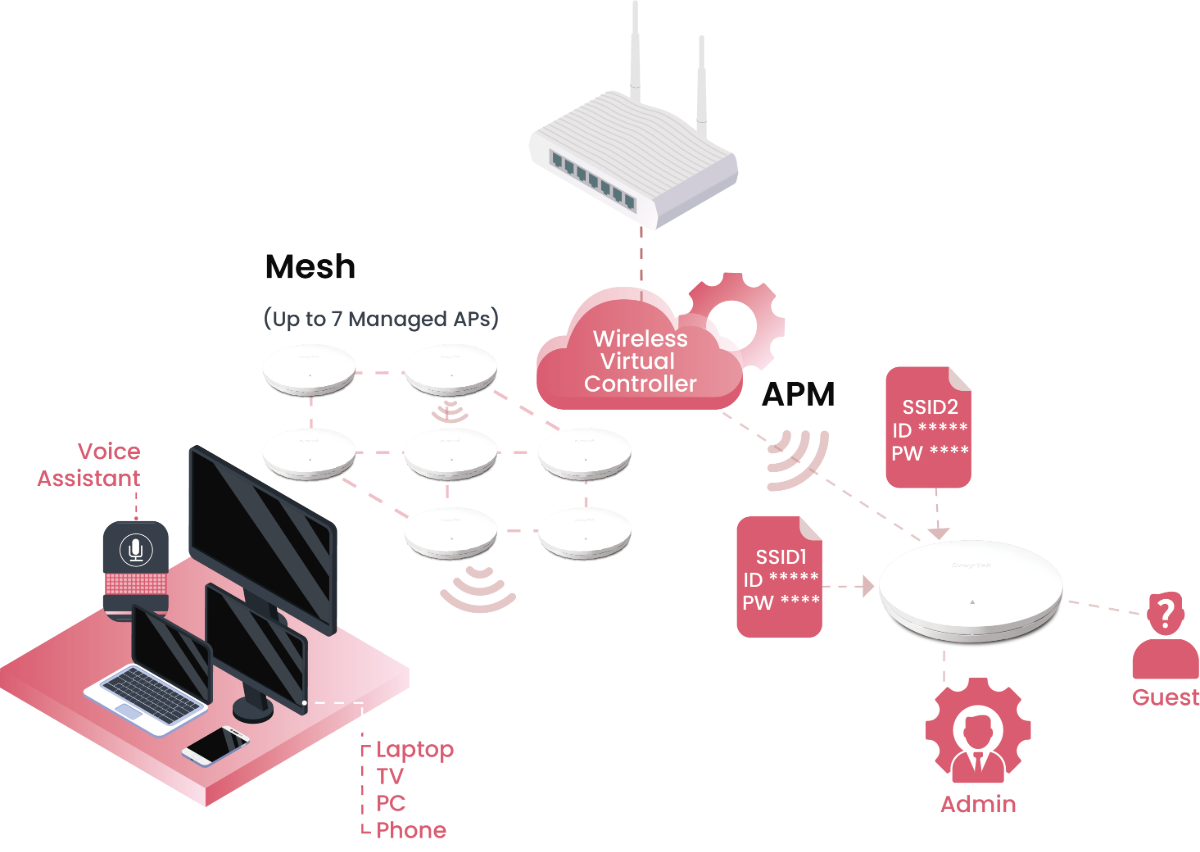

Unified Mesh & AP Management

Virtual Controller offers two modes for flexible deployment.

Mesh Mode

Automatically builds a self-healing wireless mesh, with the Vigor2136 Series as the Root AP and up to 7 Node APs, for easy, scalable Wi-Fi coverage.

AP Management Mode

In networks with more than 8 APs, Virtual Controller switches to AP Management mode, so you can centrally control up to 20 APs from the router’s interface.

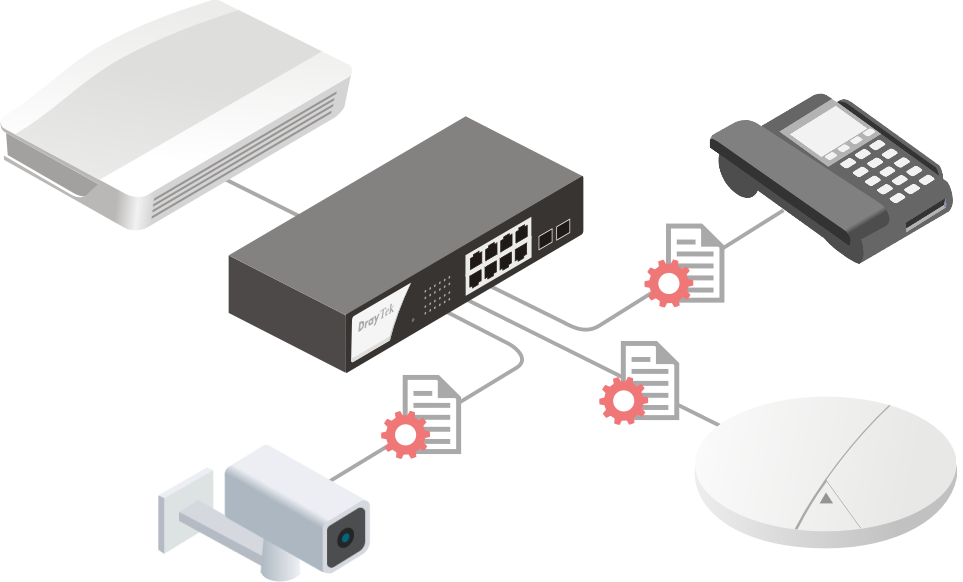

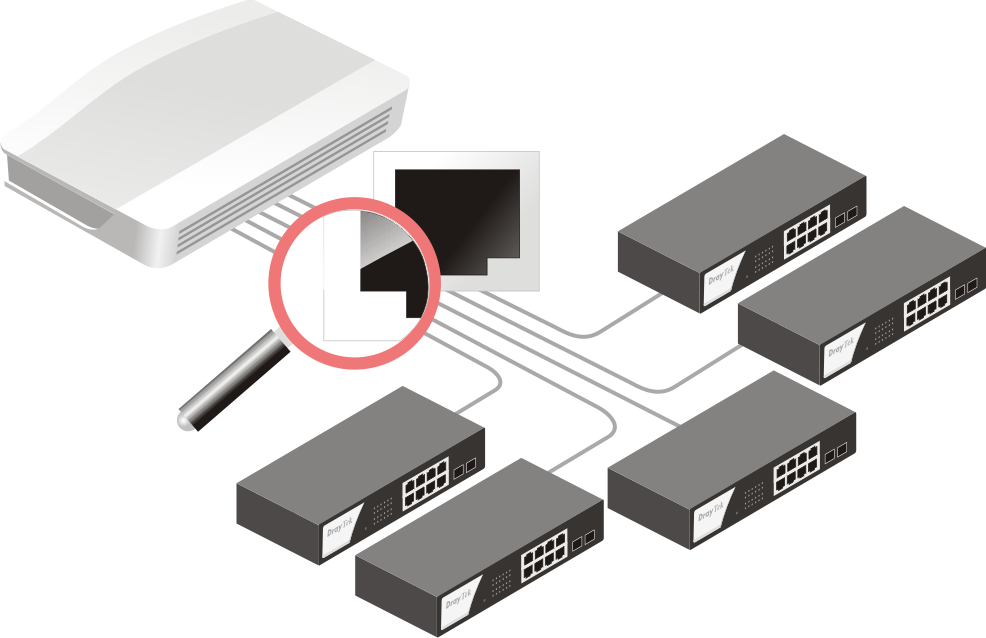

SWM

The Vigor2136 Series can act as the master to manage and monitor up to 5 switches. It also gives you visibility into the PD devices connected behind each switch, such as IP cameras and access points.

Device Management

Monitor switch status, current firmware version, and uptime for every managed device.

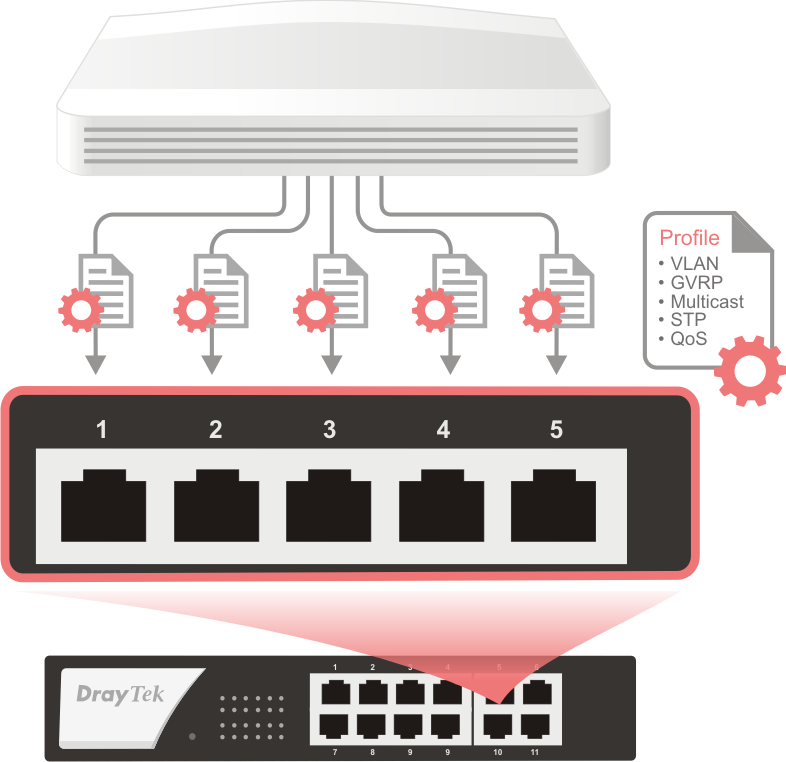

Port Profile

Create multiple port profiles to provision PoE, VLAN, QoS, and other settings on selected switches.

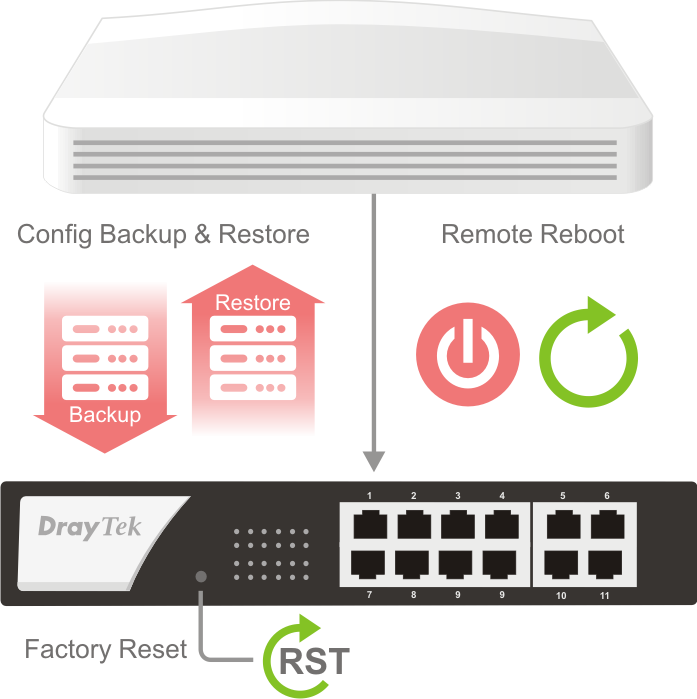

Maintenance

Back up and restore configurations, reboot switches remotely, or reset them to factory defaults.

Software Management

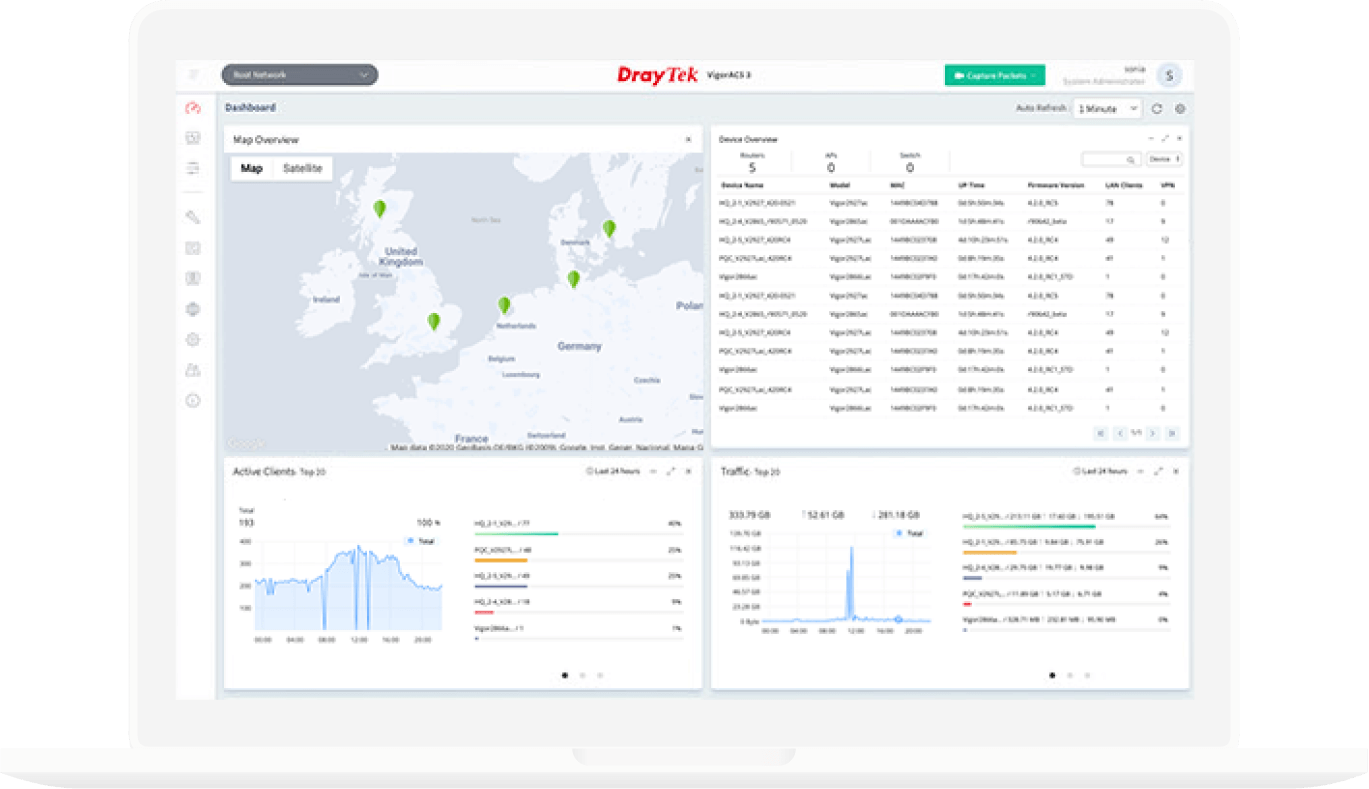

VigorACS 3

• Zero Touch Deployment & Provisioning
• Auto VPN
• Interface Quality & SLA
• VoIP Optimization & Monitoring
• Application Visibility
• Application Based SD-WAN Policy
  *Click here to check the support model list.
• Customized Hotspot Page with Multilingual
• Hotspot Clients Analytics
• ACS Server Load Balancing / Failover

View More

In the Box

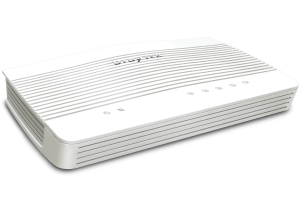

• Vigor2136 Series
• Antenna x 2
  (ax model)

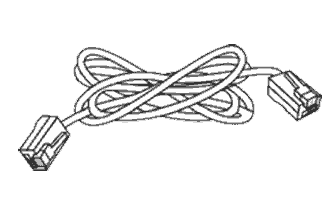

• RJ-45 Cable (Ethernet)

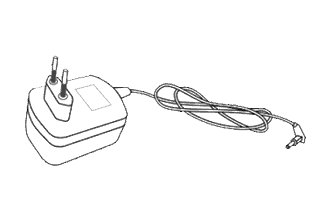

• Power Adapter
• Quick Start Guide
