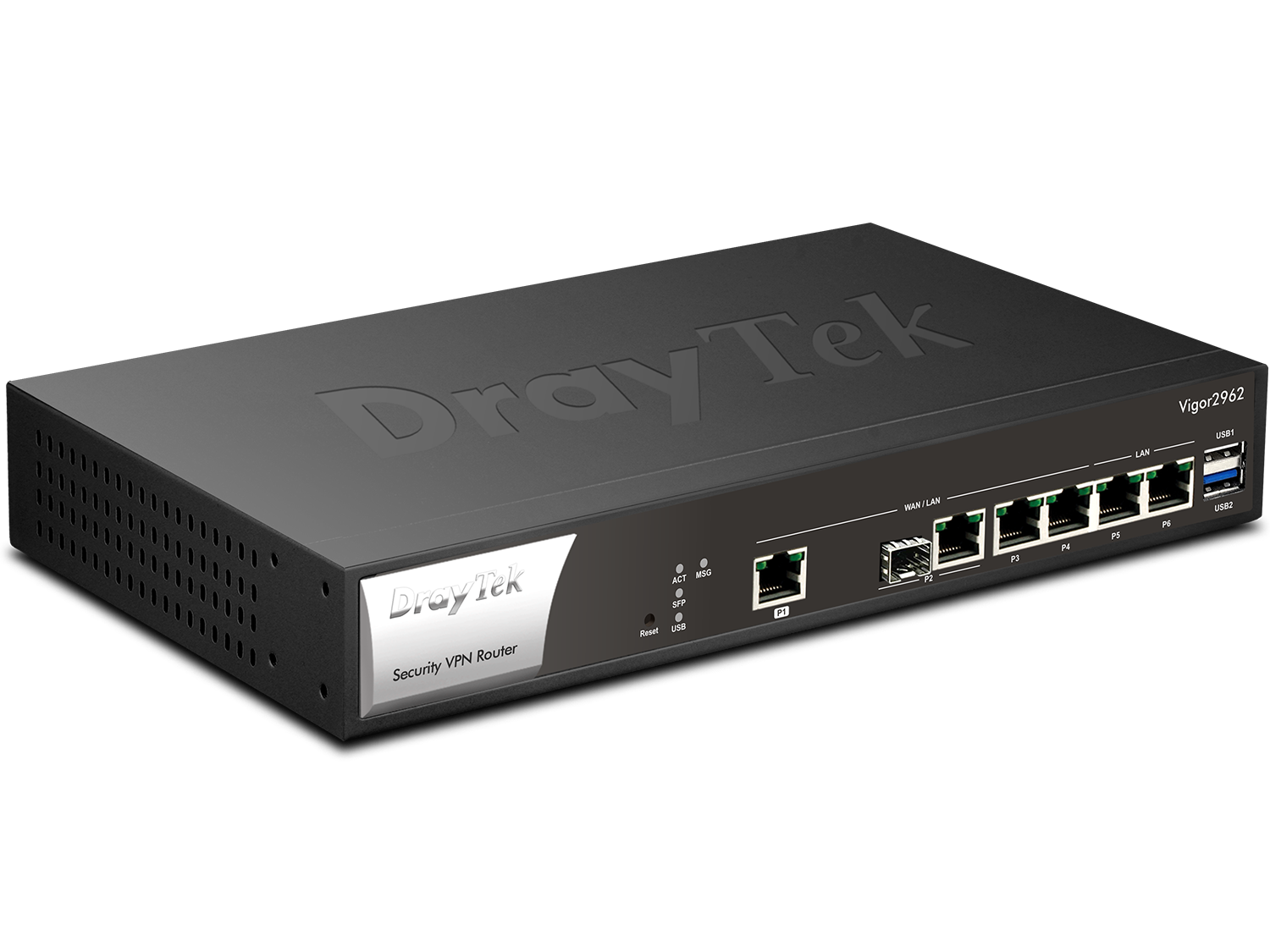

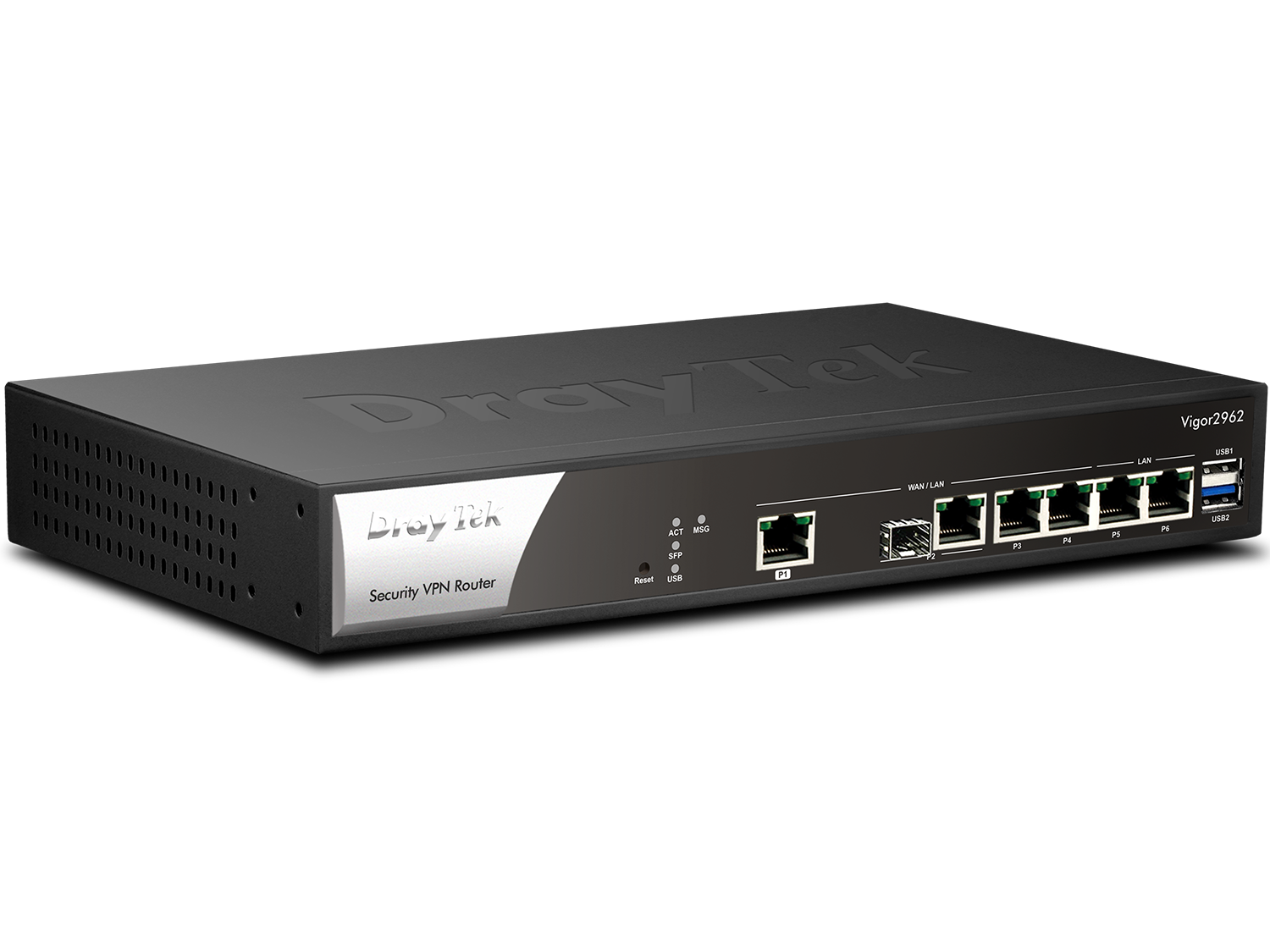

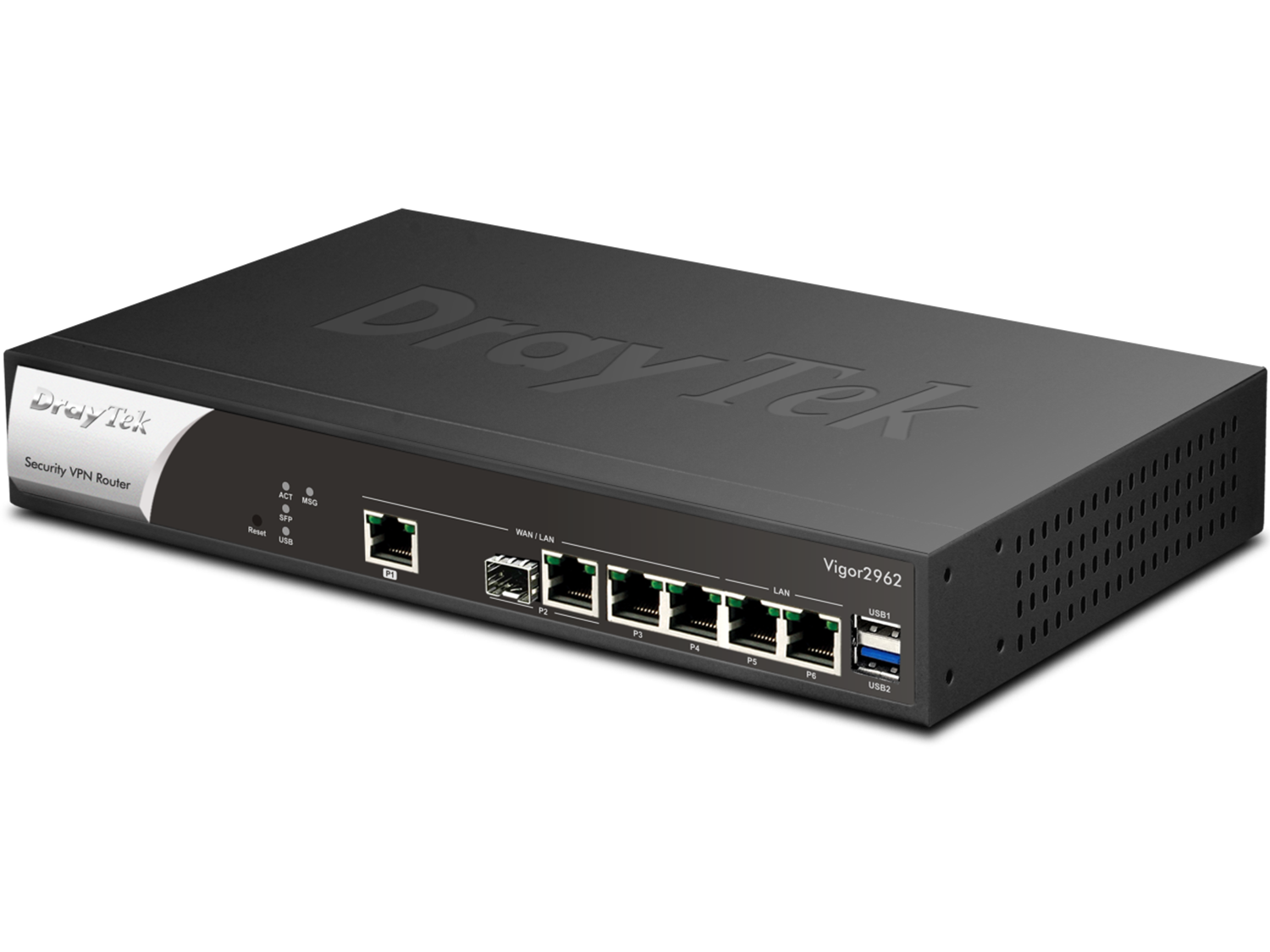

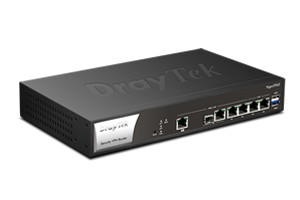

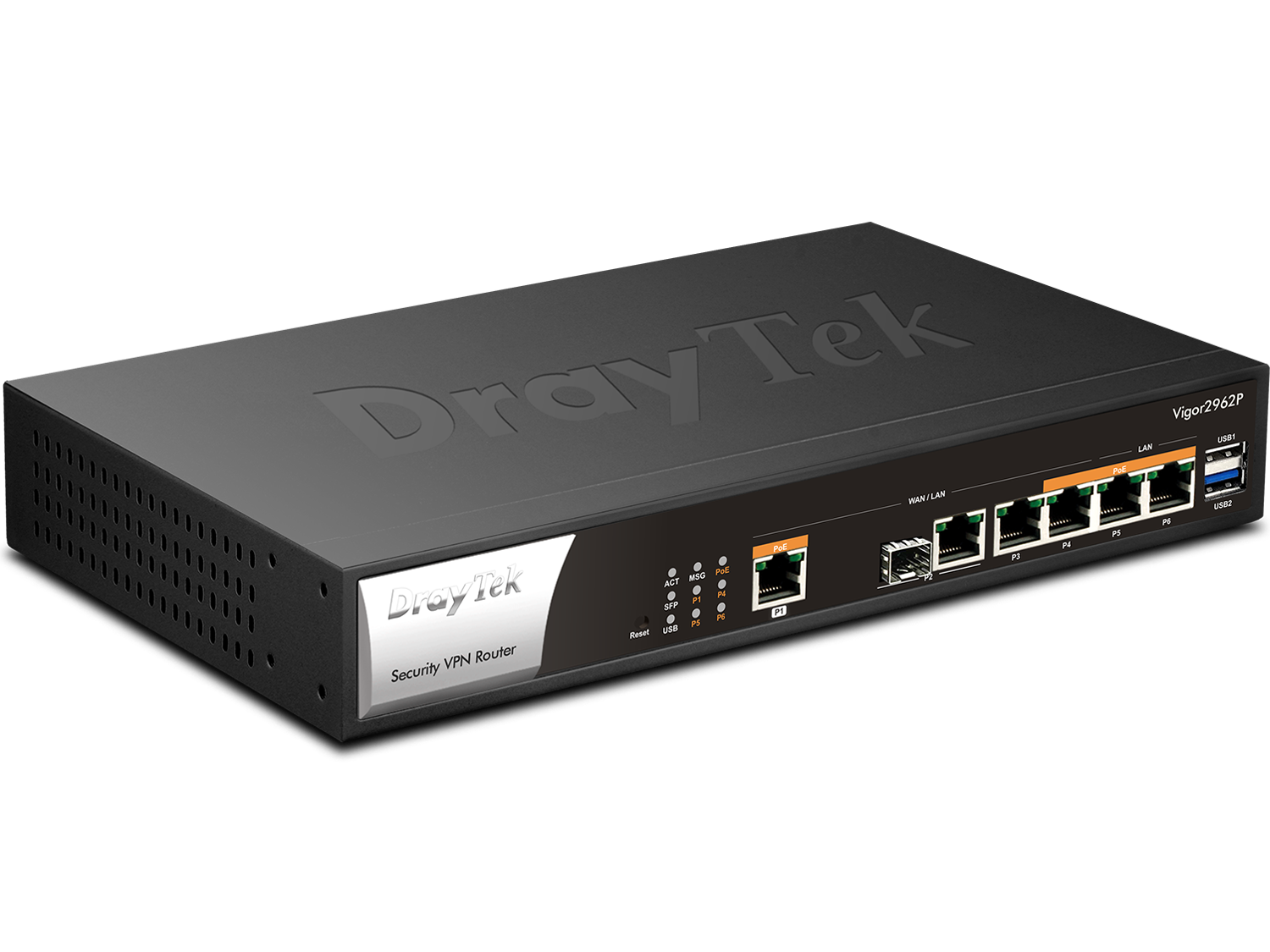

High Performance Dual-WAN Router/VPN Gateway

Vigor2962 is a high performance and dynamic firewall router with configurable WAN/LAN ports. With the selection of 2.5GbE port, 1GbE Fiber port, and 2 of 1GbE ports, users can set 2 of the ports as WAN for load balancing/failover purpose and enjoy overall 2.2Gbps NAT throughput.

- 2 Ethernet WANs
- 1 GbE/SFP Combo port
- 300k NAT Sessions
- 200 Concurrent VPN


Overview

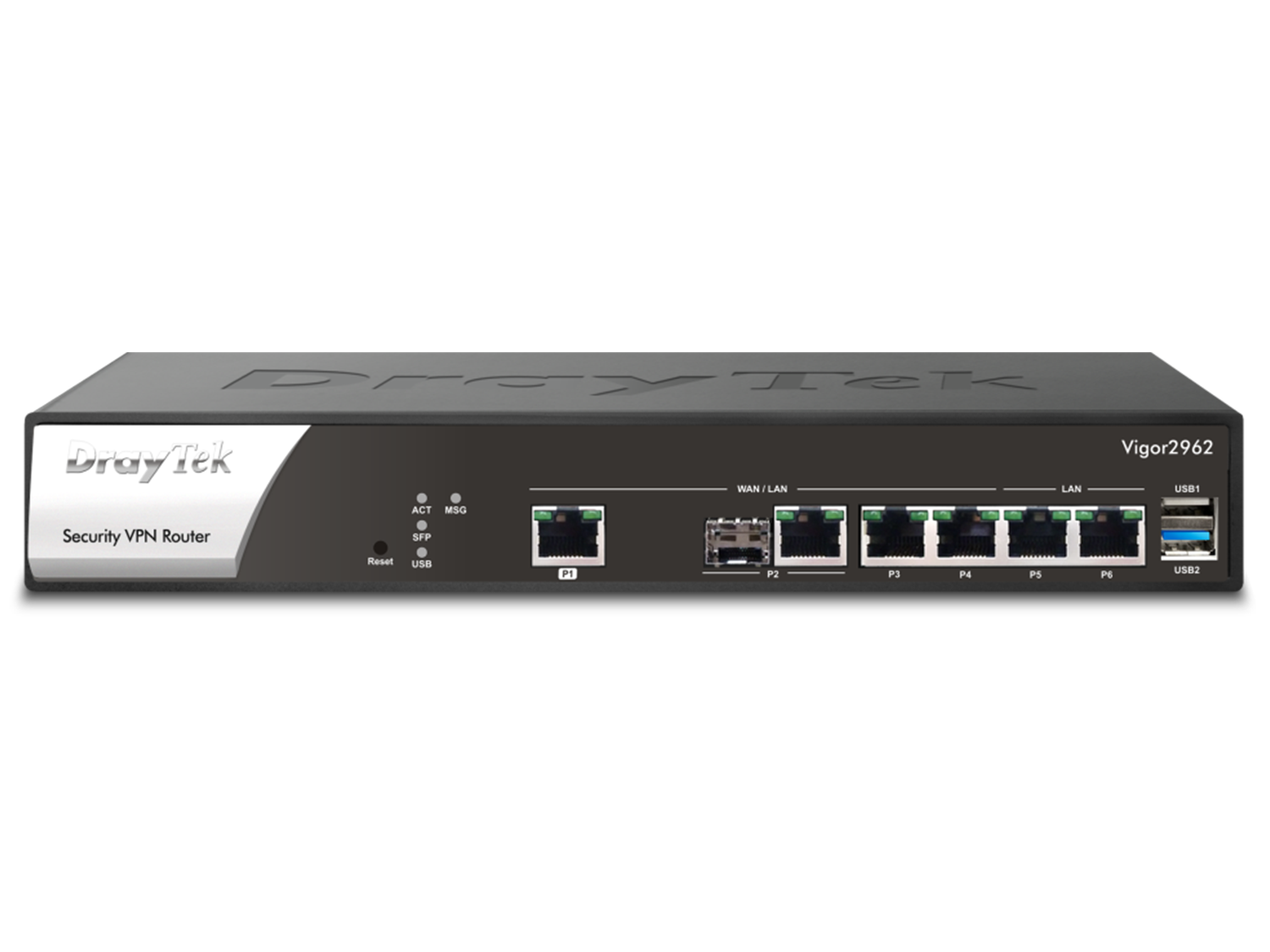

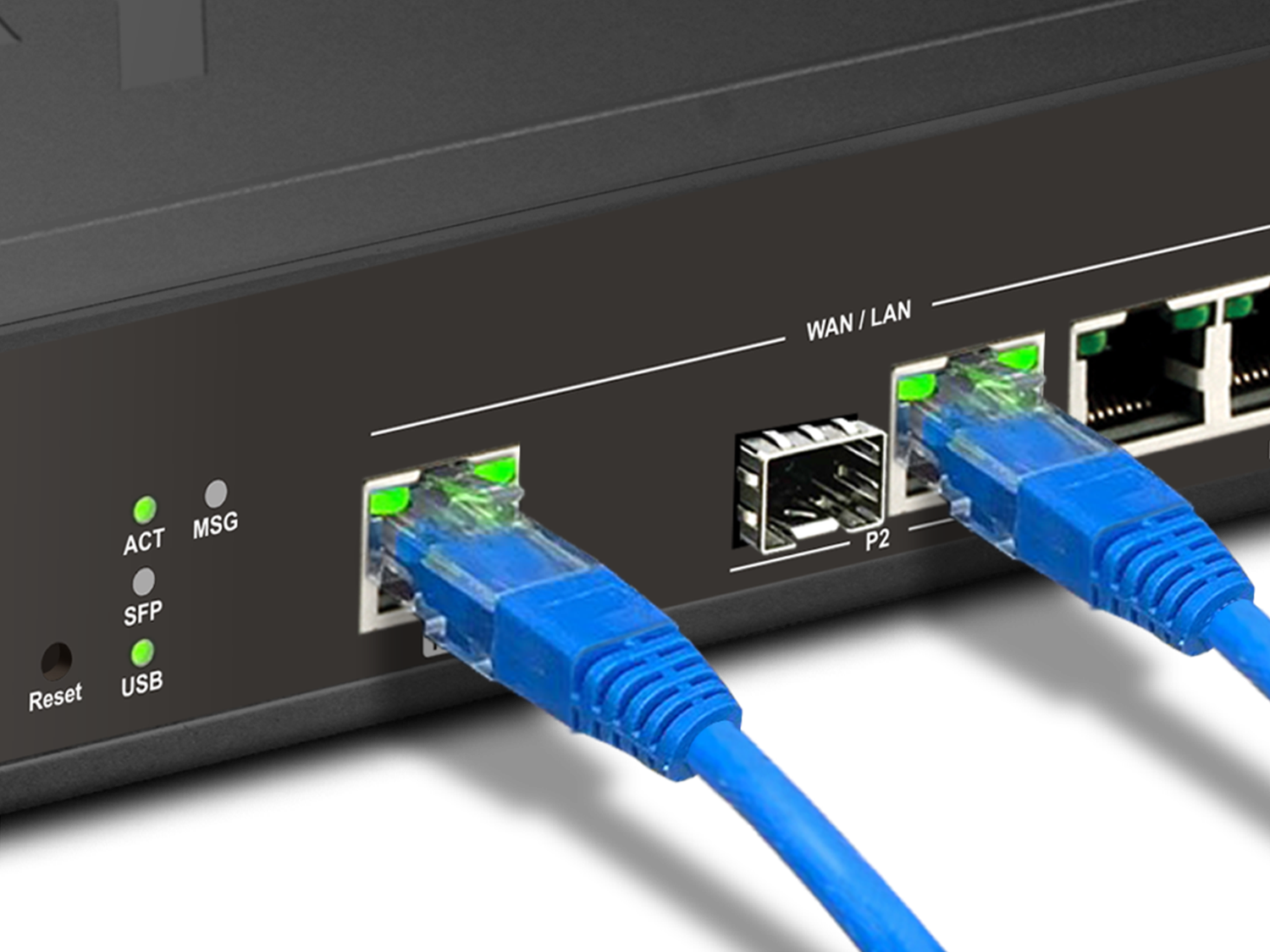

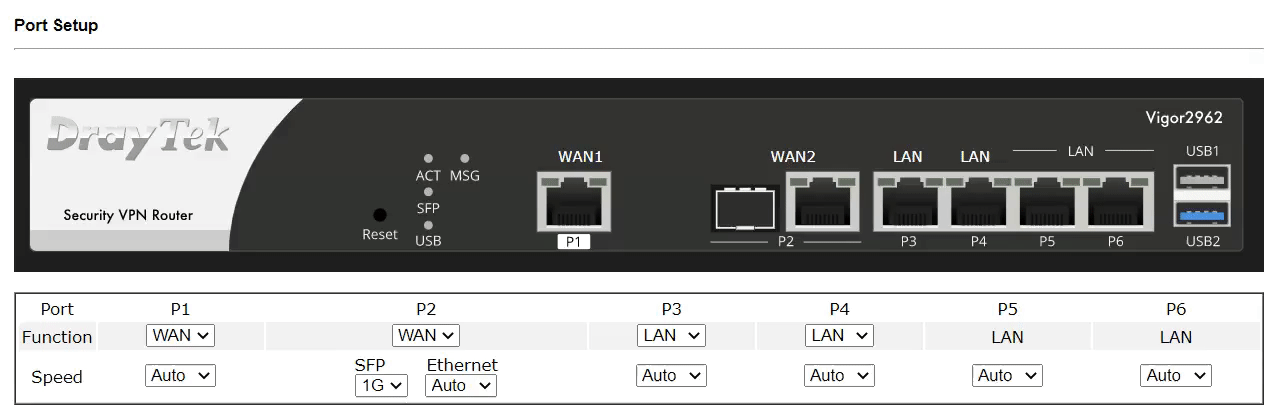

Vigor2962 Series features four configurable WAN/LAN ports, including one 2.5GbE port, one SFP/GbE combo port, and two GbE ports. Two of the four ports can be used as WAN port concurrently. Dual WAN for load balancing/failover improves Internet resilience of your business.







Specs

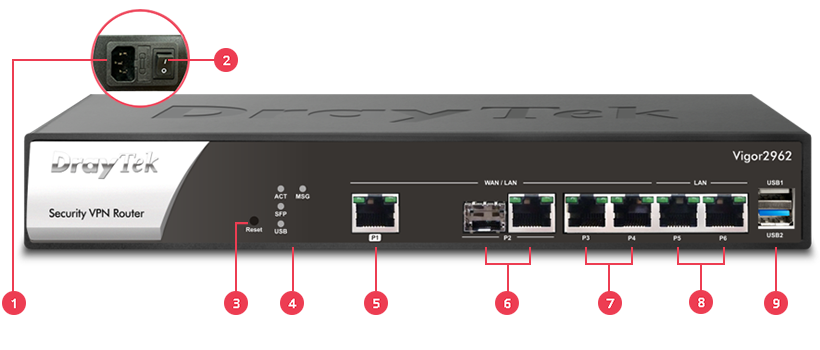

Interface
WAN/LAN Switchable Port 1x 2.5G Ethernet, RJ-45
1x GbE/SFP Combo
2x GbE, RJ-45

*up to 2 simultaneous WANs

Fixed LAN Port 2x GbE, RJ-45
USB Port 1x USB 2.0 + 1x USB 3.0 for storage* (since f/w v3.9.6)
Performance
NAT Throughput w/ Hardware Acceleration 2.2 Gbps
IPsec VPN Performance 800 Mbps (AES 256 bits)
SSL VPN Performance 500 Mbps
NAT Sessions 300,000*(since f/w v3.9.6, 150,000 with f/w v3.9.3.1 or before)
Max. Concurrent VPN Tunnels 200
Max. Concurrent OpenVPN + SSL VPN 50
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping, Strict ARP
WAN Data Budget (since f/w v3.9.6)
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 20
Number of LAN Subnet 20
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast IGMP Proxy*, Bonjour(since f/w v3.9.6)
Local RADIUS server
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Management
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Central AP Management 50 VigorAP
Central Switch Management 30 VigorSwitch
Physical
Rack Mountable Mouting Kit Included
Power Supply AC 100-240V @ 1A
Max. Power Consumption 15 watts
Dimension 273 mm x 171 mm x 45 mm
Weight 1.3 kg
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
Certificate CEFCC
Notes :
  • All specifications are subject to change without notice.

  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
