11ac Dual-Band Ceiling-Mount Wireless AP
VigorAP 912C is a ceiling-mount wireless access point for business networks. It has a capacity of up to 256 concurrent active users, ideal for a high-density environment such as a BYOD workplace. The low-profile appearance and PoE power supply provide the flexibility in deployment.
Overview
AC1200
Delivers link rate up to 1.2 Gbps
256 Active Users
At Maximum, 128 Per Radio
1 PoE LAN Port
10/100/1000M Base-T RJ-45
8 SSIDs
4 Per Radio, support 802.1q VLAN
11ac Wave 2 Technology
The VigorAP 912C supports MU-MIMO for high-density applications.

Seamless Wi-Fi Roaming

Fast & Smooth Handover
- Switch between access points seamlessly with intelligent roaming support.
- Supports Over-the-DS (via wired backbone) and Over-the-Air handoffs for reliable connectivity during video calls, voice chats, and real-time applications.
Smarter Assisted Roaming
- Signal thresholds and AP steering help devices move to stronger APs and balance network loads.
- Enjoy stable performance across all devices, everywhere.
Always Optimized for Business
- From offices to campuses, seamless roaming ensures uninterrupted mobility.
- Reliable coverage built for the demands of modern workplaces.
Management Solution
All-in-One Management

Mesh
DrayTek Wireless app support, Discovery, Auto-Provisioning, Monitoring, Centralized Hierarchy View
VigorAP-based APM
Discovery, Auto-Provisioning, Monitoring
Vigor Router-based APM
Auto-Discovery, Profile-based Auto-Provisioning, Monitoring, Centralized View, Remote VigorAP Maintenance, Wi-Fi Client Load Balancing
Software Management
Review

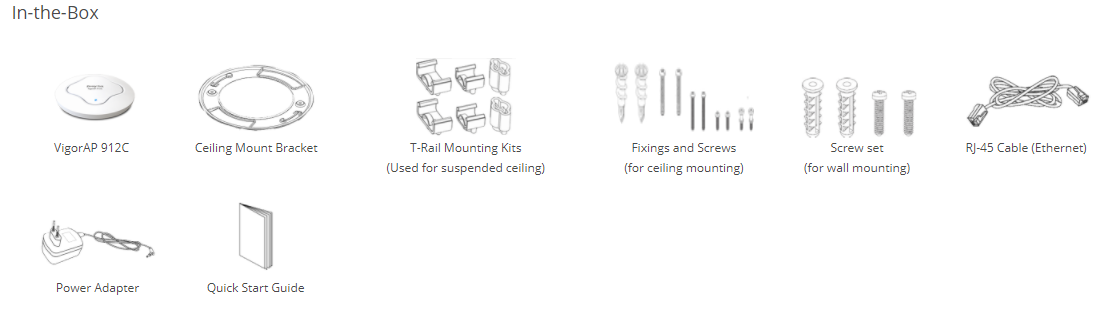

In the Box
VigorAP 912C
Ceiling Mount Bracket
T-Rail Mounting Kits
(Used for suspended ceiling)
Fixings and Screws
(for ceiling mounting)
Screw set
(for wall mounting)
RJ-45 Cable (Ethernet)
Power Adapter
Quick Start Guide
Note: The stated throughput figures are the maximums from DrayTek internal testing under optimal conditions, with Hardware Acceleration enabled where available. Actual performance may vary depending on network conditions and the applications enabled.
Key Features
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more
PoE Power Supply
Simplify the infrastructure by getting data and power through a single cable.
Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.
Multiple SSIDs
Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how
Local RADIUS Server
User profile database for local and external 802.1x authentication.
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down. Learn more
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more
Central AP Management
Manage, maintain, and monitor VigorAP 912C from the DrayTek routers. Learn more
Specs
Ports | |
| 1 GbE | 1 |
LAN | |
| DHCP | DHCP Client DHCP Server DHCP Relay Agent |
| Static IP | ✓ |
| 802.1q tag-based VLAN | ✓ |
WLAN | |
| Band Type | Dual-Band |
| Max. Clients | 256 |
| 2.4GHz WLAN | 802.11 b/g/n |
| 5GHz WLAN | 802.11 a/n/ac Wave 2 |
| Antennas | 2x Internal PiFA DB |
| 2.4GHz Antenna Gain (dBi) | 3 |
| 5GHz Antenna Gain (dBi) | 5 |
| 2.4GHz Max. Link Rate (Mbps) | 300 |
| 5GHz Max. Link Rate (Mbps) | 867 |
| Operating Mode | AP Mesh Root Mesh Node Range Extender |
| Max. Number of SSIDs (per band) | 8 (4) |
| MAC Address Filter (Max. entry number per SSID) | 256 |
| Security Mode | OWE WEP WPA WPA2/WPA WPA2 WPA3/WPA2 WPA3 |
| Authentication | Enterprise, Personal |
| WMM | ✓ |
| AirTime Fairness | ✓ |
| Band Steering | ✓ |
| Roaming | AP-Assisted Roaming PMK-Caching Pre-Authentication 802.11r |
| WPS | PBC(via WUI), PIN |
| WDS | Repeater |
System Maintenance | |
| Syslog | ✓ |
| SNMP | v1, v2c, v3 |
| Firmware Upgrade | TFTP, TR-069, WUI |
| Backup/Restore | ✓ |
Management | |
| Service Control | HTTP HTTPS Telnet |
| Mesh | Node, Root |
| Virtual AP Controller (Device up to) | 20 |
| VigorConnect Management (Since f/w) | V1.3.2 |
| VigorACS Management (Since f/w) | V1.3.1 |
PoE | |
| PoE Input Power Supply | 48-56V @ 0.3A |
| PoE Input | PoE+ (802.3af/at) |
Physical | |
| Environment | Indoor |
| Mounting | Wall / Ceiling |
| Powered via | DC / PoE |
| Power Input | 12V DC @ 1.0A |
| Max. Power Consumption (watts) | 10 |
| Dimension (mm) | 176 x 176 x 30 |
| Weight (g) | 307 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note:
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
