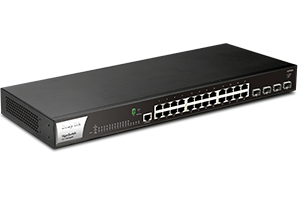

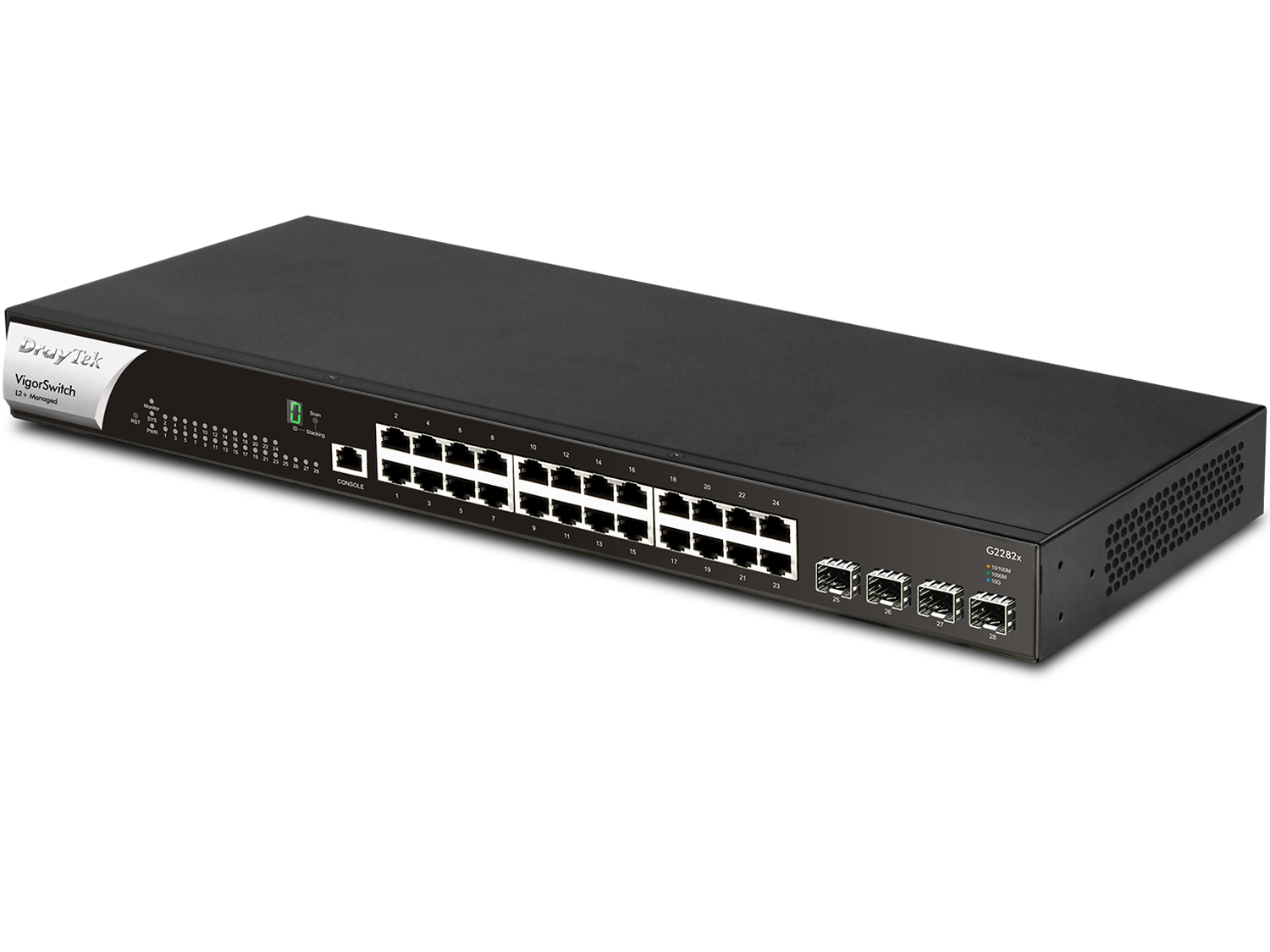

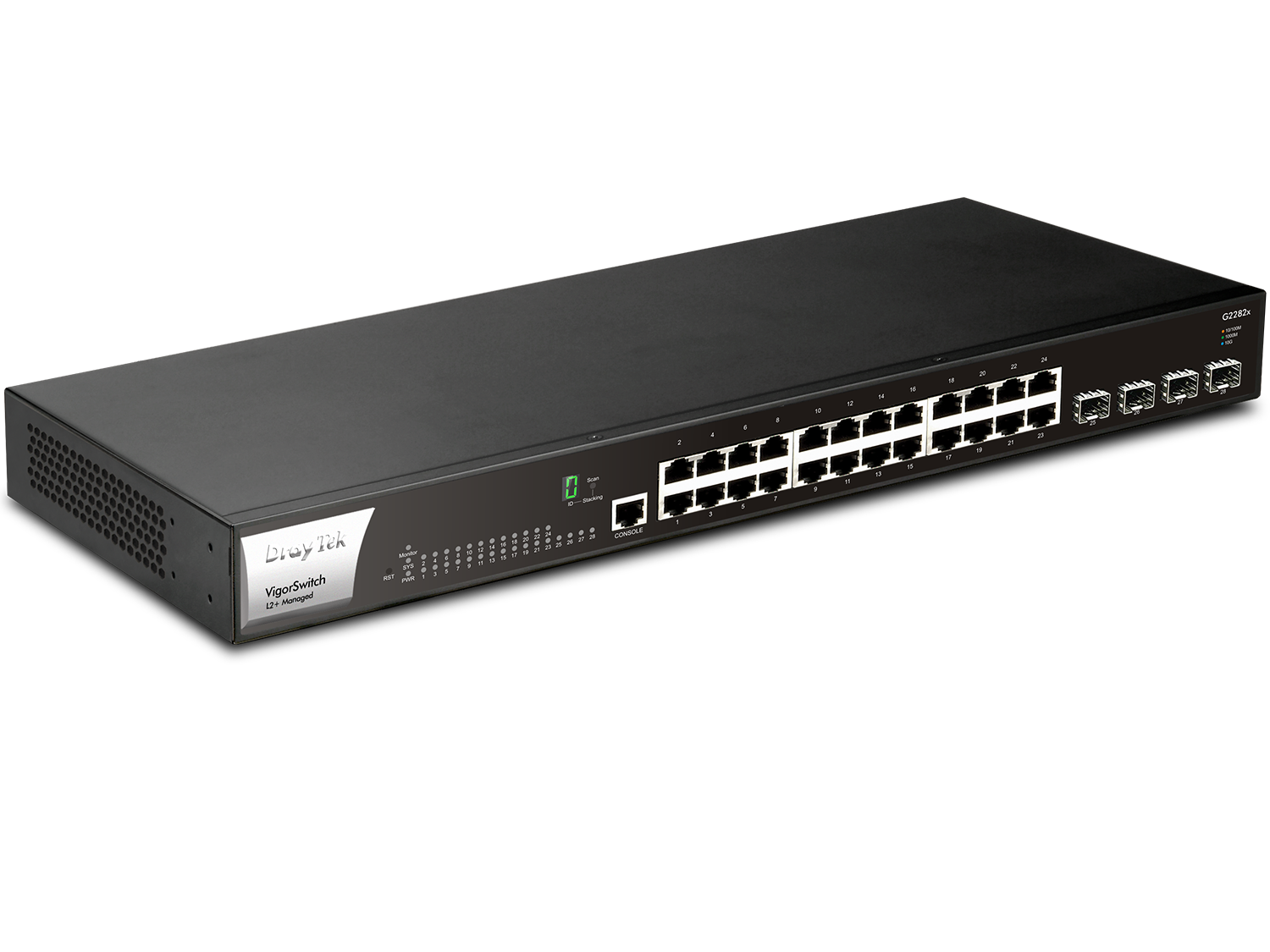

28-Port L2+ Managed 10G Switch
DrayTek VigorSwitch G2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch G2282x also provide a DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.
Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.
Product information from DrayTek.
Overview
24x GbE
10/100/1000Mbps Ethernet, RJ-45
4x 10G SFP+
1000Mbps/10Gbps fiber slot
128 Gbps
Switching Capacity
Backup Power
DC 12V redundant power socket

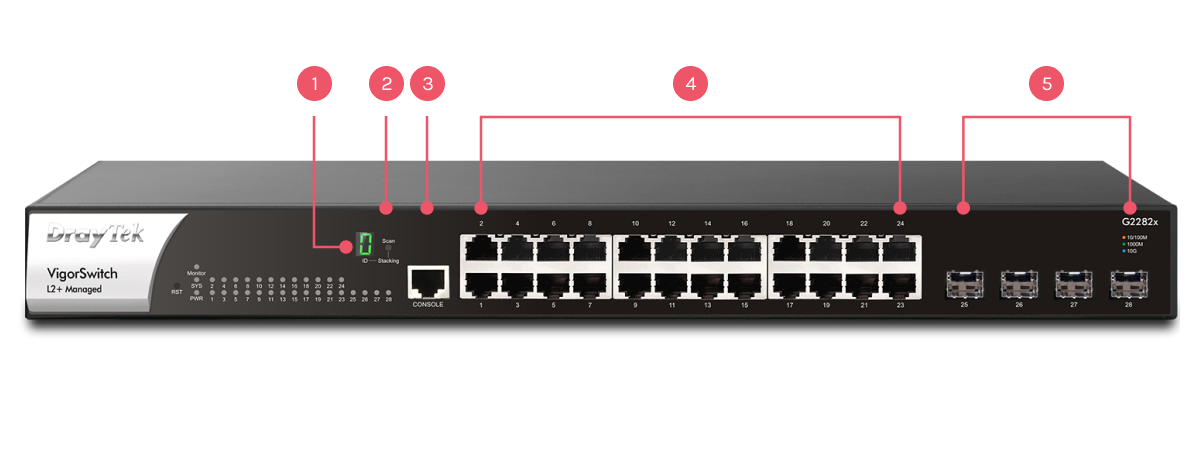

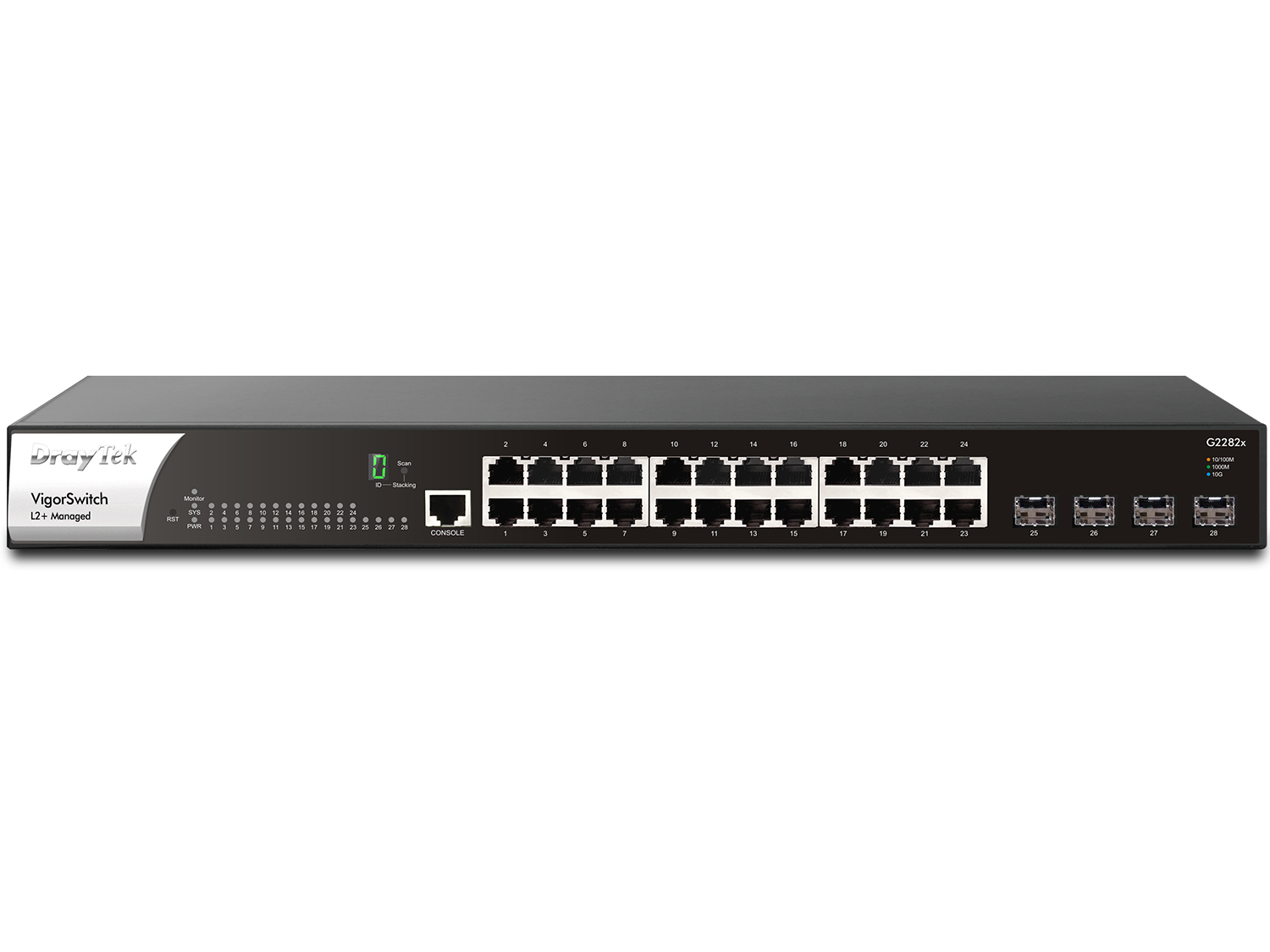

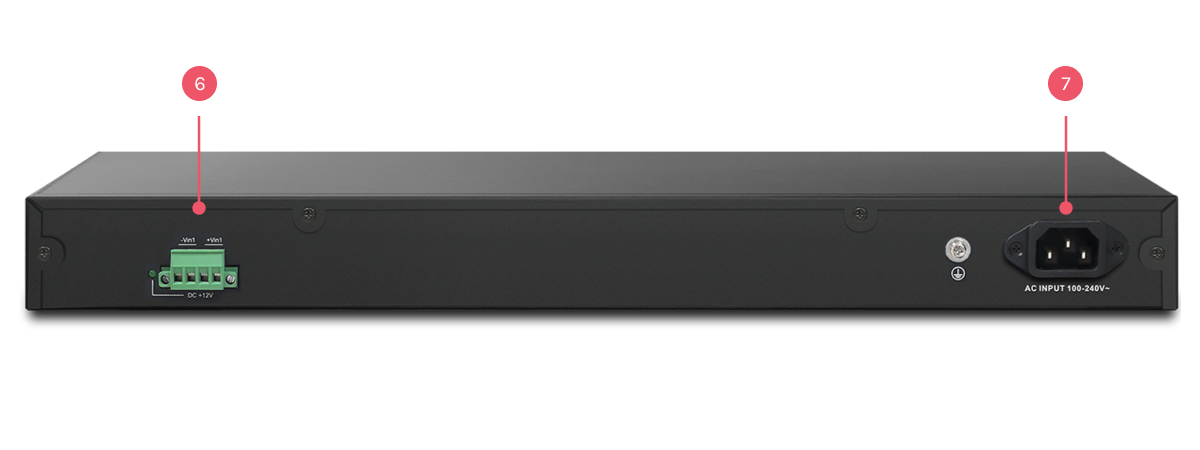

Interface
1Stack ID Indicator
2Stacking Button
3Console Port
424x Gigabit Ethernet
54x SFP+ Port

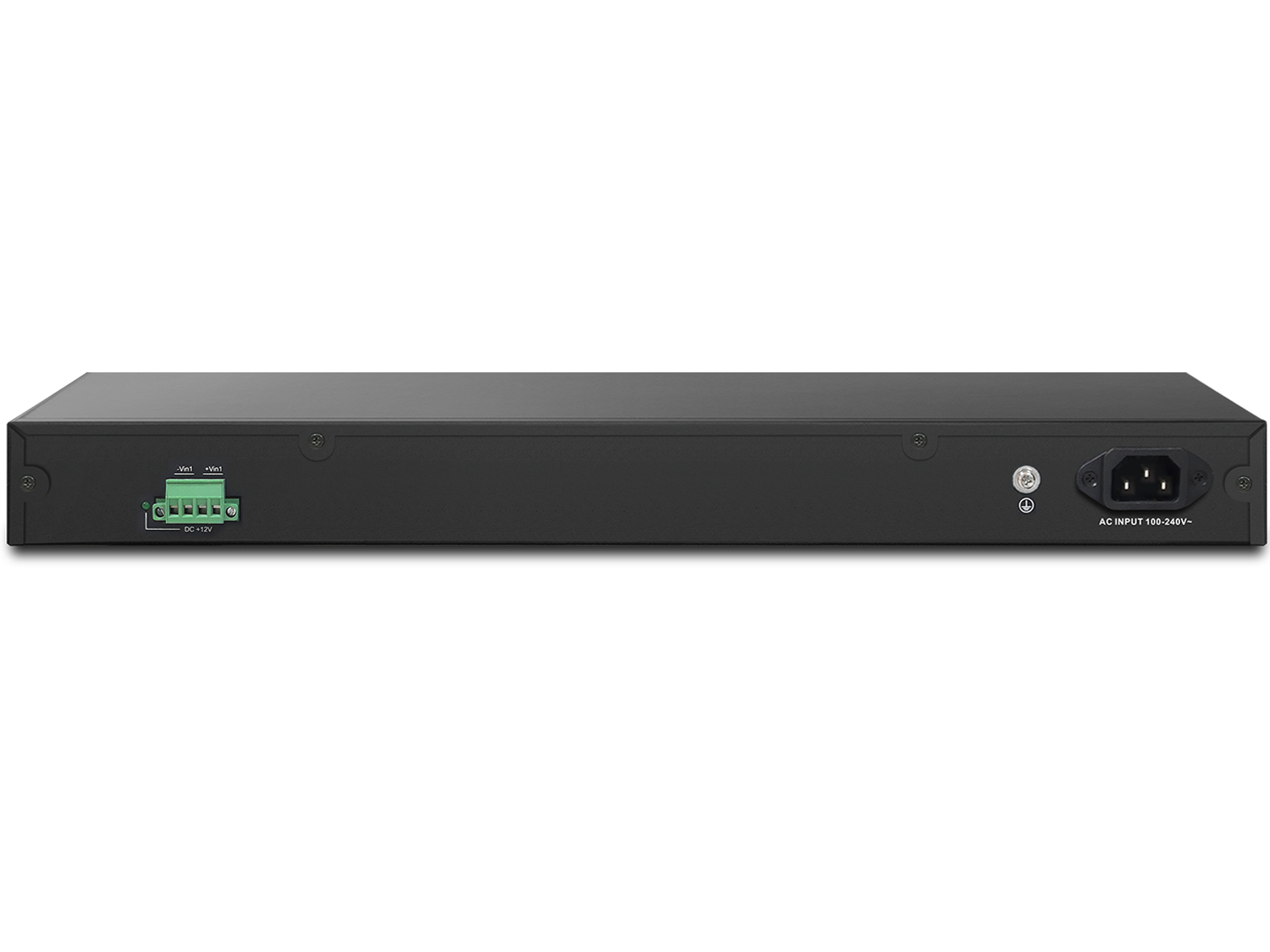

61x DC Power Socket (backup usage)
7AC Power Supply
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.

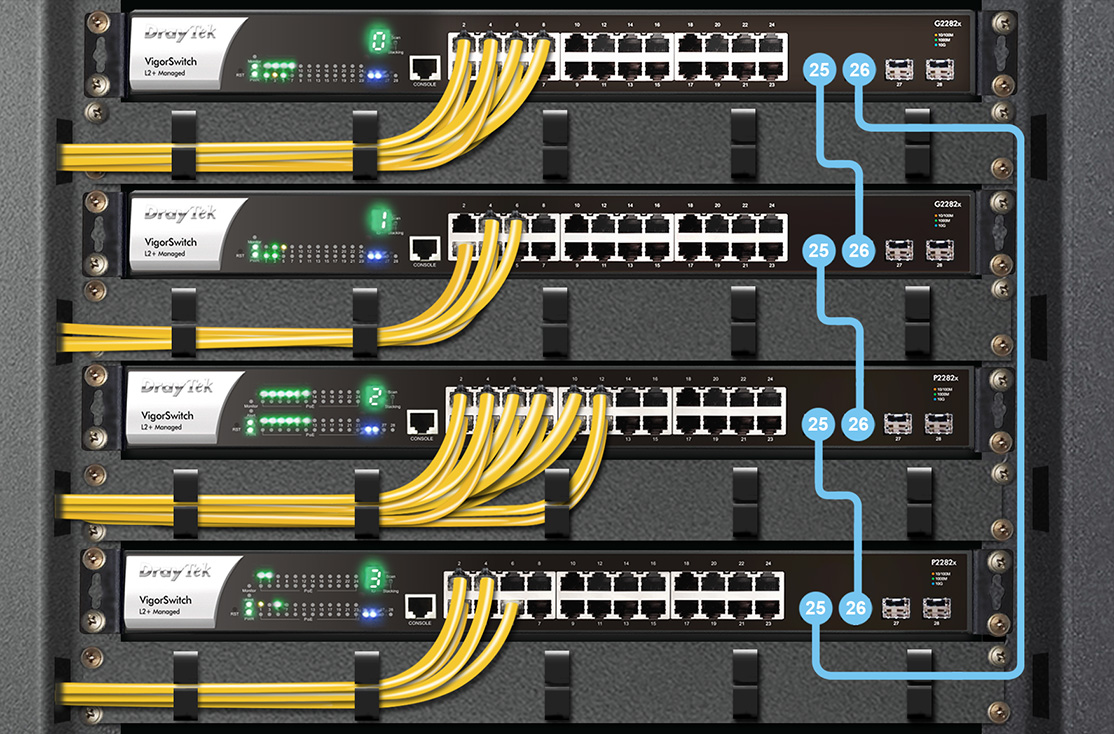

Stacking — Build a Resilient & Flexible Network
With stacking support (Since firmware v2.10.1), up to 4 VigorSwitch G2282x units can operate as one logical switch*. It enables centralized management, unified configuration, and seamless failover, allowing the network to grow stronger, smarter, and always stay online.
Centralized Management by Single IP
Manage all stacked switches under one IP.
Scalability & Expansion
Stack up to 4 units to scale up to 96 Ethernet ports and 8x 10G SFP+ uplinks.
Config & Firmware Sync
Auto-sync VLAN, QoS, and firmware for consistent setup.
Resilience & Failover
Master switch failure ensures nonstop operation.
Integrated Security
DHCP Snooping, ARP Inspection, and Port Security across the stack.
Layer 2 Feature Integration
STP, LAG, and GVRP for redundancy and VLAN automation.
Unified Monitoring & Diagnostics
Real-time traffic view, SNMP, Syslog, and Port Mirroring support for remote monitoring and troubleshooting.
Stacking is supported only between models with the same port configuration (e.g., P2282x with G2282x), not across different series.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Monitor. Detect. Recover.
Automatically monitor ONVIF cameras and receive alerts when a camera becomes unavailable.
The latest snapshot helps identify the affected location quickly, while PoE auto recovery can help restore camera operation automatically.
Key Benefits
- Snapshot Alerts
- Camera Monitoring
- Auto Recovery
- Faster Response
- Reduced Downtime

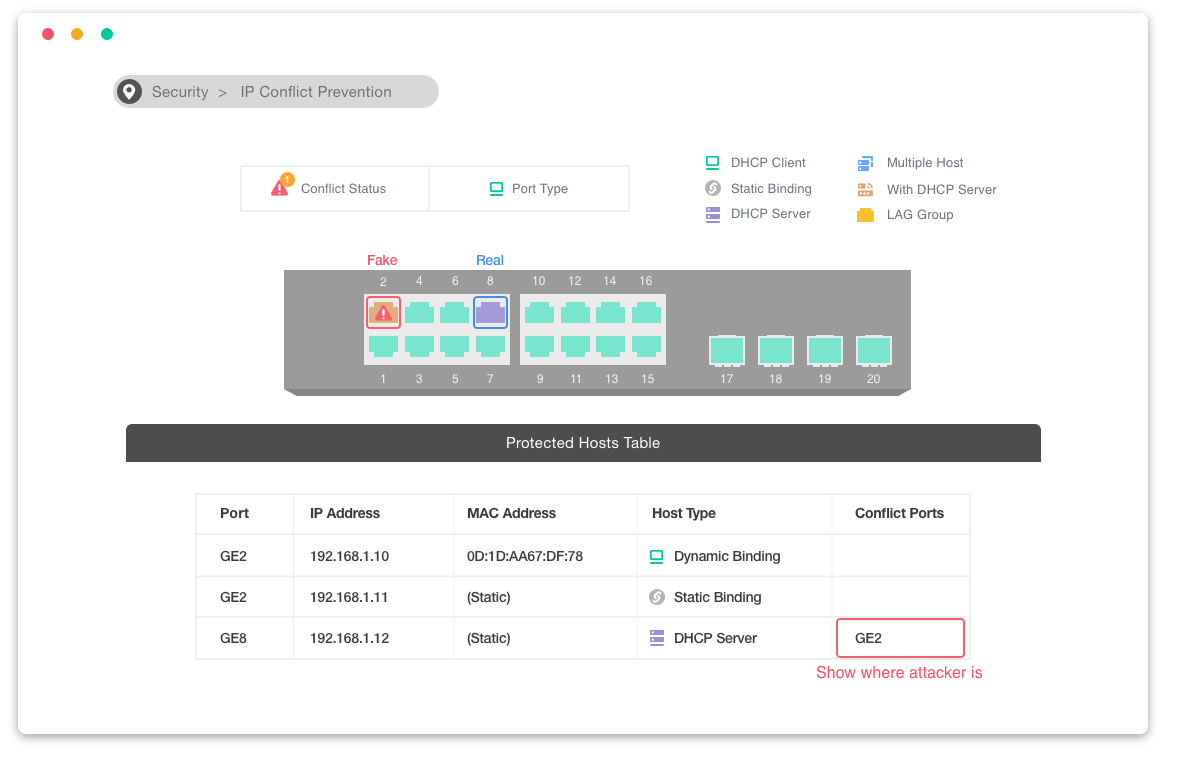

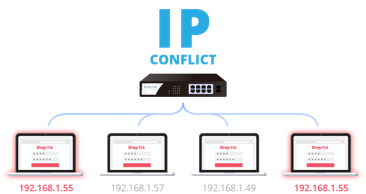

IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there’s log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There’s no need to log in to each device’s management page.
Management Solution
All-in-One Management
VigorRouter SWM
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report
VigorConnect
- AP/Switch Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch Maintenance
- Scheduled Maintenance
In the Box
VigorSwitch G2282x
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide
Related Products
VigorSwitch P2282x
– 24x PoE/PoE+ GbE ports
– 4x 10G fiber SFP+
– L2+ Managed
– 128G Switching Capacity
– 400W PoE Power Budget
– Backup DC power input
– 1U Rackmount
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
Key Features
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch G2282x to route the inter-VLAN traffic directly and offload the router.
Stacking
Stacking lets multiple switches function as one, improving network management, scalability, and resilience.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IPv6 Ready
VigorSwitch G2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
Access Control
VigorSwitch G2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
LLDP-MED
Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic for smoother VoIP deployment.
Specs
Performance |
|
| Buffer Size (Mbit) | 12 |
| Switching Capacity (Gbps) | 128 |
| Forwarding Rate (64 bytes)(Mpps) | 95.2 |
| MAC Address Table | 16K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | ✓ |
Ports |
|
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
Standard Compliance |
|
| Ethernet Standards | 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3ae 10GBase-X 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
Spanning Tree |
|
| STP | ✓ |
| RSTP | ✓ |
| MSTP | ✓ |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | ✓ |
Stacking |
|
| Max. Stackable Devices | 4 |
| Stacking Topology | Line, Ring |
VLAN |
|
| Max. Number of VLAN | 512 |
| VLAN Type | 802.1q Tag-based VLAN MAC-based VLAN Protocol-based VLAN Management VLAN Voice VLAN Surveillance VLAN |
| GVRP | ✓ |
| QinQ (Basic) | ✓ |
Layer3 Features |
|
| Static Route | ✓ |
| VLAN Route | ✓ |
| DHCP Server | ✓ |
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | ✓ |
| MVR (Multicast VLAN Registration) | ✓ |
ONVIF Surveillance |
|
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance | Device Info Network Settings Time Settings Reboot Reset to Factory Default |
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) | CoS DSCP CoS-DSCP IP Precedence |
| Rate Limiting | ✓ |
Security |
|
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | ✓ |
| IP Source Guard | ✓ |
| Traffic Control | Storm Control, DoS Defense |
| Dynamic ARP Inspection (DAI) | ✓ |
| DHCP Snooping | ✓ |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
Management |
|
| Local Service | HTTP HTTPS Telnet SSH v2 |
| Config Backup/Restore | ✓ |
| Dual Image | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| sFlow | ✓ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| LLDP-MED | ✓ |
| Mail Alert | Port Status Port Speed System Restart PoE Warning IP Conflict Hardware Monitor Device Check ONVIF IP Cam Snapshot |
| VigorRouter Management (SWM) | ✓ |
| VigorConnect Management (Since f/w) | V2.9.1 |
| VigorACS Management (Since f/w) | V2.9.1 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 0.7A |
| Backup Power Input | DC 12V @ 3A |
| Max. Power Consumption (watts) | 36 |
| Dimension (mm) | 440 x 205 x 44 |
| Weight (g) | 2690 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
Note:
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
