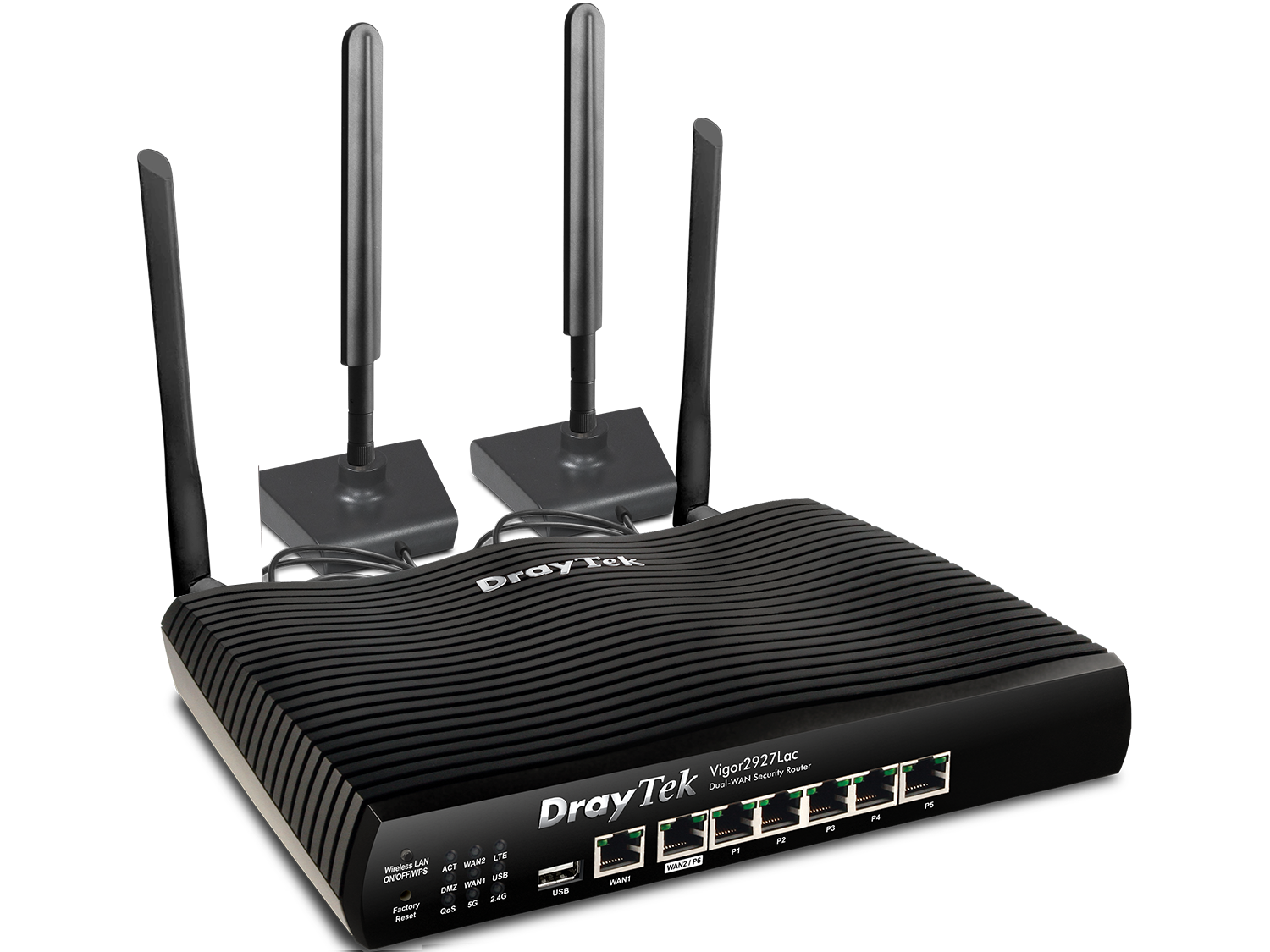

4G LTE Embedded Dual-WAN VPN Firewall Router

  • 2 Gigabit Ethernet WAN ports for Load Balancing or Failover
  • 4G/LTE Connectivity with Built-In sim card slot.
  • 2 USB ports for 3G/4G modem or extra storage
  • Built-in 802.11ac Wave 2 dual-band Wi-Fi, delivers speed up to 1.7Gbps (ac/Vac model)
  • 50 simultaneous VPN Tunnels
  • SPI Firewall with Content Filtering by URL Keyword, Category, and Apps
  • Central Management for Vigor AP and Vigor Switch
  • Supports DrayDDNS

Overview

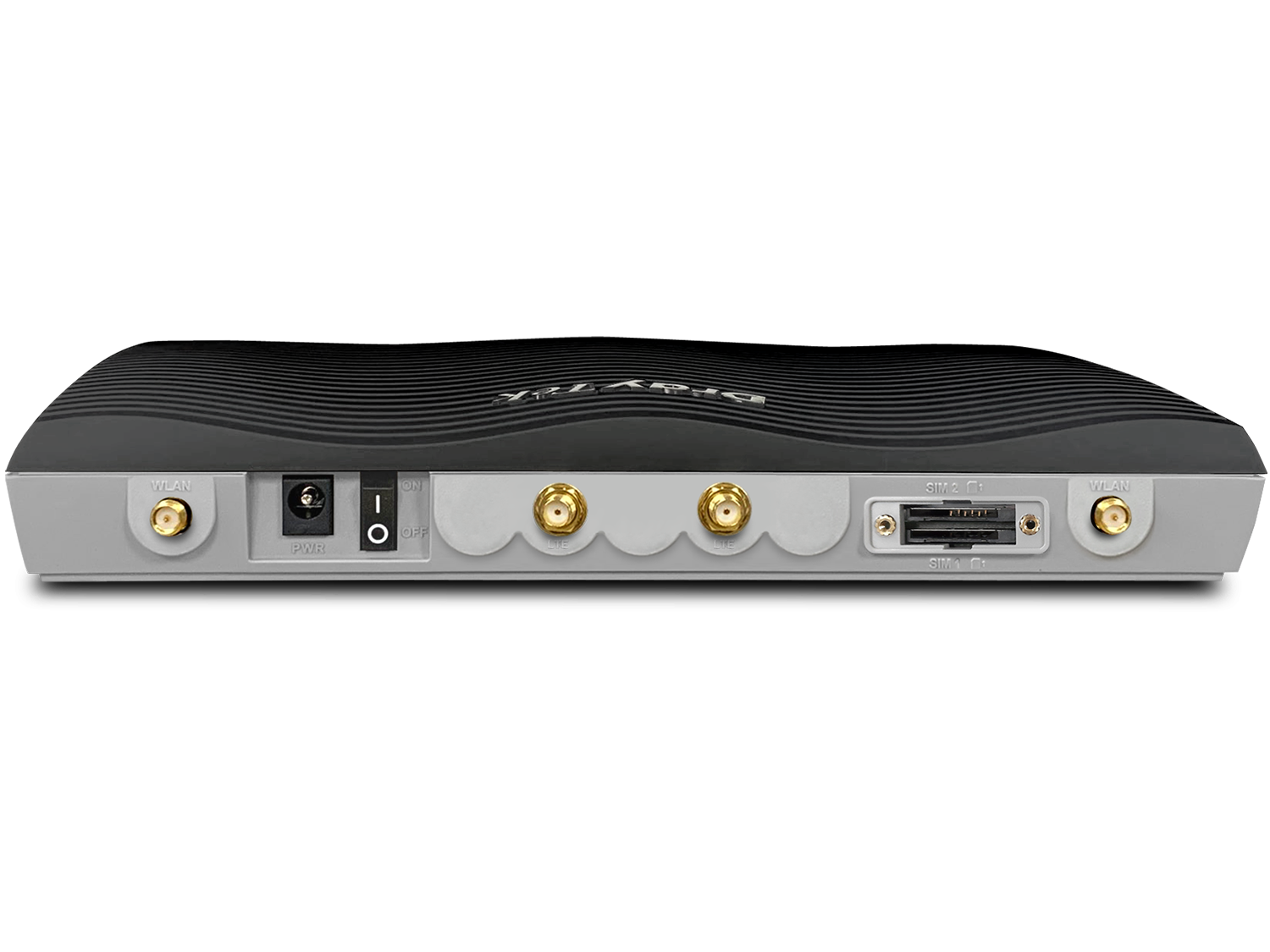

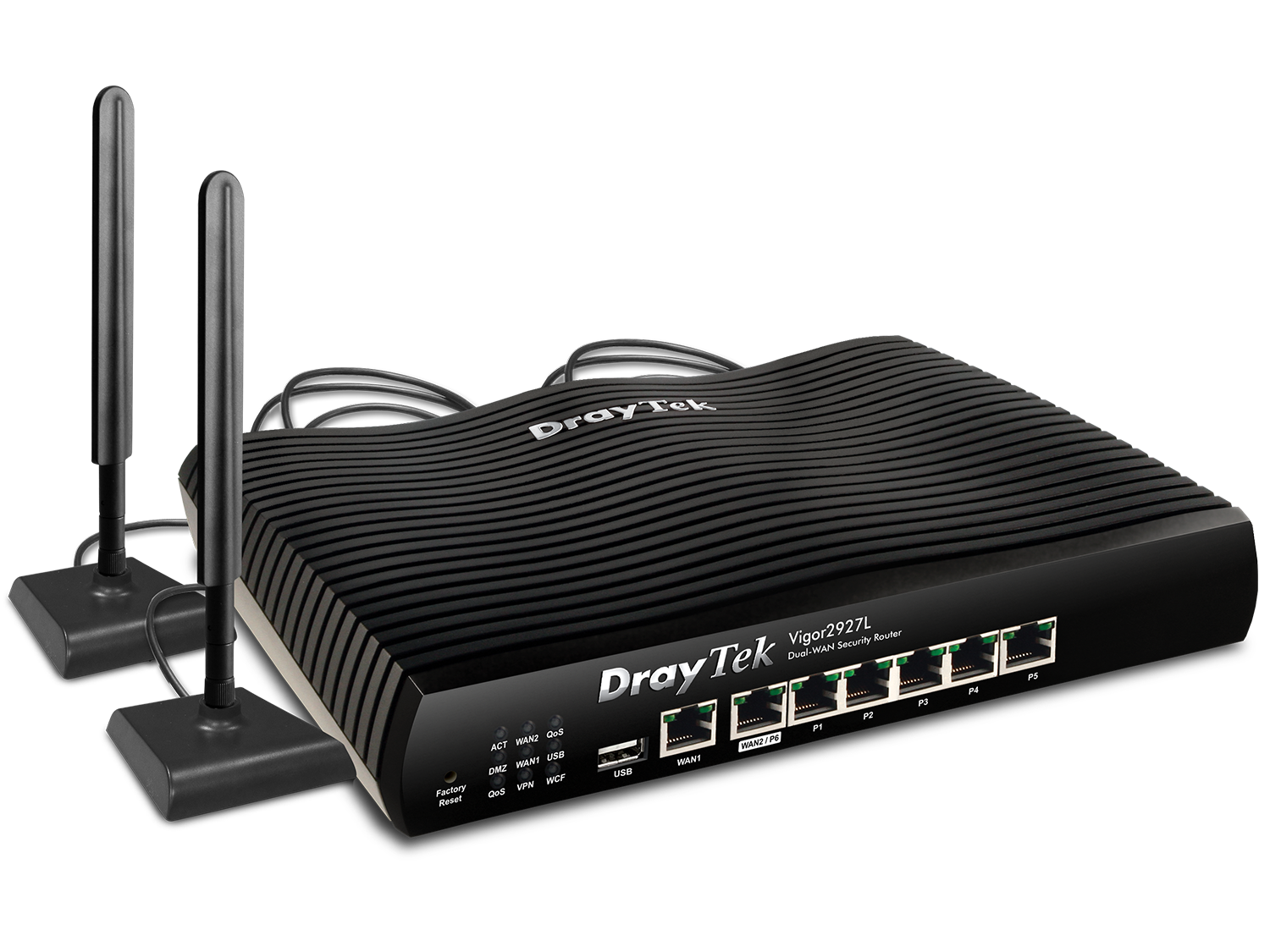

Vigor2927 LTE Series is a dual-Ethernet WAN firewall router with embedded 4G/LTE connectivity. Embedded 2 SIM slots (1 SIM online at a time) and compliant with LTE Cat 6 to deliver the lightning speed of up to 300/50 Mbps (DL/UL), providing load-balancing and failover for your business continuity. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, this is the ultimate router that does it all for SMB. The series includes built-in 802.11ac Wave 2 Wi-Fi models.

Vigor2927 Series provides reliable broadband connectivity with the multi-WAN accesses. The two Gigabit Ethernet WAN ports can be operated in failover or load balancing mode to ensure a steady Internet connection. The two USB ports can work with 3G/4G/LTE USB modem to add additional wireless Internet access.

Vigor2927 Series also covers comprehensive functions, including VLAN, Bandwidth Management, Quality of Service, DNS Control, SPI Firewall, Web Content Filtering, and Central Management solutions to provide a reliable and secure business network.



WAN Load Balancing and Failover

Vigor2927 Series has two Gigabit Ethernet WAN ports that can be used for any types of connection, 3G/4G/LTE USB modem can also be attached to the USB ports of the router, and offer wireless Internet connectivity in case the fixed lines are not available. All of the WAN interfaces can be configured to be operated in either Load Balancing mode, which will be active all the time, or in Failover mode, which will be active only when detecting connection loss or heavy load on the primary connection.

On Vigor2927 Series, Load Balancing can be either IP-based mode, which will distribute the packets destined to different IP address across different WANs, or Session-based mode, which allows the packets of different sessions to take different paths, which means a multiple-session connection can be established across multiple WANs, and use multiple WAN's bandwidth at the same time. Policy-based Load Balancing is also supported so that you may specify the path for some certain packets.

To increase network accessibility, Vigor2927 Series also supports High Availability feature and allows one or more redundant Vigor2927 Series to be added to the network and operated in standby mode.



Flexible LAN Management

The 5-port Gigabit Ethernet switch on the LAN side provides high-speed connectivity for the servers and PCs on the local network, and the Virtual LAN (VLAN) feature allows you to separate the LAN clients into different logical domains thus to increase the security and network efficiency. Vigor2926 Series support 802.1Q standard and can build a Tag-based VLAN system with an 802.1Q-support switch, Port-based VLAN is also supported that each LAN port can be configured as a member of different VLAN and be isolated from each other without the use of VLAN tag.



Firewall and Security

Vigor2927 Series supports Stateful Packet Inspection (SPI) Firewall and flexible filtering rules, it can accept or deny packets based on the information in the packet header (such as source IP, destination IP, protocol, and port number) or the packet's application. IP-based restrictions can be set to filter certain HTTP traffic as well as various application software and help you to prevent time and network resource wasting on inappropriate network activities.

With an annual subscription to Cyren Web Content Filtering service, you may also filter the websites by their categories, and set up restrictions to block the whole categories of websites (such as Social Networking, Gambling.. etc.) without the need to specify every site you would like to block. The Cyren service is constantly updating the categorization, and a free 30-day trial is included in each new router.

The Vigor2927 Series firewall also includes DoS (Denial of Service) Defense to protect the network against variants of attacks.



Comprehensive VPN

Vigor2927 Series supports both LAN-to-LAN VPN and Remote Dial-in VPN, up to 50 VPN tunnels can be set up simultaneously. All the industry standard tunneling protocols are supported, including PPTP, L2TP, IPsec, and GRE, and it's compatible with 3rd party VPN devices.

Vigor2927 Series also support SSL VPN - a type of VPN based on the very common encryption method which is used by all the HTTPS websites. While the traditional VPN protocols might be filtered by the firewall and NAT of public networks, SSL VPN will be passed as long as the HTTPS is allowed. DrayTek also offers free official client App for Windows, iOS, and Android.

VPN Trunking is also supported by Vigor2927 Series, this allows you to establish two VPN tunnels to the same remote site but through different WAN interfaces. The two trunking tunnels can be set up in load balancing or failover mode.



Centralized Management

Vigor2927 Series can be the central management portal for all the Vigor devices on the same network, including VigorAPs and VigorSwitches, which allows the administrator to manage all the devices through a single portal. Vigor2927 Series also embeds CVM (Central VPN Management), an easier way for Network administrator to establish and manage VPN connections between several CPEs (VPN Client). The router itself supports TR-069 protocol and can be remotely managed and monitored through the TR-069-based VigorACS system, thus to reduce the need for on-site technicians.

Models



Model WAN Port 2.4GHz WLAN 5GHz WLAN Wireless Antenna VoIP Gateway FXS RJ11
Vigor2927 GbE, RJ-45 - - - - -
Vigor2927ac GbE, RJ-45 Yes Yes 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) - -
Vigor2927Vac GbE, RJ-45 Yes Yes 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) Yes 2
Vigor2927L GbE, RJ-45 - - - - -
Vigor2927Lac GbE, RJ-45 Yes Yes 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) - -
Application

Multi-site Business Deployment




Comprehensive Firewall


802.11ac Wave 2 (ac/Vac model)

802.11ac Wave 2 can simultaneously stream to multiple users to maximize bandwidth utilization




Central Management




Support Smart Monitor up to 30 PC Users




Flexible Installation with Rackmount

Specs

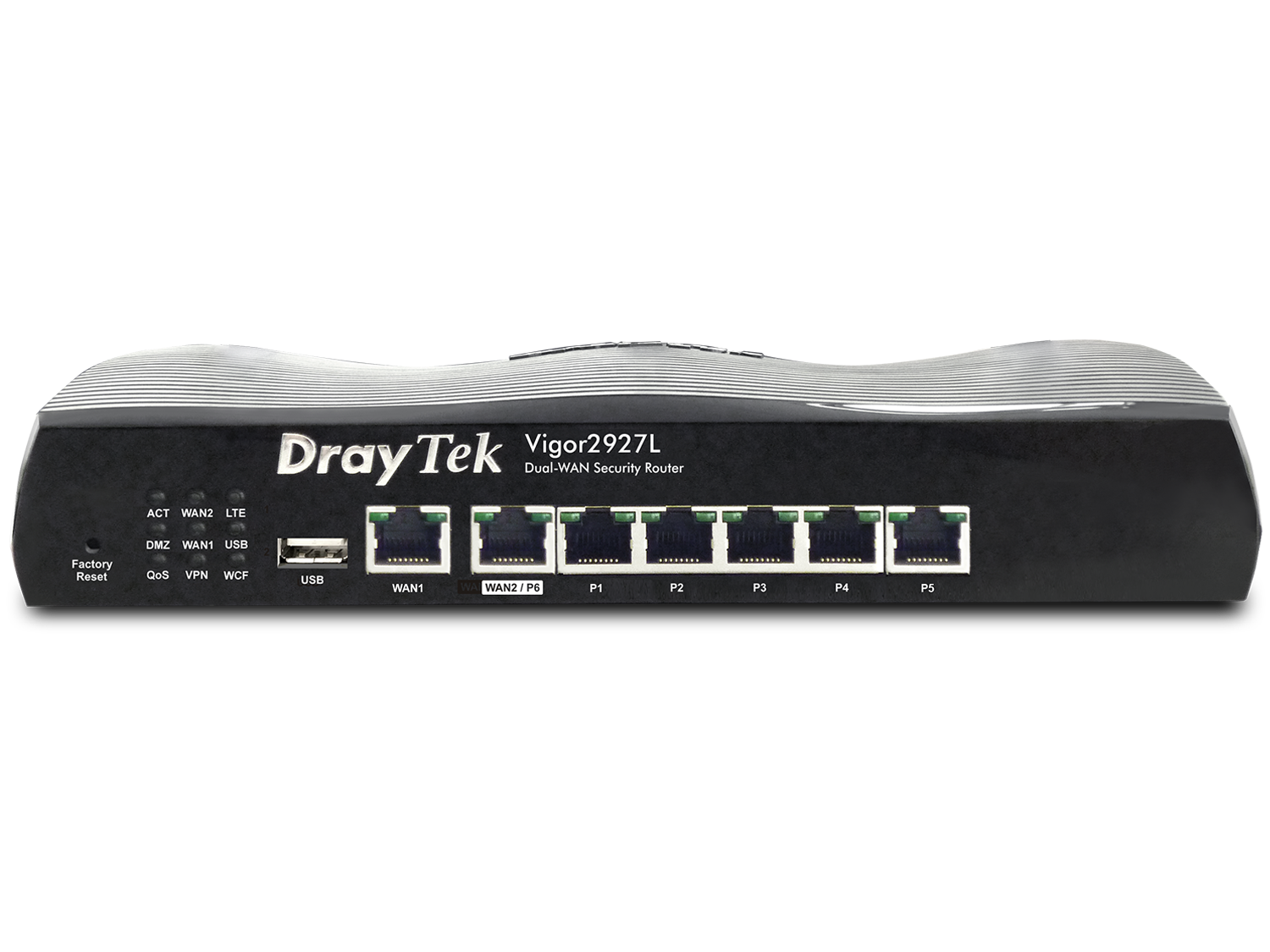

Interface
Fixed WAN Port1x GbE RJ-45
WAN/LAN Switchable Port1x GbE RJ-45
Fixed LAN Port5x GbE RJ-45
USB Port2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
RJ-11 Port for Voice2x FXS (V model)

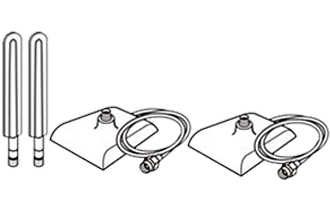

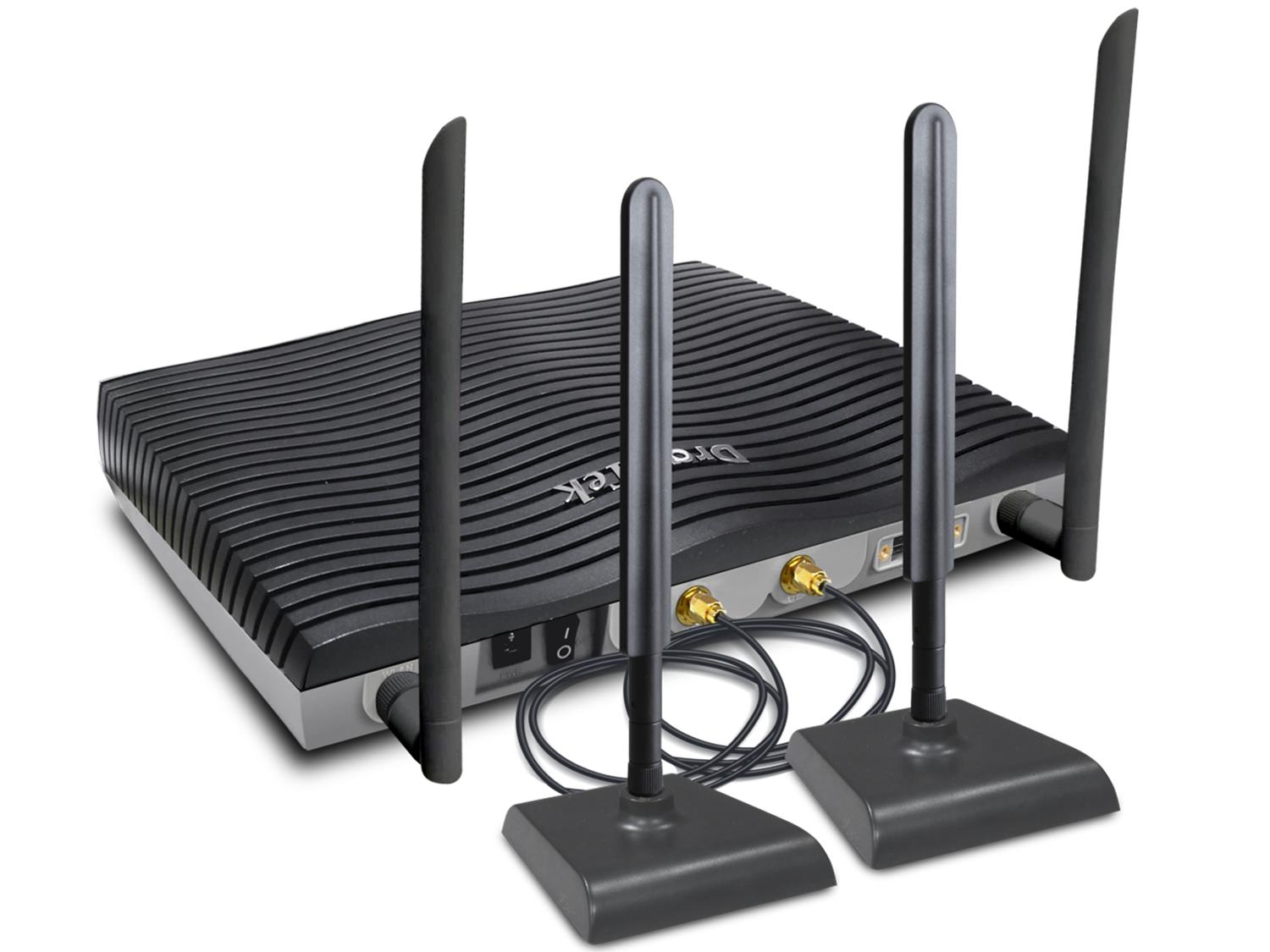

Wi-Fi Antenna2x External Dipole
Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
(wireless model)
2.4G WLAN802.11n 2x2 MIMO 400Mbps (wireless model)
5G WLAN802.11ac Wave 2 2x2 MU-MIMO 867Mbps (dual-band model)
Performance

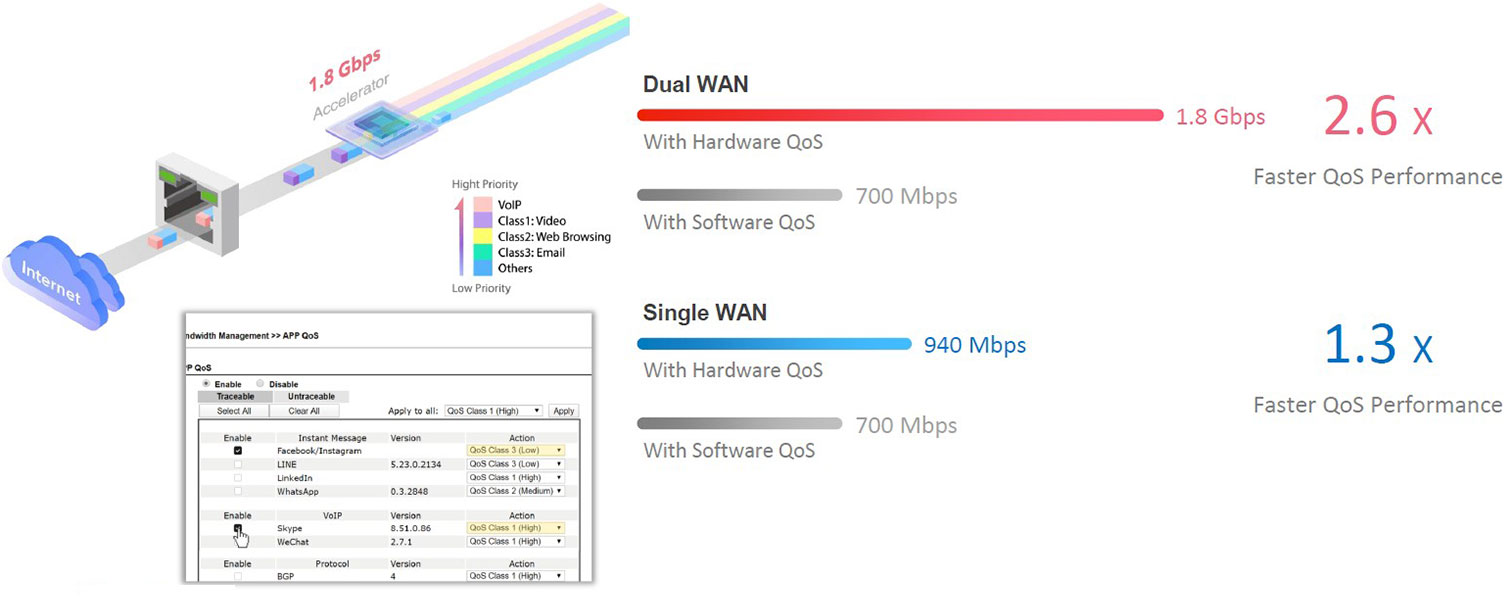

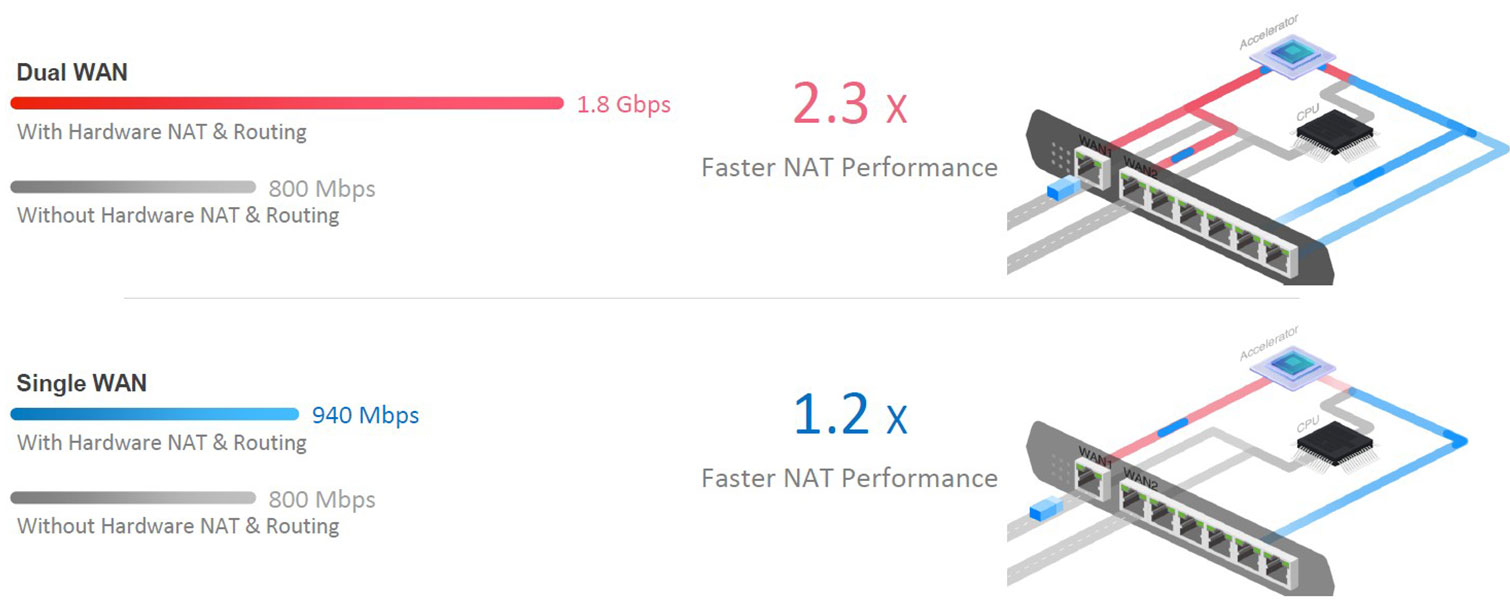

NAT Throughput800 Mbps
NAT Throughput w/ Hardware Acceleration940 Mbps (Single WAN)
1.8 Gbps (Dual WAN)

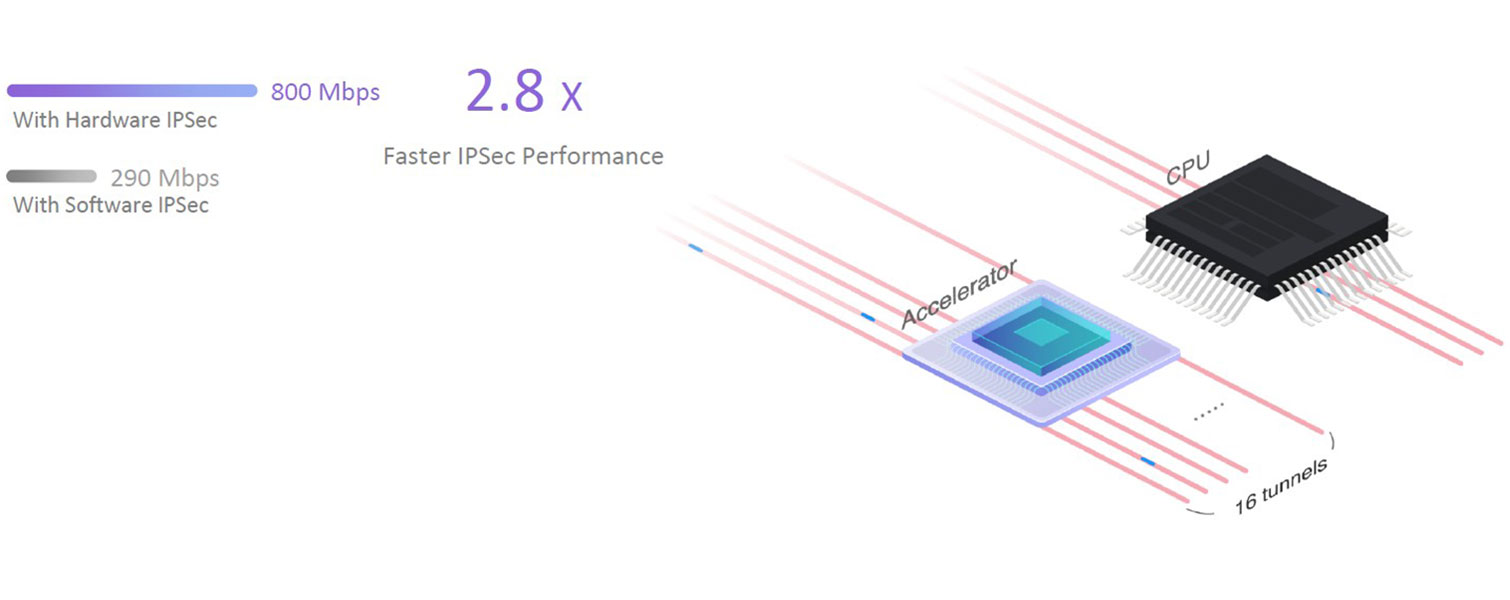

IPsec VPN Performance290 Mbps (AES 256 bits)
SSL VPN Performance120 Mbps
Max. Number of NAT Sessions60,000
Max. Concurrent VPN Tunnels50
Max. Concurrent OpenVPN + SSL VPN25
Internet Connection
IPv4PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Wireless WAN (ac model)
3G/4G/LTE WAN with USB modem
Load BalancingIP-based, Session-based
WAN Active on DemandLink Failure, Traffic Threshold
Connection DetectionARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN802.1q Tag-based, Port-based
Max. Number of VLAN16
Number of LAN Subnet8
DHCP ServerMultiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot AuthenticationClick-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
RoutingIPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based RoutingProtocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
MulticastIGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Local RADIUS server
SMB File Sharing (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
ProtocolsPPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User AuthenticationLocal, RADIUS, LDAP, TACACS+, mOTP
IKE AuthenticationPre-Shared Key, X.509
IPsec AuthenticationSHA-1, SHA-256
EncryptionMPPE, DES, 3DES, AES
VPN Trunk (Redundancy)Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NATPort Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)SIP, RTSP, FTP, H.323
VPN Pass-ThroughPPTP, L2TP, IPsec
IP-based Firewall Policy
Content FilteringApplication, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit

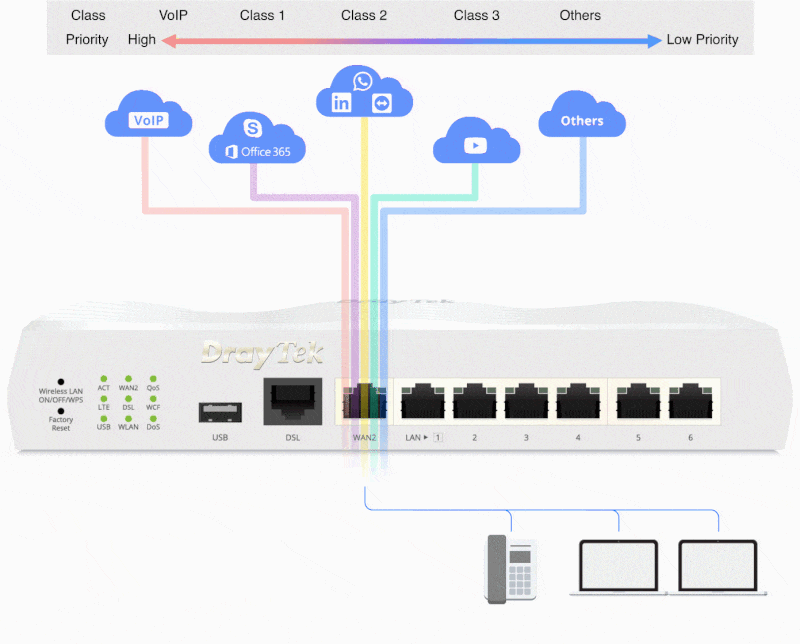

QoS (Quality of Service)TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Wireless LAN (ac model)
Number of SSID4 per radio band
Security ModeWEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
AuthenticationPre-Shared Key, 802.1X
WPSPIN, PBC
WDSRepeater (5GHz only)
Access ControlAccess List, Client Isolation, Hide SSID, WLAN Scheduling
AirTime Fairness
Band Steering (ac model)
MU-MIMO (5GHz Only) (ac model)
WMM
VoIP Gateway (V model)
ProtocolSIP, RTP/RTCP, ZRTP
SIP Registrars12
Dial PlanPhone Book, Digit Map, Call Barring, Regional
Call FeaturesCall Waiting, Call Transfer, Scheduled DND, Hotline
Voice CodecG.711 A/u law, G.723.1, G.726, G.729 A/B
Caller IDFSK_ETSI, FSK_BELLCORE, DTMF
Management
Local ServiceHTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Config File CompatibilityVigor2926
Firmware UpgradeTFTP, HTTP, TR-069
2-Level Administration Privilege
Access ControlAccess List, Brute Force Protection
Notification AlertSMS, E-mail
SNMPv1, v2c, v3
Syslog
Managed by VigorACS
Central VPN Management8 VPN
Central AP Management20 VigorAP

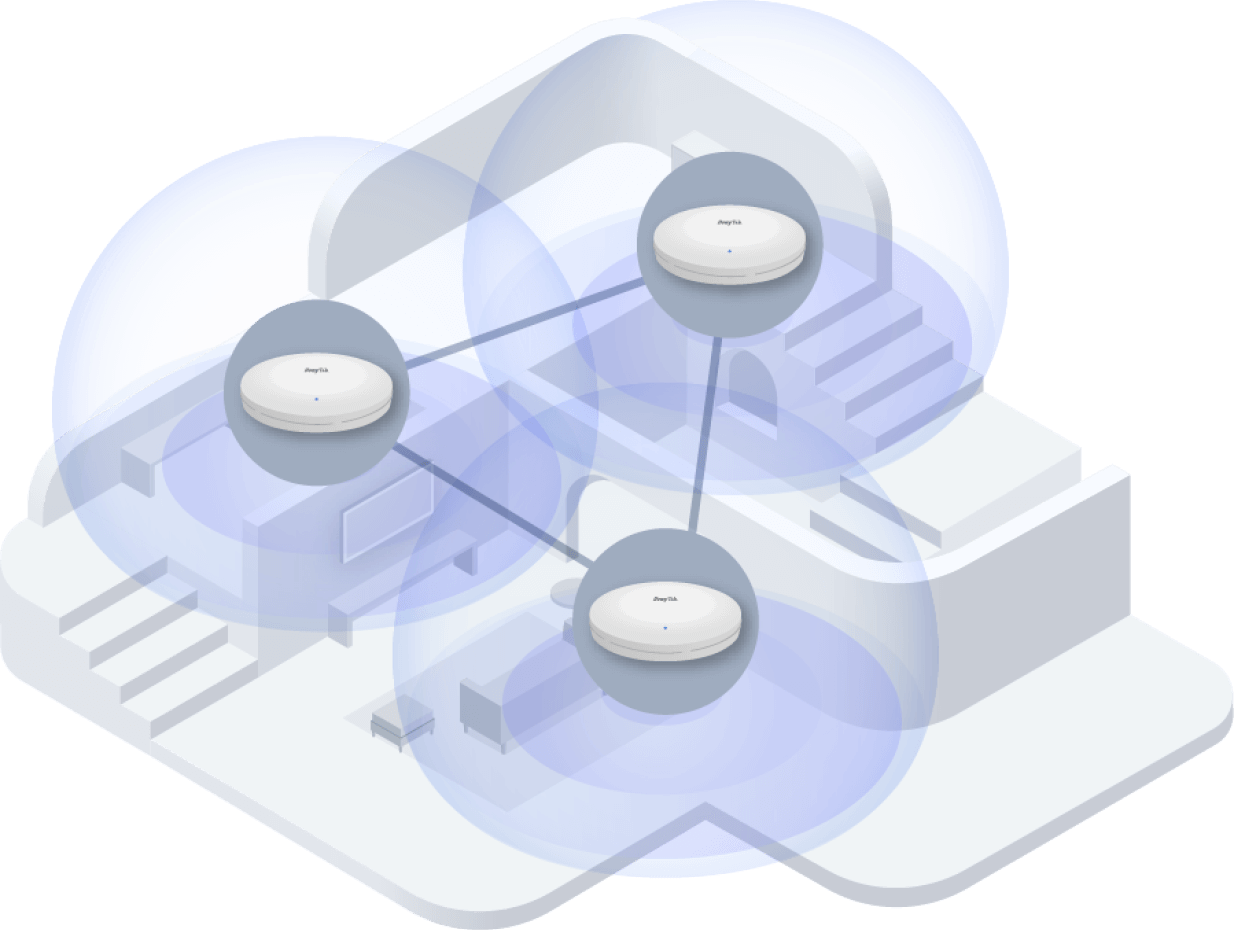

Mesh Network7 VigorAP
Central Switch Management10 VigorSwitch
Physical
Power SupplyDC 12V @ 2A
Max. Power Consumption24 watts (ac model)
Dimension241mm x 165mm x 44mm
Weight630g (ac model)
Operating Temperature0 to 45°C
Storage Temperature-25 to 70°C
Operating Humidity (non-condensing)10 to 90%
CertificateCE NCC
