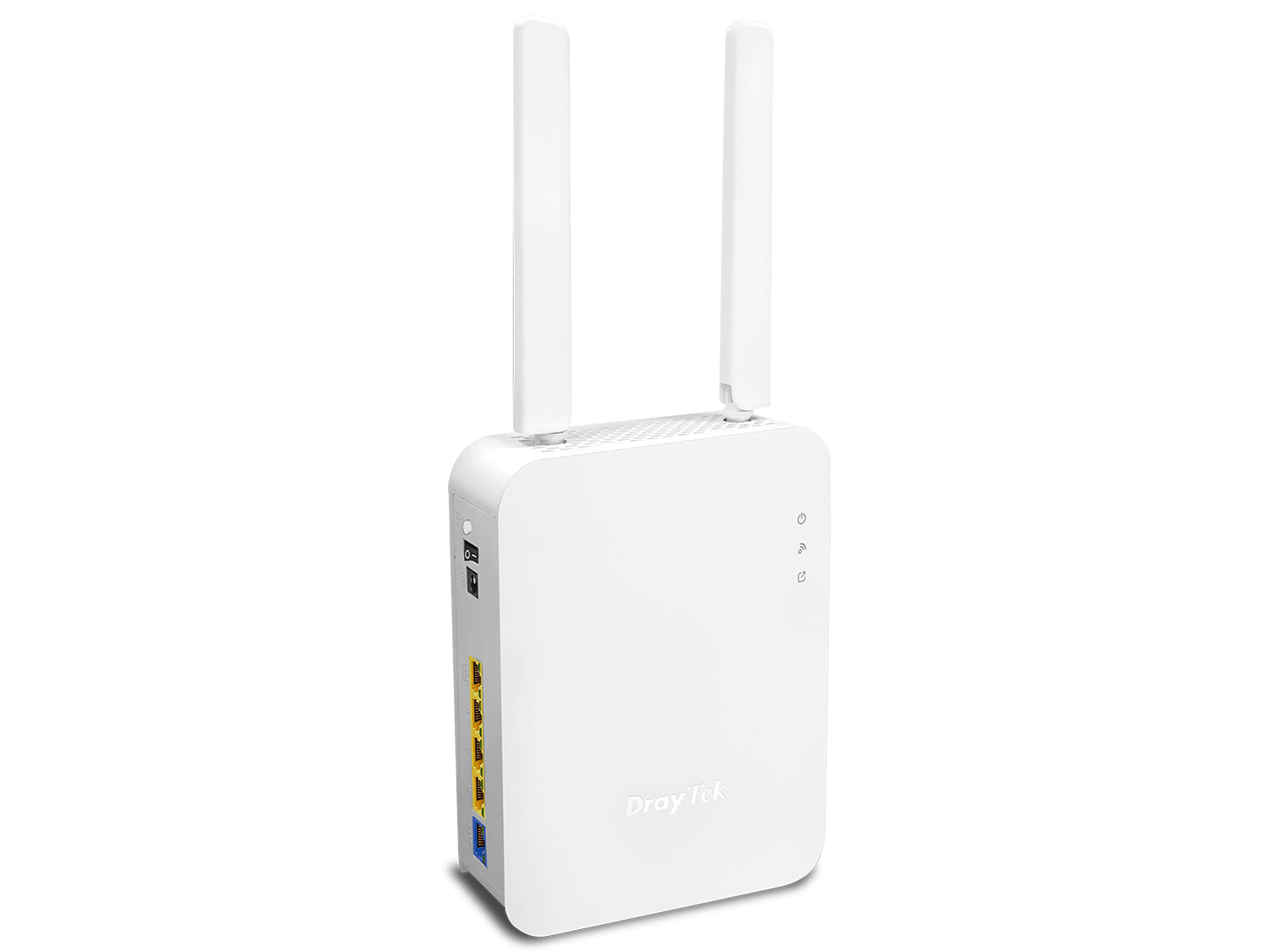

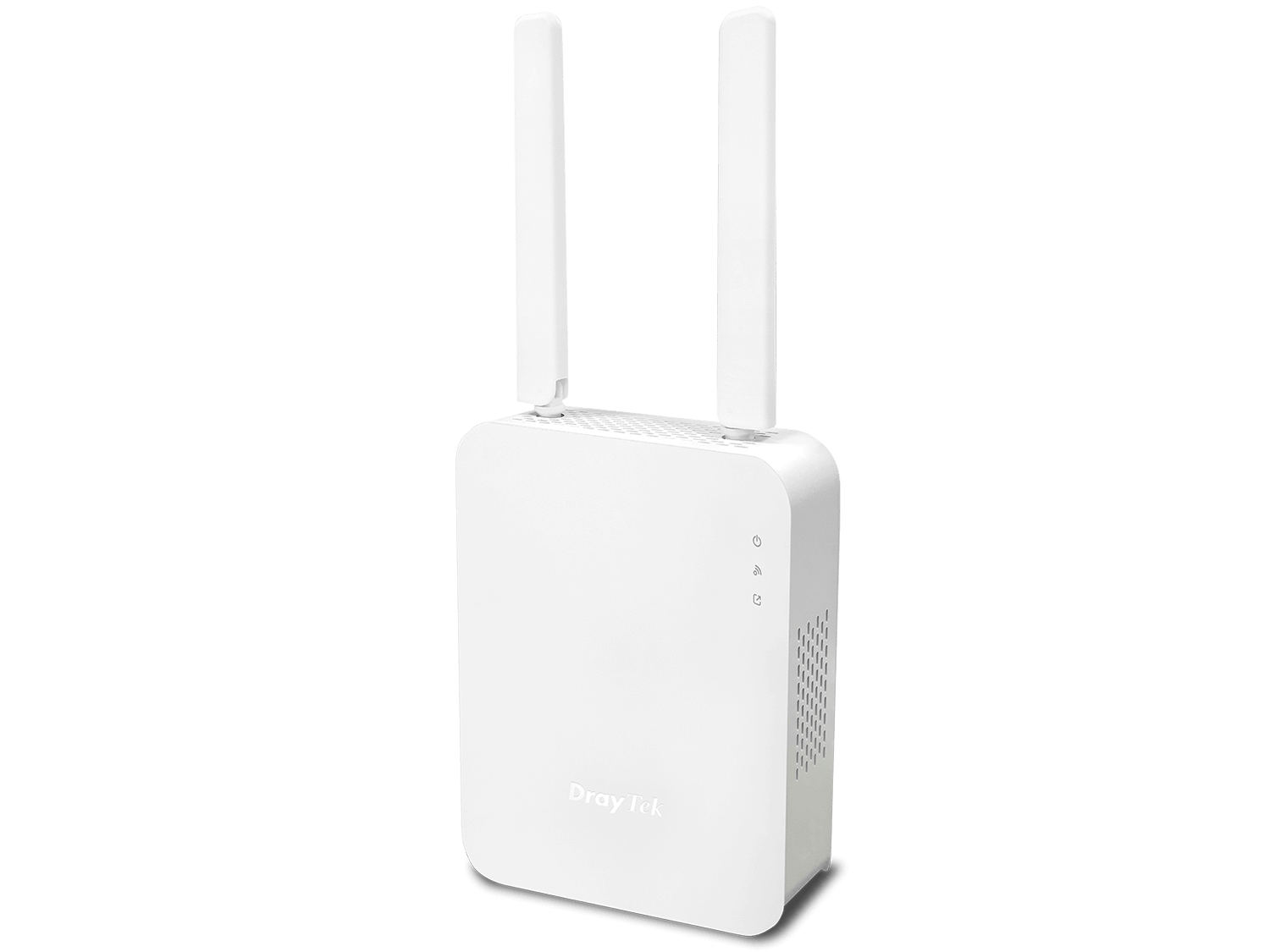

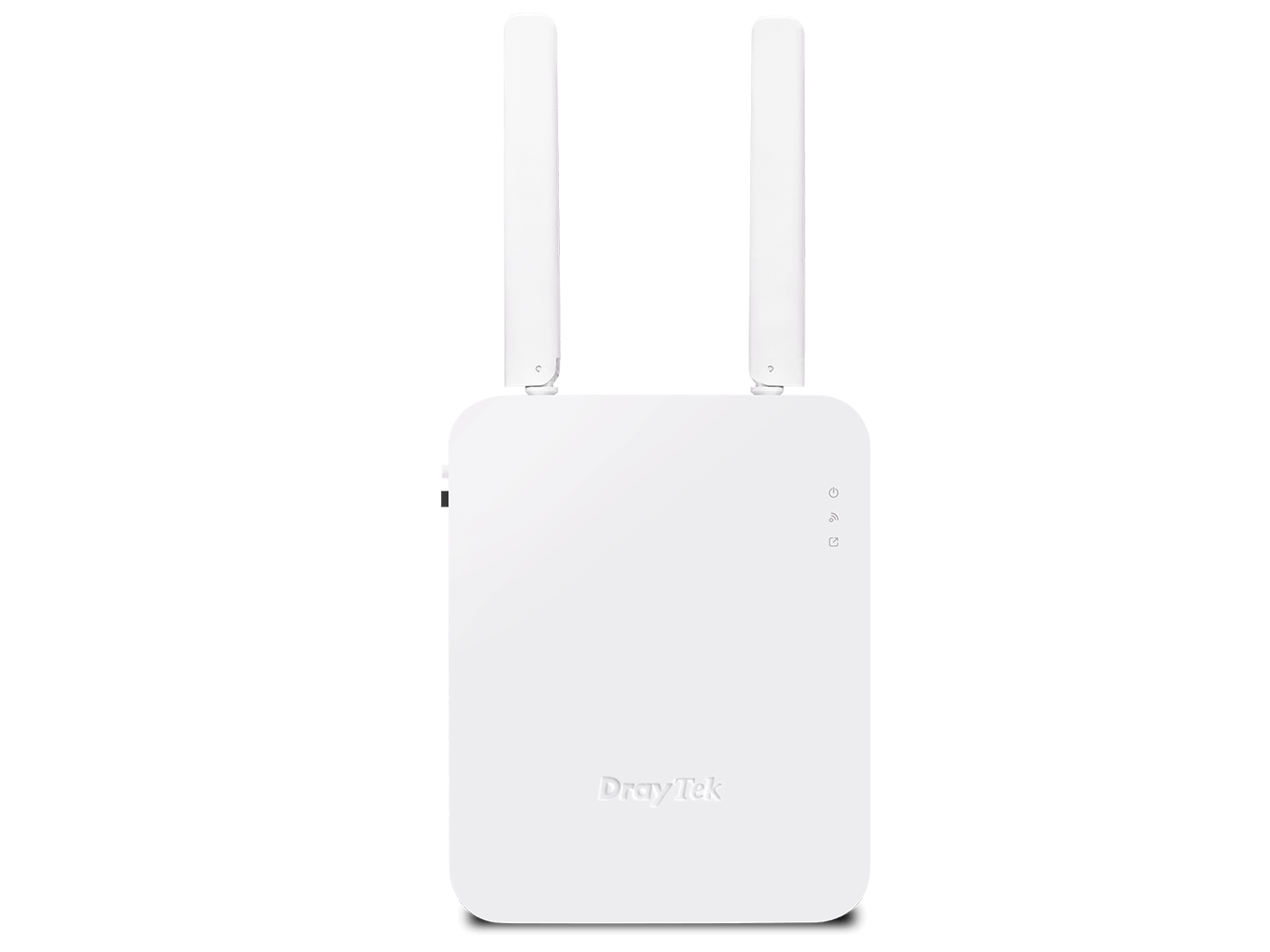

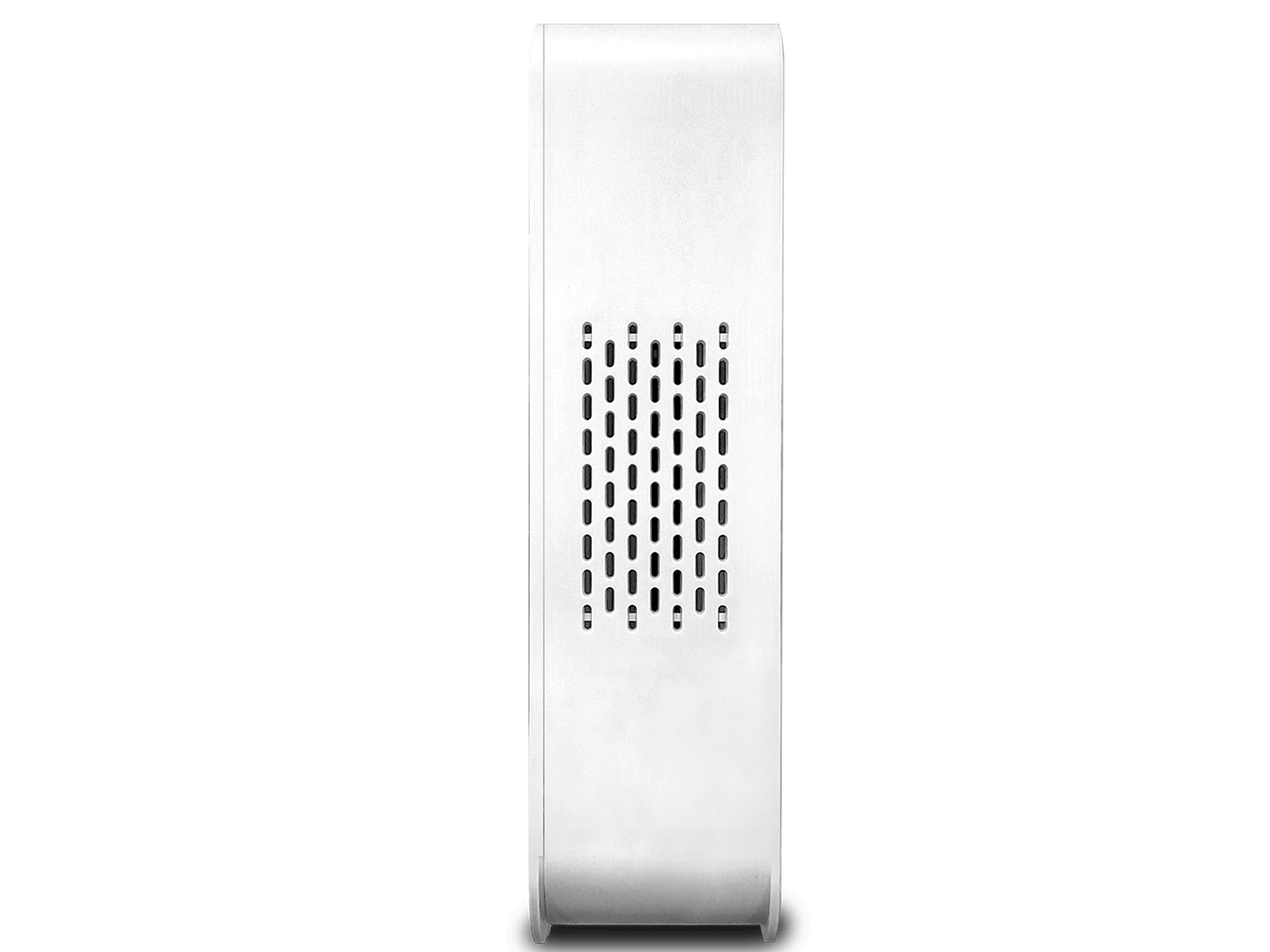

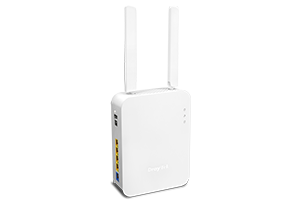

VigorAP 906

2x2 Dual Band WiFi 6 AP

- WiFi 6  Dual-Band
- Maximum Data Rate: 3 Gbps
- Wall / Desktop


Overview

WiFi 6 Wall-Mount/Desktop AP

VigorAP 906 is 11ax wall-mount/desktop wireless access point with a 5-port LAN switch. With wire-liked link rate up to 2402 Mbps in 5GHz band and up to 574 Mbps in 2.4GHz band, it’s suitable for high density environments. It can be cloud-managed by VigorACS*, and also act as the mesh Root AP to manage up to 7 mesh node APs in LAN







Three modes in one





Utilize Transmission Opportunity with OFDMA

OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.

Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.

OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.

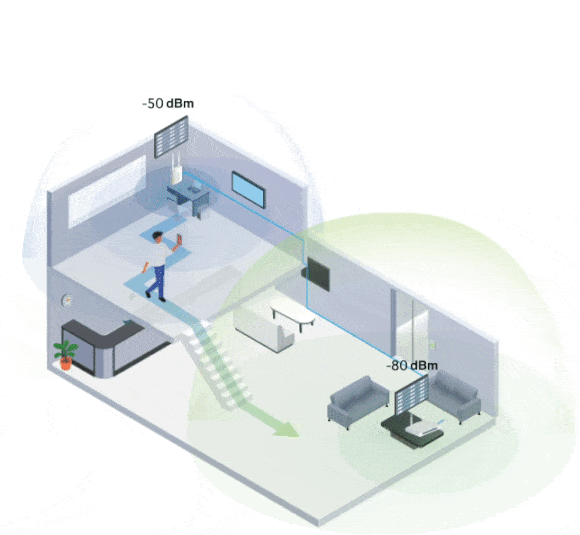

AP-assisted Roaming





Proactive Roaming

WiFi clients automatically hand-off to another AP/Router with a better signal strength when moving around in an area with multiple APs/Routers.

However, WiFi clients sometimes stick to the AP/Router with weak signal, and not switching to the one with better signal.

Assisted Roaming

VigorAP will disassociate the WiFi clients who are out of the effective transmission range, forcing them to pick up another AP/Router with a stronger signal.

Stronger Signal Guaranteed

Furthermore, with "Minimum RSSI with Adjacent AP" option, VigorAP can disassociate the client only when other AP/router has a stronger wireless signal, and keep client stayed when there’s no other AP/Router nearby.





Specs

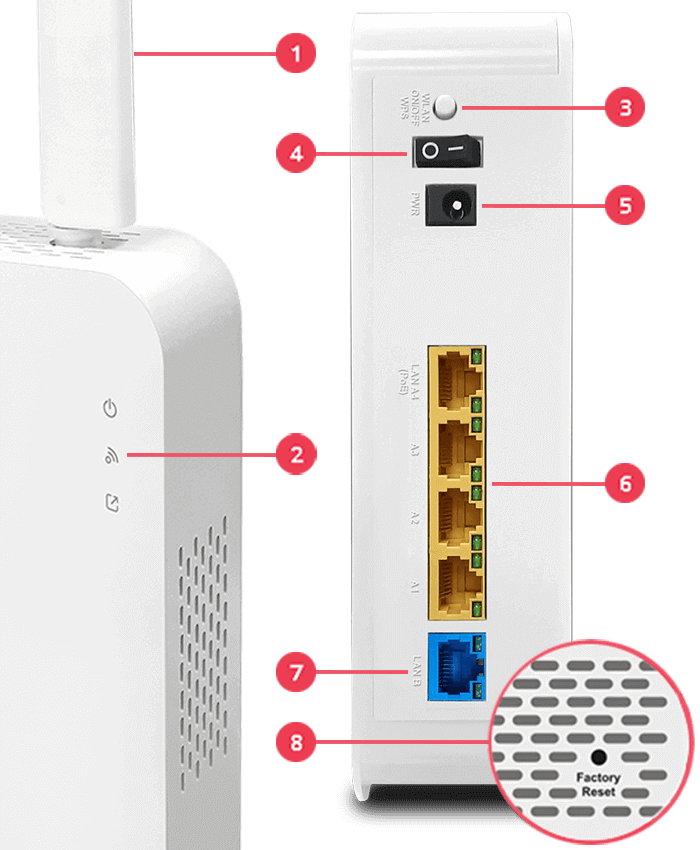

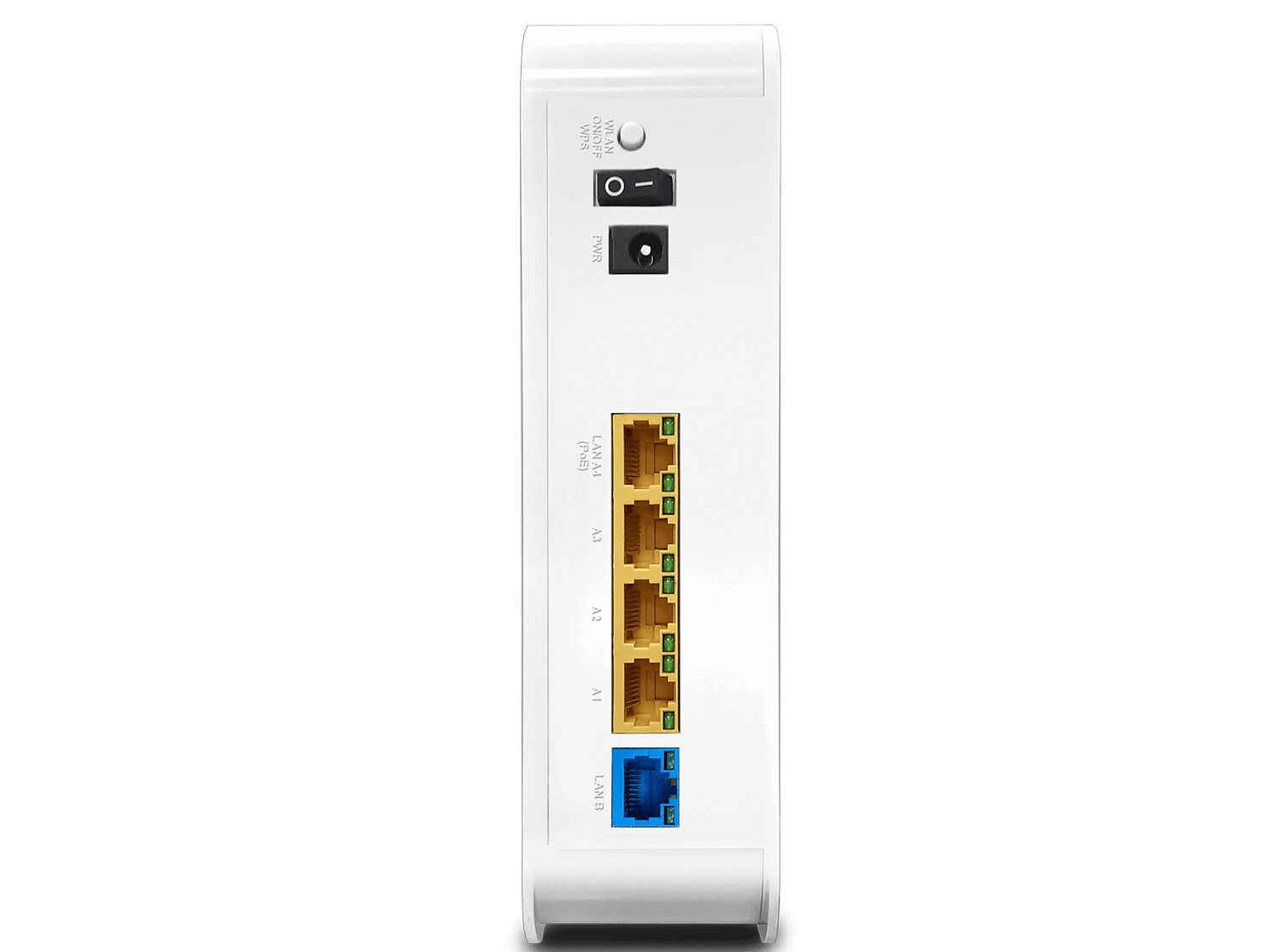

Interface
LAN Port 5x 10/100/1000M Base-T, RJ-45 (PoE+)
Antennas 2x External dipole DB
Button 1x Factory Reset Button
DC Power Jack 1
Security Lock 1
Capacity
2.4GHz Peak Speed 574 Mbps
5GHz Peak Speed 2402 Mbps
Max. Number of Concurrent Active Clients 127 (128 per radio band)
WLAN
2.4GHz Standard IEEE 802.11b/g/n/ax 2x2 MIMO
5GHz Standard IEEE 802.11a/n/ac Wave 2/ax 2x2 MU-MIMO
Operating Mode AP, Mesh Root, Mesh Node.
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness Yes
Band Steering Yes
OFDMA Yes
Max. Number of SSID 8 (4 per radio band)
WDS Yes Repeater
Client Numer Limit Per radio, Per SSID
WMM Yes
Security
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
WPS PIN, PBC
Hidden SSIDs Yes
MAC Address Filter Up to 256 entries
Wireless Client Isolation Yes

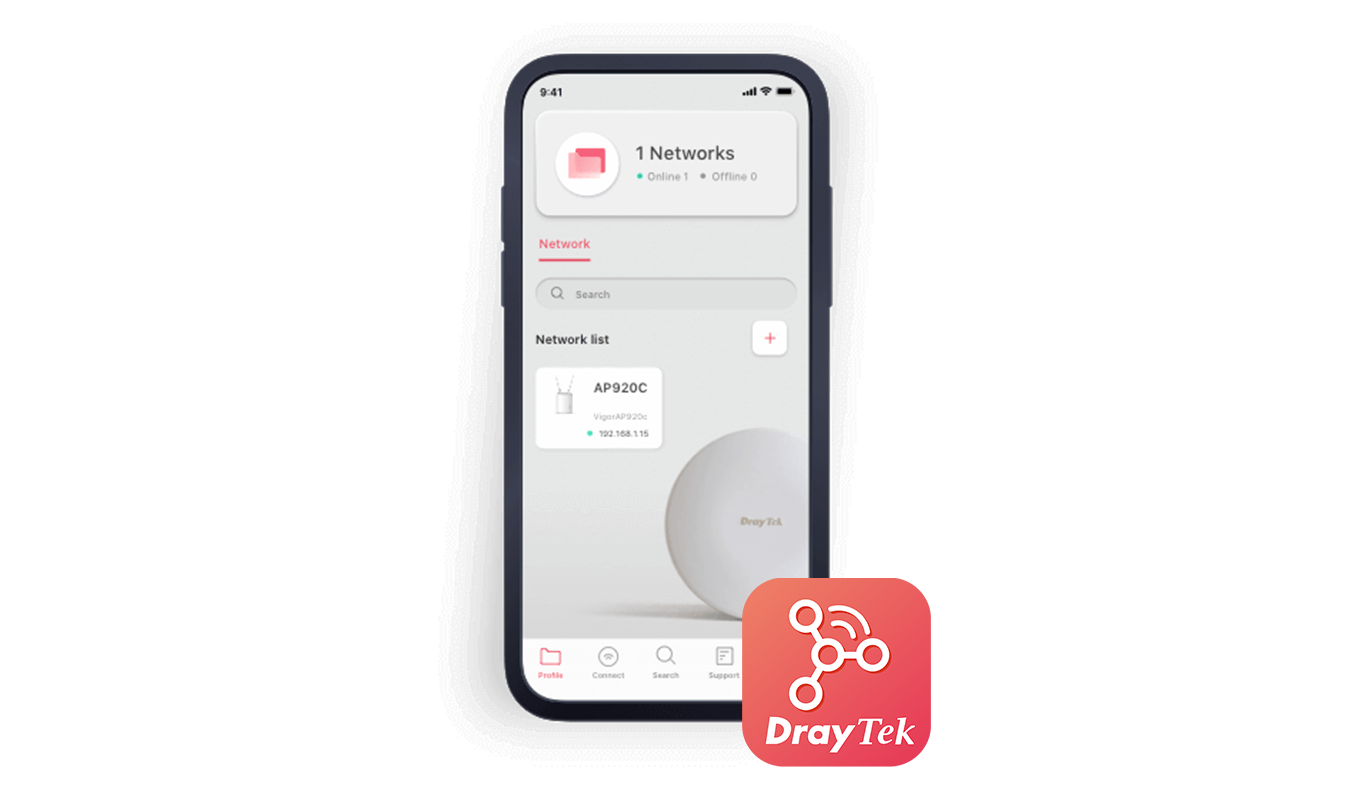

Mobile Device Management Yes
Application
Built-in RADIUS Server Yes
RADIUS Proxy PEAP, EAP-TLS
Hotspot Web Portal Yes
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP Yes
MAC Clone Yes
802.1q VLAN Yes
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, Interference Monitor
Configuration Backup and Restore Yes
Syslog Yes
Notification Alert Yes
SNMP v1, v2c, v3
Mesh Node, Root
Mobile Device Management Yes
Managed by VigorACS Yes
Central AP Management Up to 30 VigorAP
Physical
Environment Indoor
Mounting Desktop, Wall Mount
Power Method DC 12V @ 1,5 A / 802.3af PoE
Max. Power Consumption 17.3 watts
Dimension 194 mm x 155 mm x 50 mm
Weight 680 g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity 10 to 90% non-condensing
Notes :
  • All specifications are subject to change without notice.

  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
