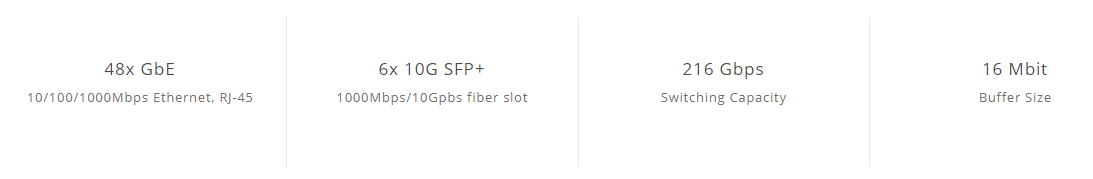

54-Port Layer 2+ Managed 10G Switch



  • 48 GbE ports
  • 6 10G fiber SFP+
  • L2+ Managed
  • 216G Switching Capacity
  • 1U Rackmount

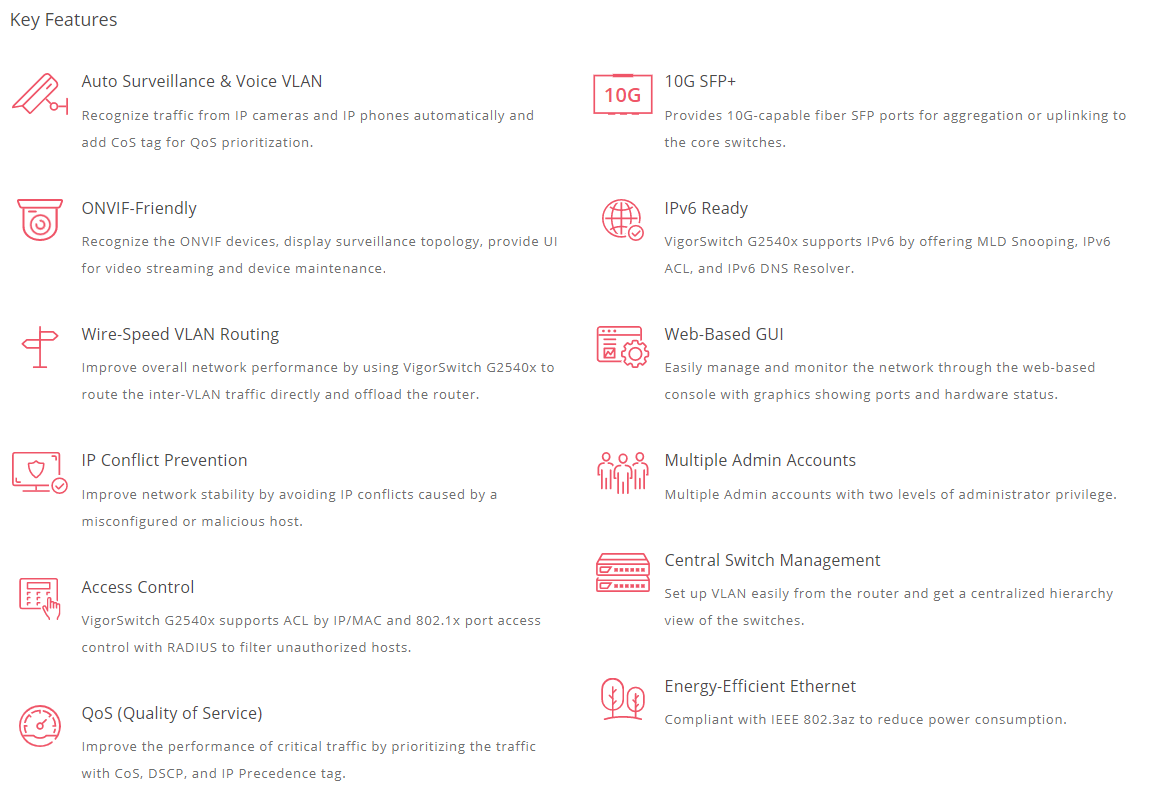

Overview

Providing excellent Network efficiency

DrayTek VigorSwitch G2540x is a Layer 2+ Managed 10 Gbps switch. It has 48x Gigabit Ethernet ports and 6 x SFP+ 10Gbps Fiber links. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, VigorSwitch G2540x improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.





Specs
Interface
LAN Port 48x 10/100/1000Mbps Ethernet, RJ-45
6x 1000Mbps/10Gbps SFP+
Console Port 1x RJ-45
Button 1x Factory Reset Button
Capacity
Buffer Size 16 Mbit
Switching Capacity 216 Gbps
Forwarding Rate 160.7 Mpps (64 bytes)
MAC Address Table 32k
Jumbo Frame Up to 12 KB
L3 Routing Table Max. 2k
Networking Standards
IP Version IPv4, IPv6
Ethernet Standards 802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
IEEE802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN
Port Isolation
GVRP
Q-in-Q Basic
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast
IGMP Snooping v2, v3 (BISS)
IGMP Querier
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Layer 3 Features
Static Route
VLAN Route
DHCP Server
AAA
Authentication Server RADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute Assignment User Privilege, VLAN
Accounting
Multiple Server
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow
SNMP v1, v2c, v3
Private MIB
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog
2-Level Admin Privilege
Multiple Admin Accounts
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 2
Config File Export/Import
Dual Image
SNTP (Simple Network Time Protocol)
Diagnostics Tools Port Mirroring, Ping, Cable Test
Physical

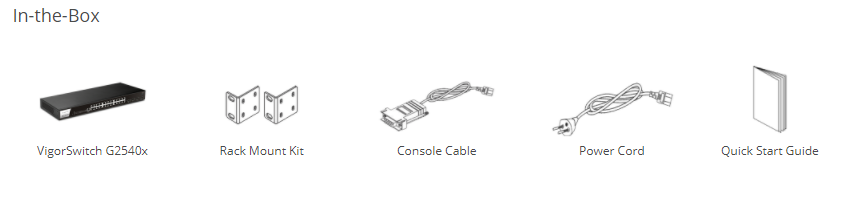

19-inch Rack Mountable Mouting Kit Included
Power Input AC 100-240V @ 2A
Max. Power Consumption 52 watts
Dimension (mm) 441(W) x 270(D) x 45(H)
Weight 3.97 kg (8 lb)
Ventilation Variable-speed Fan
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Certificate CE
Notes :
  • All specifications are subject to change without notice.

  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
