2x2 Dual Band 802.11ax Ceiling AP



- 11ax Dual-Band
- Maximum Data Rate: 1.8 Gbps
- Wall/Ceiling Mount


Overview

Lightweight AP with Pro performance

VigorAP 960C is an 11ax ceiling-mount wireless access point. With wire-liked speed up to 1.2 Gbps in 5GHz band and 600Mbps in 2.4GHz, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the mesh Root AP to manage up to 7 mesh node APs in LAN.

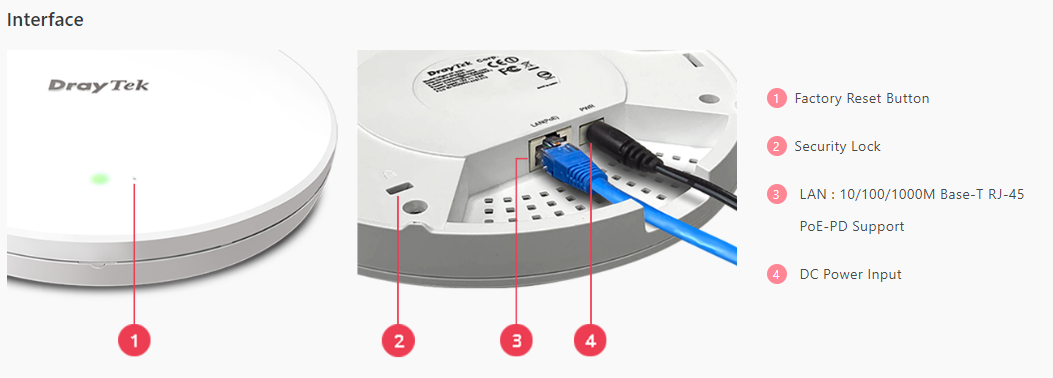

Interface



Utilize Transmission Opportunity with OFDMA

OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.

Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.

OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.



                            OFDM                                                     OFDMA



AP-assisted Roaming

Making Transmission Effective

Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.

Resource Saving

Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.

No Controller Required

Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.



Specs

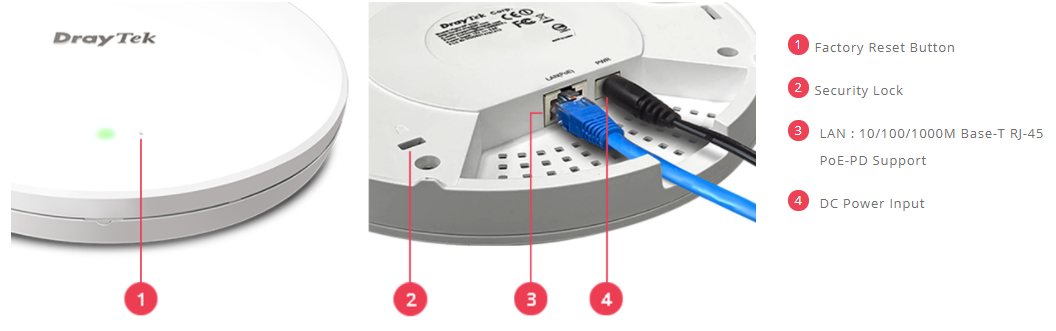

Interface
LAN Port 1x 10/100/1000M Base-T, RJ-45 (PoE-PD Support)
Antenna 2x Internal PiFA Dual-Band
Gain: 3 dBi for 5GHz, 1.3 dBi for 2.4GHz
Button 1x Factory Reset Button
DC Power Jack 1
Security Lock 1
Capacity
2.4GHz Peak Speed 600 Mbps
5GHz Peak Speed 1200 Mbps
Max. Number of Concurrent Active Clients 256 (128 per radio band)
WLAN
2.4GHz Standard IEEE 802.11b/g/n/ax 2x2 MIMO
5GHz Standard IEEE 802.11a/n/ac Wave 2/ax 2x2 MU-MIMO
Operating Mode AP, Mesh Root, Mesh Node, Range Extender
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID 8 (4 per radio band)
WDS
Client Numer Limit Per radio, Per SSID
Connection Time Control
WMM
Security
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
WPS PIN, PBC
Hidden SSIDs
MAC Address Filter Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Application
Built-in RADIUS Server
RADIUS Proxy PEAP, EAP-TLS
Hotspot Web Portal
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, Interference Monitor
Configuration Backup and Restore
Syslog
Mail Alert
SNMP v1, v2c, v3
Managed by VigorConnect
Managed by VigorACS
Central AP Management 30 VigorAP
Physical
Environment Indoor
Mounting Ceiling Mount, Wall Mount
Power Method DC 12V @ 1A / 802.3af PoE
Max. Power Consumption 11 watts
Dimension 178 mm x 178 mm x 35 mm
Weight 380 g
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 90% non-condensing
Certificate CE FCC NCC
Notes :
  • All specifications are subject to change without notice.

  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
